PLAN #117-119

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

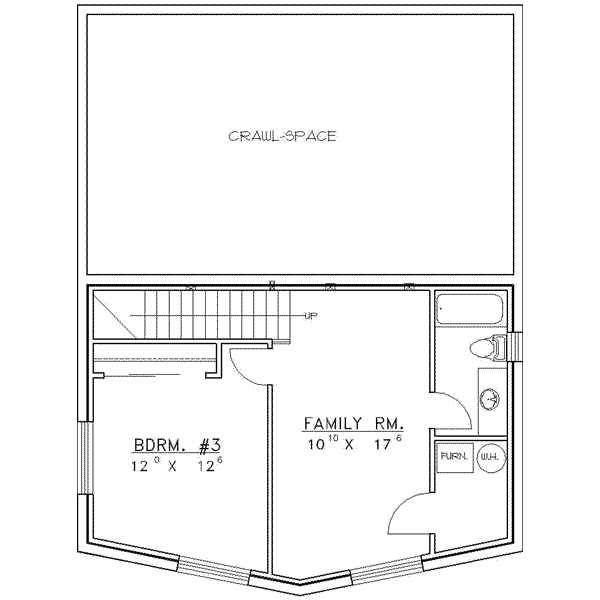

Floor Plan - Lower Floor Plan

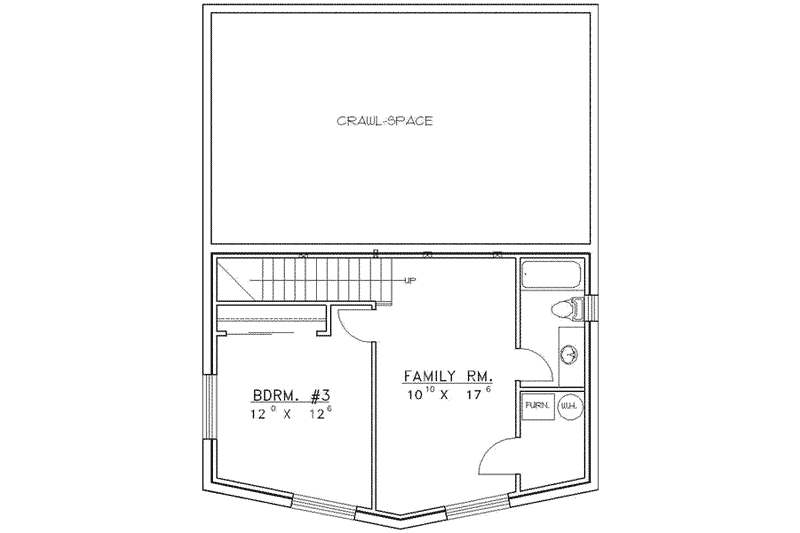

Log Floor Plan - Lower Floor Plan Plan #117-119

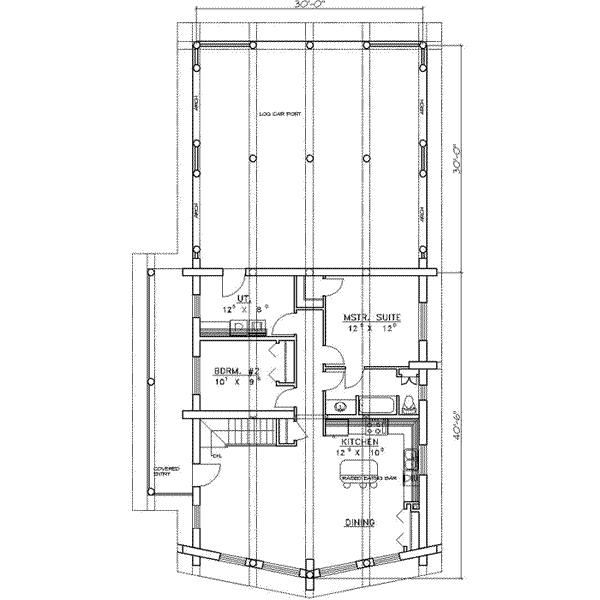

Floor Plan - Main Floor Plan

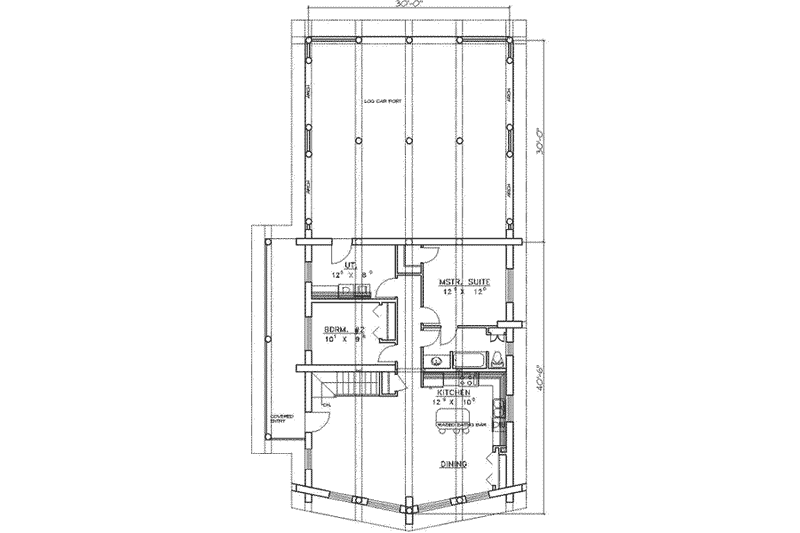

Log Floor Plan - Main Floor Plan Plan #117-119

Full Specs & Features

Depth : 70'
Height : 18'
Width : 30'
Basement Living: 630 sq/ft height 9'
First Floor: 1155 sq/ft height 9'
Garage: 900 sq/ft
Exterior Wall Framing
Framing : Log
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Family Room Keeping Room
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Suited For Vacation Home

Bedroom 2:

90 sq/ft width 10' 1" x depth 9'

Bedroom 3:

150 sq/ft width 12' x depth 12' 6"

Family Room:

189 sq/ft width 10' 10" x depth 17' 6"


127 sq/ft width 12' 9" x depth 10'

Master Suite:

150 sq/ft width 12' 6" x depth 12'

Master Suite:

153 sq/ft width 12' 9" x depth 12'

Utility Room:

99 sq/ft width 12' 5" x depth 8'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
