PLAN 929-242
Key Specs
1787
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 929-242
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
Full Specs & Features
Height : 24'
Width : 66' 2"
First Floor: 1787 sq/ft height 8'
Roof Framing : Conventional
Framing : Wood - 2x4
Formal Dining Room
Covered Rear Porch
3rd BR Closet:
22 sq/ft width 3' 8" x depth 6'
Bathroom 2:
45 sq/ft width 9' 2" x depth 5'
Bedroom 2:
118 sq/ft width 10' 6" x depth 11' 4"
Bedroom 2 Closet:
14 sq/ft width 2' x depth 7' 4"
Bedroom 3:
140 sq/ft width 11' 8" x depth 12'
Bedroom 3 Closet:
14 sq/ft width 2' x depth 7' 4"

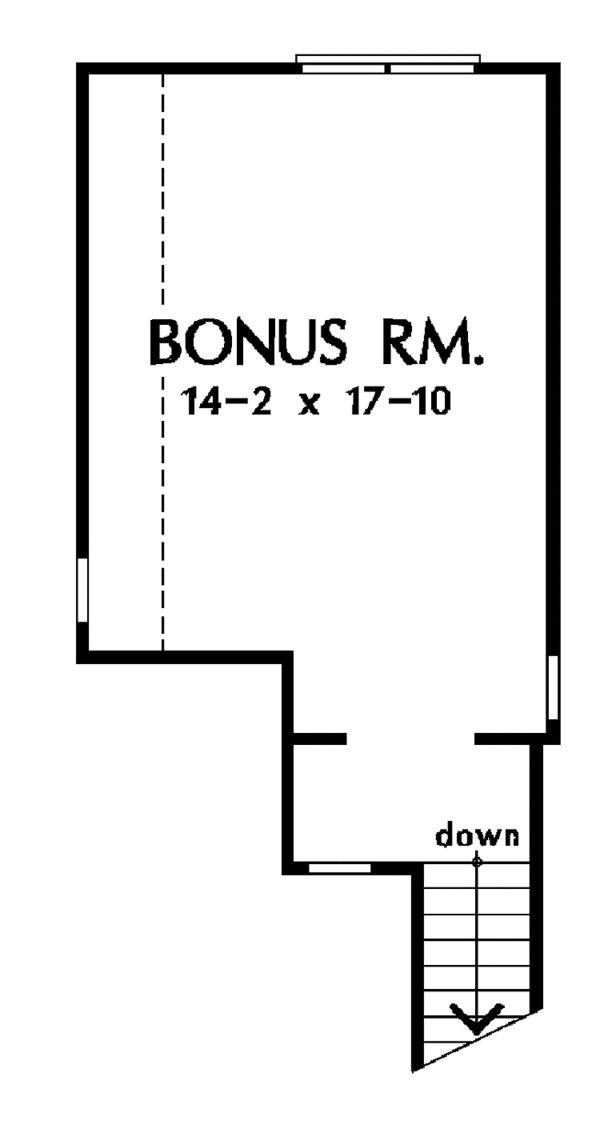

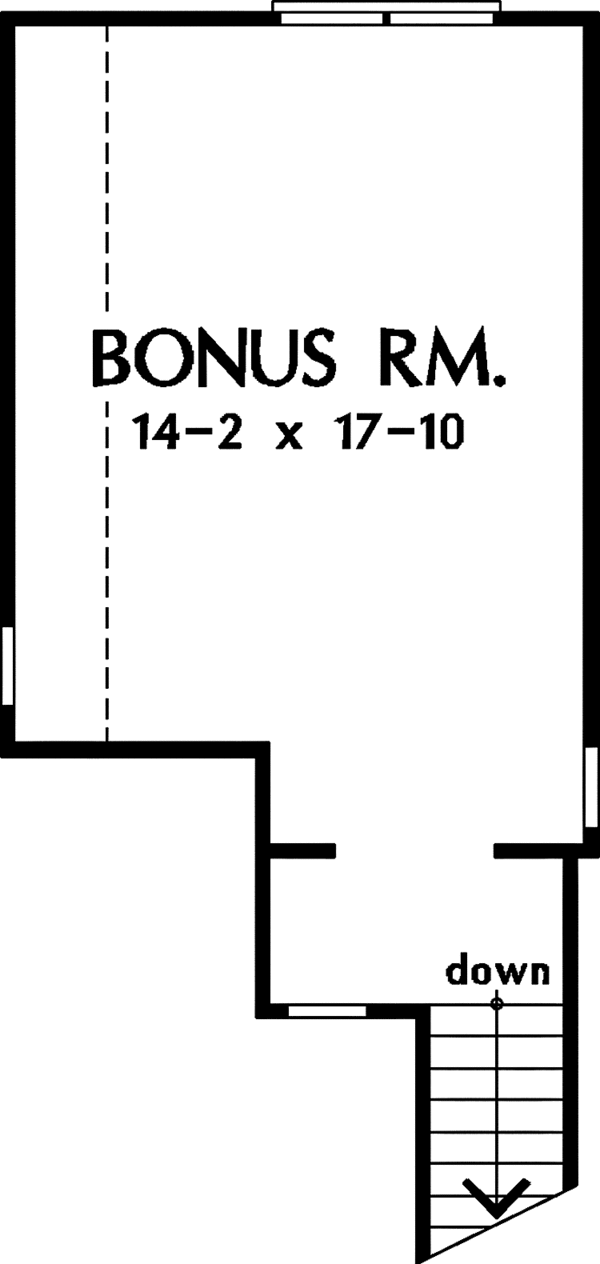

Bonus Room - Finished:
252 sq/ft width 14' 2" x depth 17' 10"
Breakfast Room:
80 sq/ft width 8' 6" x depth 9' 6"
Foyer:
34 sq/ft width 7' 4" x depth 4' 8"
Garage:
494 sq/ft width 20' 4" x depth 24' 4"
Gathering Room:
306 sq/ft width 14' 6" x depth 21' 2"
Hall Closet:
7 sq/ft width 3' 4" x depth 2' 4"
Kitchen:
141 sq/ft width 10' 6" x depth 13' 6"
Master Bathroom:
88 sq/ft width 8' 4" x depth 10' 8"
Master Bedroom:
187 sq/ft width 12' 4" x depth 15' 2"
Master Closet:
39 sq/ft width 8' 2" x depth 4' 10"
Porch - Front:
164 sq/ft width 26' x depth 6' 4"
Porch - Left:
110 sq/ft width 6' 4" x depth 17' 6"
Utility Room:
70 sq/ft width 8' x depth 8' 10"
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

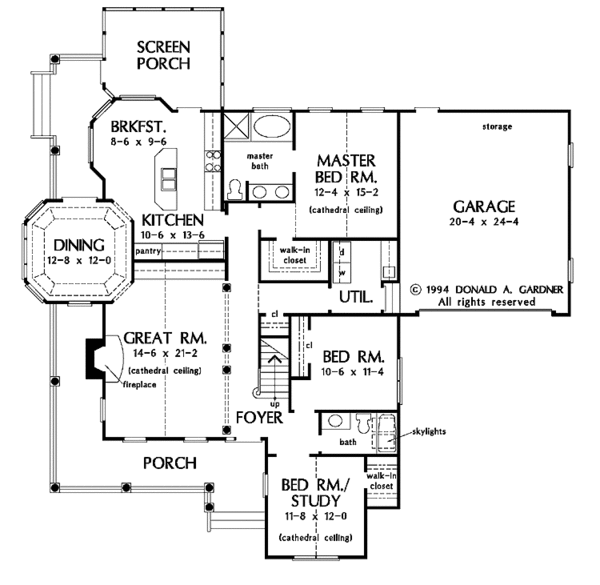

- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
