PLAN #140-180

Key Specs


1789
sq ft

1
Beds

2
Baths

3
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

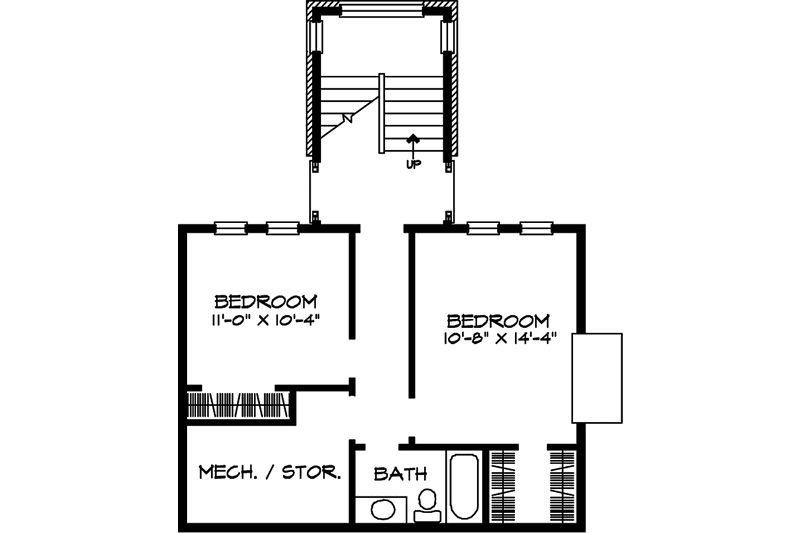

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

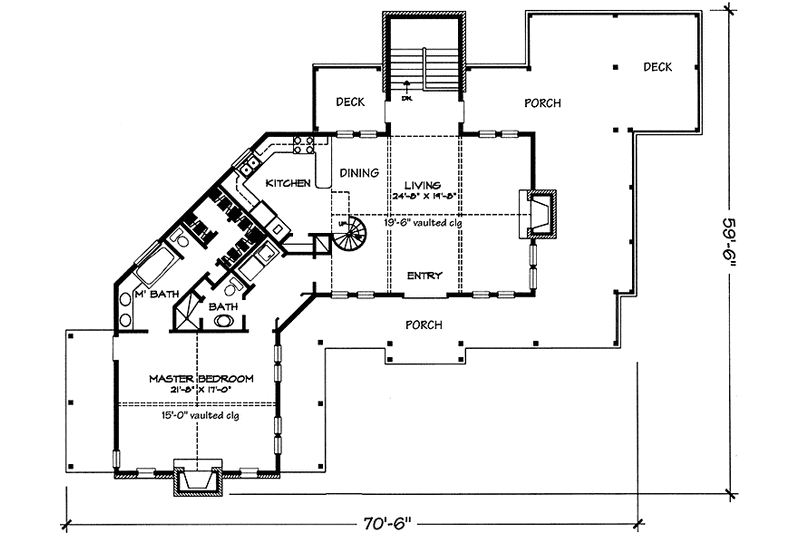

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

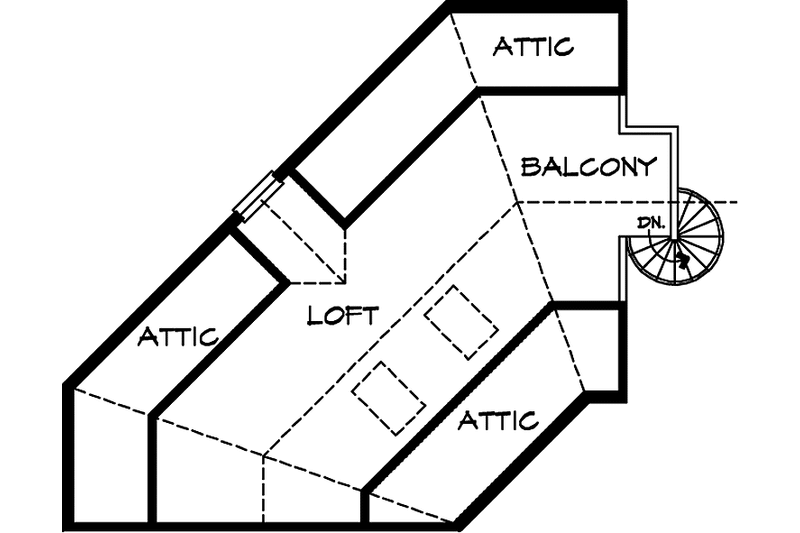

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Lower Floor : 702 sq/ft
Main Floor : 1472 sq/ft
Upper Floor : 317 sq/ft
Bedroom Features Walk In Closet
Fireplace
Kitchen Features Breakfast Nook
Outdoor Spaces Covered Front Porch
Loft Balcony

What's Included In This Plan Set


Charles Roccaforte & Assoc

  • Cover page

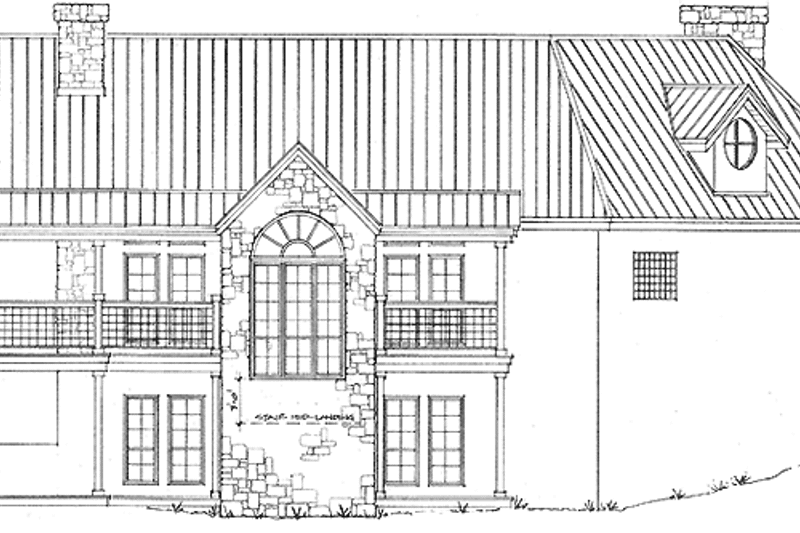

  • Elevations set to 3/16" scale
  • Dimensioned Floor plans set to 3/16" scale
  • Roof plan: Overhead plan shows peaks, valleys and roof pitch
  • Building Sections Interior Elevations: Cabinet and millwork details.
  • Electrical floor plan layout
  • Foundation plan
  • General notes and details.
» See important information before purchasing.
Plan Set
5 Copy Set :
$604.00
5 printed plan sets mailed to you.
8 Copy Set :
$692.00
8 printed plan sets mailed to you.
PDF Set :
$851.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set :
$544.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Additional Construction Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
