PLAN 46-809

Key Specs

1791
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This highly efficient layout packs in luxurious amenities, including decorative ceiling treatments in the great room and master suite, a cozy corner fireplace, and an open island kitchen with a snack bar. In the sleeping wing, the master bedroom boasts a corner tub, walk-in closet, and private access to the back covered porch. Two family bedrooms down the hall share another bath. Brick and siding bring classic style to the exterior.

Floor Plans

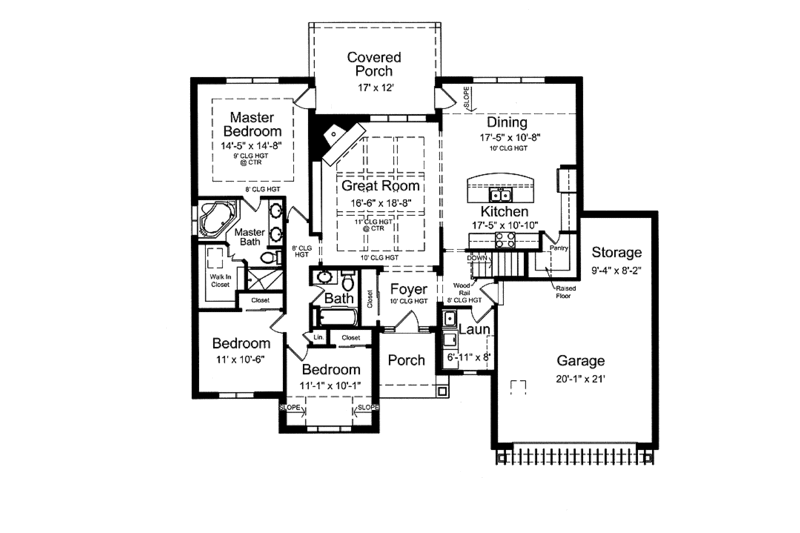

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 55' 1"
Height : 24' 3"
Width : 60'

Area

Basement Unfinished: 1791 sq/ft
First Floor: 1791 sq/ft height 8'
Garage: 496 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4

Bedroom Features

Fireplace
Main Floor Master Bedroom

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry

Outdoor Spaces

Covered Rear Porch

Rooms

Bedroom 2:

115 sq/ft width 11' x depth 10' 6"

Bedroom 3:

111 sq/ft width 11' 1" x depth 10' 1"

Covered Porch:

204 sq/ft width 17' x depth 12'

Dining Room:

185 sq/ft width 17' 5" x depth 10' 8"

Garage:

421 sq/ft width 20' 1" x depth 21'

Garage Storage:

76 sq/ft width 9' 4" x depth 8' 2"

Great Room:

308 sq/ft width 16' 6" x depth 18' 8"

Kitchen:

188 sq/ft width 17' 5" x depth 10' 10"

Laundry Room:

55 sq/ft width 6' 11" x depth 8'

Master Bedroom:

211 sq/ft width 14' 5" x depth 14' 8"

What's Included In This Plan Set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

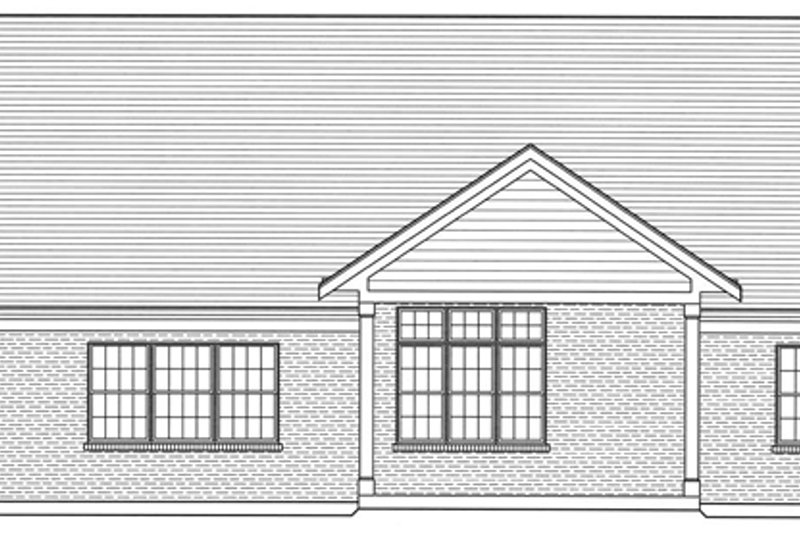

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
Fireplace detail shows how the fireplace is to be built.
Wall section shows typical framing detail of house.

» See important information before purchasing.

Plan Set

PDF Set : $850.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $850.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set : $900.00	5 printed plan sets mailed to you.
8 Copy Set : $950.00	8 printed plan sets mailed to you.
CAD Set : $1320.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $350.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement: $350.00	Ideal for sloping lot, lower level of home partially underground.
Slab: $350.00	Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4

Additional Options

Right-Reading Reverse : $115.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $75.00	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $25.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
