PLAN 46-458
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
This charming one level home offers an exterior of stone and siding,
showcasing a colorful facade. An open Great Room with a gas fireplace,
and raised ceiling combine with the Dining and Kitchen areas to create a
wonderful gathering space with a view to the rear yard and easy access
to a delightful covered porch. A breakfast bar at the Kitchen and a
walk-in pantry are exceptional amenities. Split bedrooms offer privacy
to the master Suite which features a center ceiling height of 10', a
double bowl vanity, a shower enclosure and large walk-in closet. Open
stairs to a full basement offers easy access to future additional square
footage.
Full Specs & Features
Dimension
Depth : 65' 6"
Height : 21'
Width : 48'
Height : 21'
Width : 48'
Area
First Floor: 1809 sq/ft height 9'
Garage: 491 sq/ft
Garage: 491 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Main Floor 9'1"Garage Floor 10'5"
Garage Ceiling : 10'
Main Ceiling : 9'
Garage Ceiling : 10'
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : shingles
Secondary Pitch : 6:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : shingles
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : stone & siding
Framing : 2"x4"
Insulation : R15 Walls, R38 Ceiling
Framing : 2"x4"
Insulation : R15 Walls, R38 Ceiling
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Storage Area
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch

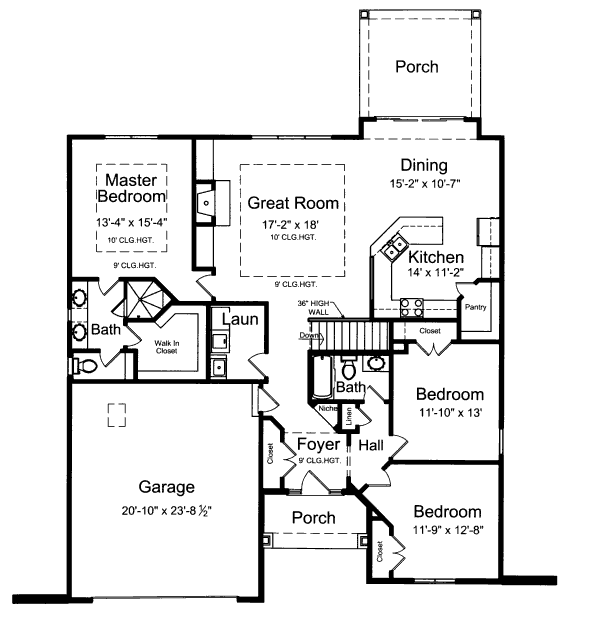

Rooms
Bedroom 2:
148 sq/ft width 11' 9" x depth 12' 8"
Bedroom 2 Closet:
13 sq/ft width 2' 1" x depth 6' 6"
Bedroom 3:
153 sq/ft width 11' 10" x depth 13'
Bedroom 3 Closet:
186 sq/ft width 7' 2" x depth 26' 1"
Breakfast Nook:
158 sq/ft width 15' x depth 10' 7"
Garage:
493 sq/ft width 20' 10" x depth 23' 8"
Great Room:
331 sq/ft width 18' 5" x depth 18'
Hall Bathroom:
43 sq/ft width 8' 8" x depth 5'
Hall Closet:
15 sq/ft width 2' 1" x depth 7' 8"
Kitchen:
156 sq/ft width 14' x depth 11' 2"
Laundry Room:
51 sq/ft width 6' 2" x depth 8' 4"
Linen Closet:
5 sq/ft width 1' 8" x depth 3'
Master Bathroom:
44 sq/ft width 5' 10" x depth 7' 7"
Master Bedroom:
204 sq/ft width 13' 4" x depth 15' 4"
Master Walk-In Closet:
63 sq/ft width 7' 8" x depth 8' 4"
Pantry:
28 sq/ft width 4' 4" x depth 6' 6"
Porch - Front:
69 sq/ft width 11' 6" x depth 6'
Porch - Rear:
170 sq/ft width 14' 2" x depth 12'
Toilet Closet:
21 sq/ft width 6' 10" x depth 3' 1"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $895.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $895.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy and PDF Set : $950.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 8 Copy Set : $950.00 |
8 printed plan sets mailed to you. |
| Eight Copy and PDF Set : $995.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $1350.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Additional Options
| Right-Reading Reverse : $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List : $75.00 |
A list of building supplies needed to construct the infrastructure of your new house for the standard plan. Please note materials list will not reflect optional add-ons such as foundation and framing. |
| Mirror Reversed Sets : $25.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
