PLAN 42-538

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

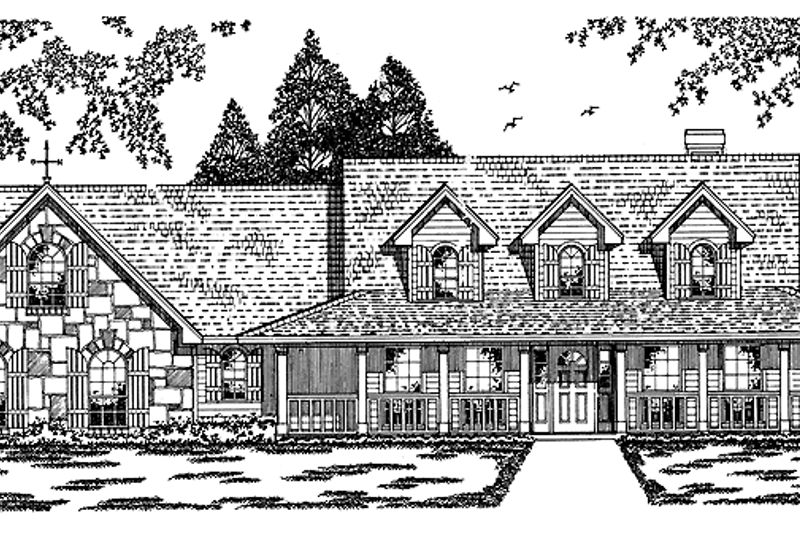

This exterior is defined by a wraparound veranda, three dormers directly above, and a side-load garage with a facade of stone masonry and three pretty, arched and shuttered windows. The main entry is flanked by the secondary bedroom and a formal dining room. Bedroom 2 shares a full hall bath with Bedroom 3, in the rear corner. Directly opposite the entry is the great room, with sloped ceilings and a bay Palladian window, allowing a profusion of natural light during the day. Built-in cabinets above the hearth await books, or sight-and-sound systems. French doors provide access to an ambient covered patio. The kitchen and breakfast room lie to the left, with a handy breakfast bar extending into the great room. A master suite with coffered ceiling and angled bath is secreted around the corner. A bonus staircase to an attic is located at the entrance to the suite.

Floor Plans

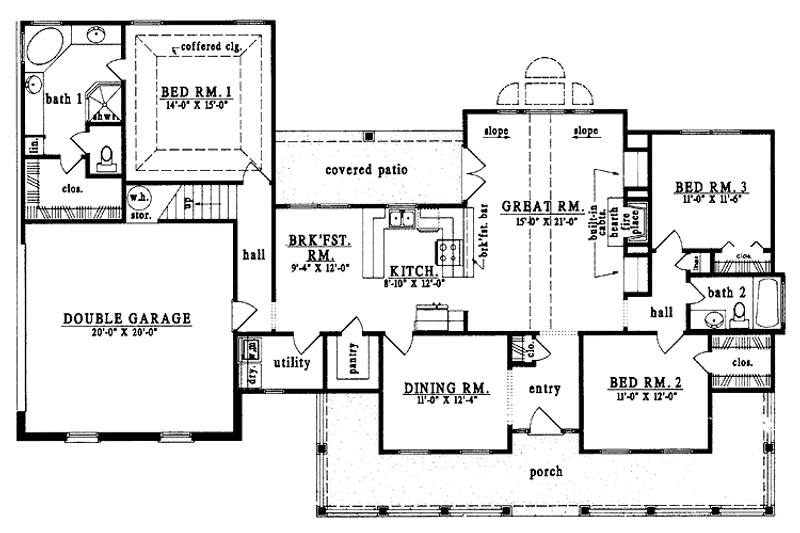

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #42-538

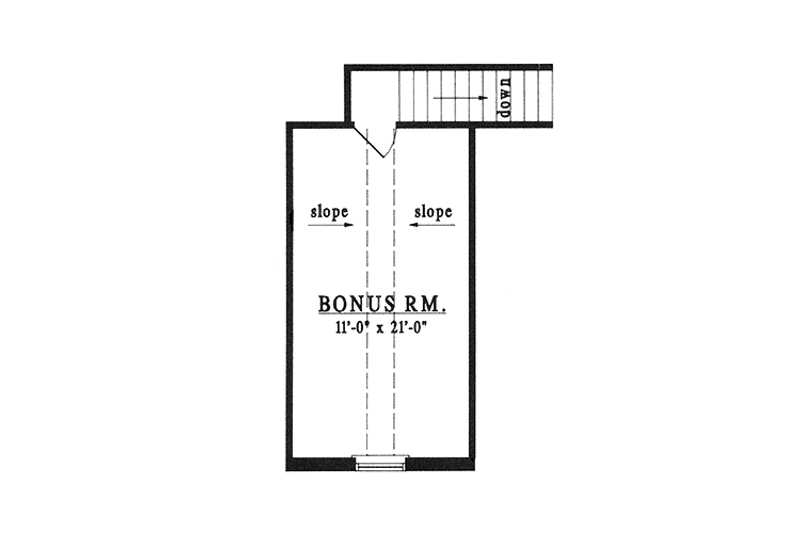

Floor Plan - Upper Floor Plan
Ranch Floor Plan - Upper Floor Plan Plan #42-538
Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #42-538

Full Specs & Features

Depth : 47' 5"
Width : 73' 6"
Bonus: 239 sq/ft
First Floor: 1813 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch

3rd BR Closet:

12 sq/ft width 2' x depth 6'

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 2 Closet:

30 sq/ft width 5' x depth 6'

Bedroom 3:

126 sq/ft width 11' x depth 11' 6"

Bedroom 3 Closet:

30 sq/ft width 5' x depth 6'

Bonus Room - Finished:

231 sq/ft width 11' x depth 21'

Breakfast Room:

111 sq/ft width 9' 4" x depth 12'

Dining Room:

135 sq/ft width 11' x depth 12' 4"


77 sq/ft width 7' x depth 11'


400 sq/ft width 20' x depth 20'

Garage Storage:

22 sq/ft width 3' 8" x depth 6'

Gathering Room:

315 sq/ft width 15' x depth 21'

Hall Bathroom:

45 sq/ft width 5' x depth 9'

Hall Closet:

5 sq/ft width 2' x depth 2' 6"


105 sq/ft width 8' 10" x depth 12'

Master Bathroom:

140 sq/ft width 10' x depth 14'

Master Bedroom:

210 sq/ft width 14' x depth 15'

Master Closet:

60 sq/ft width 6' x depth 10'

Porch - Front:

312 sq/ft width 6' x depth 52'

Porch - Rear:

142 sq/ft width 7' 6" x depth 19'

Utility Room:

49 sq/ft width 5' 6" x depth 9'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
