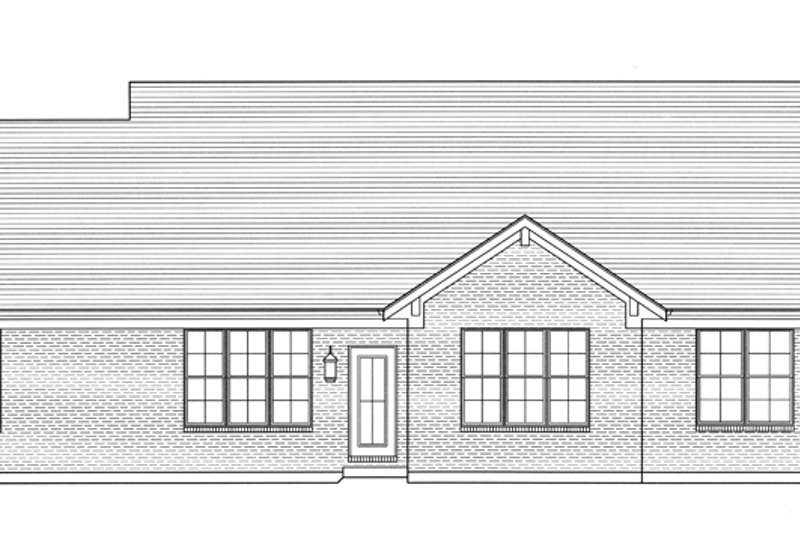

Craftsman Exterior - Rear Elevation Plan #46-836

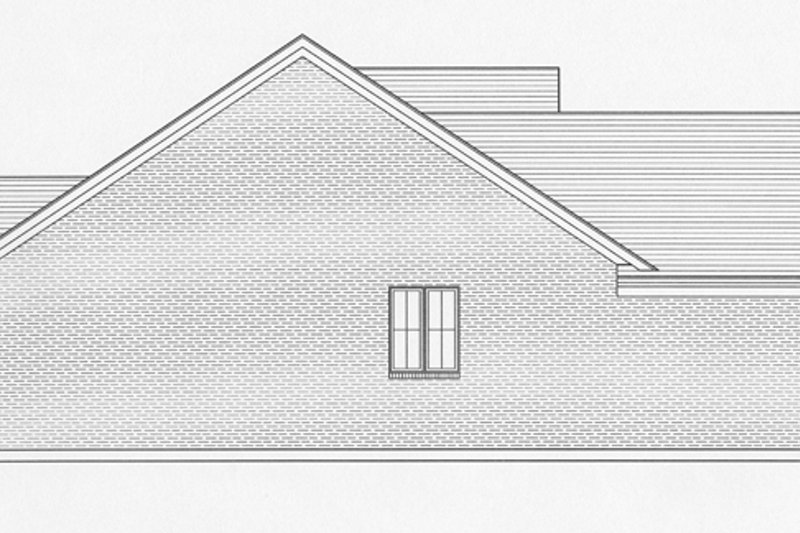

Craftsman Exterior - Other Elevation Plan #46-836

Select Plan Set Options

What's included?

	Right-Reading Reverse $103.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $45.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $22.50 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $765.00

You save $85.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 46-836

Key Specs

1818
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Here's a lovely one-story home with some surprising details, like the two-way fireplace that warms the great room and the study. Living spaces are open and relaxed, with space for meals at the kitchen's island and in the dining nook. Alone in the left side, the master suite showcases a walk-in closet and a bathroom with a double bowl vanity, separate shower, and whirlpool tub. Two more bedrooms share a full bath on the opposite side.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

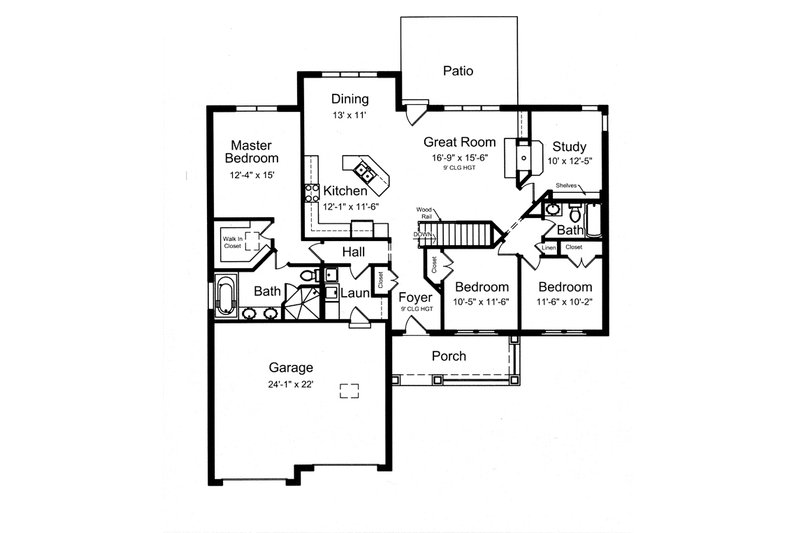

Craftsman Floor Plan - Main Floor Plan Plan #46-836

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Other Floor Plan

Reverse

Craftsman Floor Plan - Other Floor Plan Plan #46-836

Full Specs & Features

Dimension

Depth : 57' 9"
Height : 24' 4"
Width : 55' 10"

Area

Basement Unfinished: 1818 sq/ft
First Floor: 1818 sq/ft height 9'
Garage: 505 sq/ft
Porch: 130 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x4

Bedroom Features

Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan

Outdoor Spaces

Courtyard
Covered Front Porch

Rooms

Bedroom 2:

width 10' 5" x depth 11' 6"

Bedroom 3:

width 11' 6" x depth 10' 2"

Dining:

width 13' x depth 11'

Garage:

505 sq/ft width 24' 1" x depth 22'

Great Room:

width 16' 9" x depth 15' 6"

Kitchen:

width 12' 1" x depth 11' 6"

Master Bedroom:

width 12' 4" x depth 15'

Study:

width 10' x depth 12' 5"

What's Included In This Plan Set

See a sample plan set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
Fireplace detail shows how the fireplace is to be built.
Wall section shows typical framing detail of house.
