PLAN 929-86
Key Specs
1820
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 929-86
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
Full Specs & Features
Height : 26'
Width : 61' 10"
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Split Bedrooms
Covered Rear Porch
3rd BR Closet:
15 sq/ft width 2' x depth 7' 10"
Bathroom 2:
44 sq/ft width 5' 6" x depth 8'
Bedroom 2:
140 sq/ft width 12' x depth 11' 8"
Bedroom 2 Closet:
16 sq/ft width 2' x depth 8'
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"
Bedroom 3 Closet:
16 sq/ft width 2' x depth 8'
Breakfast Room:
92 sq/ft width 12' x depth 7' 8"
Coat Closet:
6 sq/ft width 3' x depth 2'
Dining Room:
156 sq/ft width 12' x depth 13'
Foyer:
52 sq/ft width 9' 4" x depth 5' 8"
Garage:
484 sq/ft width 22' x depth 22'
Gathering Room:
272 sq/ft width 16' x depth 17'
Kitchen:
140 sq/ft width 12' x depth 11' 8"
Linen Closet:
12 sq/ft width 1' 10" x depth 7'
Master Bathroom:
111 sq/ft width 12' x depth 9' 4"
Master Bedroom:
168 sq/ft width 12' x depth 14'
Master Closet:
31 sq/ft width 3' 8" x depth 8' 8"
Master Closet Two:
21 sq/ft width 4' 4" x depth 5'
Porch - Front:
101 sq/ft width 16' x depth 6' 4"
Porch - Rear:
307 sq/ft width 41' x depth 7' 6"
Porch - Right:
36 sq/ft width 6' x depth 6'
Storage Closet:
6 sq/ft width 3' x depth 2'
Utility Room:
73 sq/ft width 12' 2" x depth 6'
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

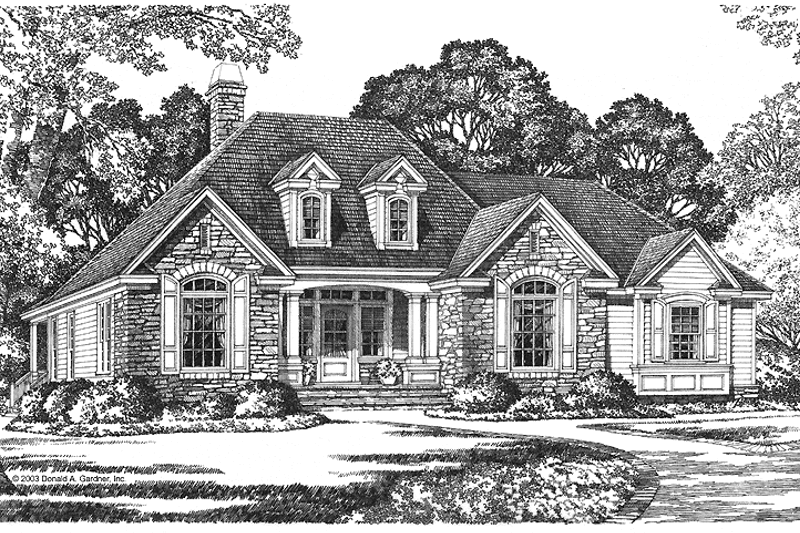

- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

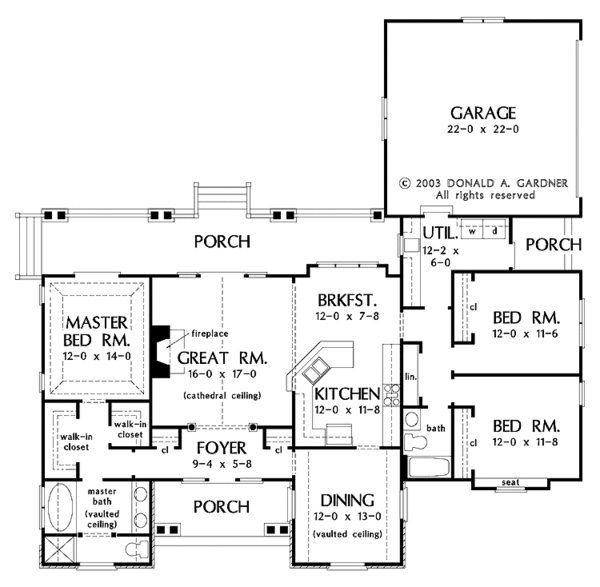

- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
