PLAN #124-130

Key Specs


1844
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

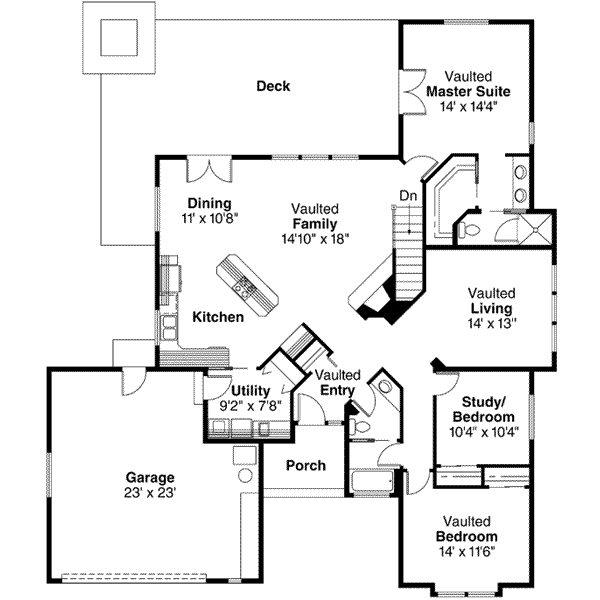

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 64'
Height : 22'
Width : 57'
Area Garage : 517 sq/ft
Main Floor : 1844 sq/ft
Ceiling Main Ceiling : 8'
Roof Roof Framing : Turss
Roof Load : 30
Primary Pitch : 8:12
Exterior Wall Framing Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features Kitchen Island
Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Garage Features Front Entry Garage
Outdoor Spaces Covered Front Porch
Grill Deck Sundeck
More Empty Nester

What's Included In This Plan Set


Associated Designs, Inc.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

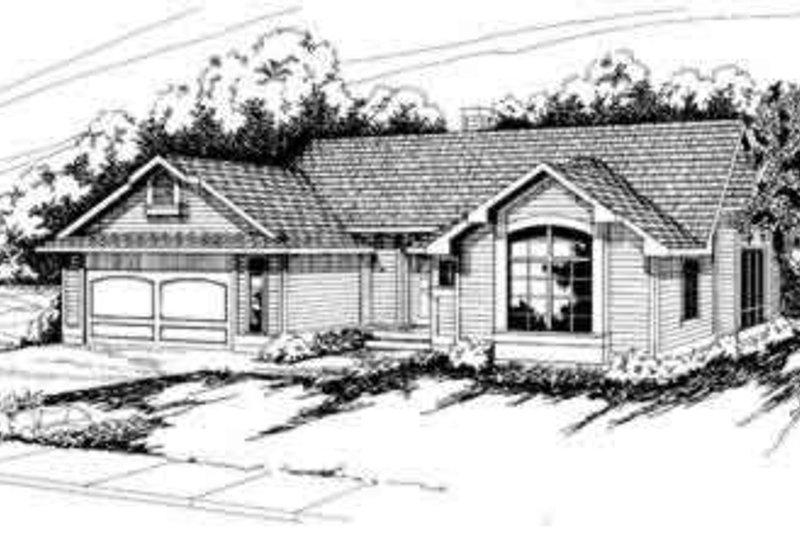

  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.
Plan Set
5 Copy Set :
$845.00
5 printed plan sets mailed to you.
PDF Set :
$845.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$895.00
8 printed plan sets mailed to you.
CAD Set :
$1865.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$625.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$175.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$175.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$250.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
