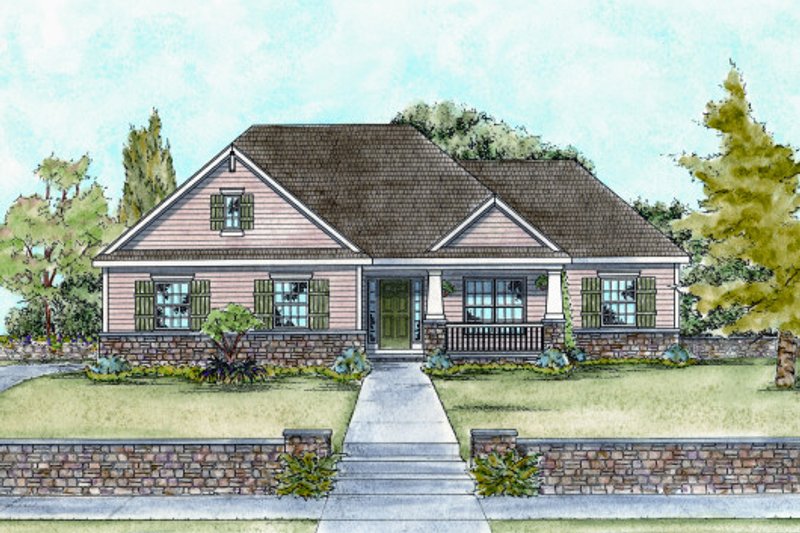

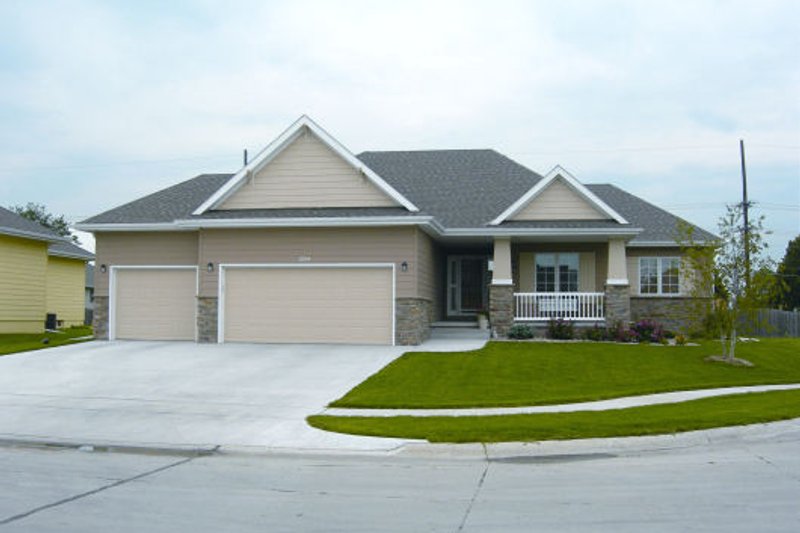

Key Specs


1850
sq ft

3
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

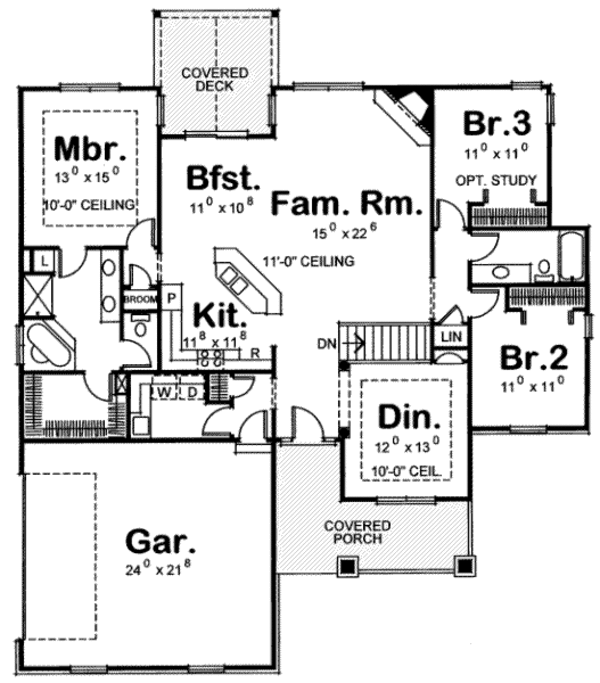

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #20-1715

Full Specs & Features


Dimension Depth : 56' 4"
Height : 23' 6"
Width : 55'
Area Garage : 543 sq/ft
Main Floor : 1850 sq/ft
Porch : 170 sq/ft
Ceiling Main Ceiling : 9'
Roof Primary Pitch : 6:12
Secondary Pitch : 10:12
Exterior Wall Framing Framing : 2"x6"
Bedroom Features Split Bedrooms
Walk In Closet
Kitchen Features Eating Bar
Breakfast Nook
Additional Room Features Family Room Keeping Room
Storage Area
Unfinished Future Space
Garage Features Side Entry Garage
Lot Characteristics Suited For Corner Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Bathroom 2 55 sq/ft width 11' x depth 5'
Bedroom 2 121 sq/ft width 11' x depth 11'
Bedroom 3 121 sq/ft width 11' x depth 11'
Breakfast 117 sq/ft width 11' x depth 10' 8"
Dining Room 156 sq/ft width 12' x depth 13'
Entry 45 sq/ft width 6' x depth 7' 6"
Family Room 337 sq/ft width 15' x depth 22' 6"
Garage 520 sq/ft width 24' x depth 21' 8"
Kitchen 136 sq/ft width 11' 8" x depth 11' 8"
Laundry Room 45 sq/ft width 7' 3" x depth 6' 3"
Master Bathroom 108 sq/ft width 9' 4" x depth 11' 8"
Master Bedroom 195 sq/ft width 13' x depth 15'
Master Closet 62 sq/ft width 10' x depth 6' 3"

What's Included In This Plan Set


  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria
  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
