PLAN 46-495
Key Specs
1850
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 46-495
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 39'
Height : 28'
Width : 46' 4"
Height : 28'
Width : 46' 4"
Area
Attic: 126 sq/ft height 8'
Bonus: 180 sq/ft height 8'
First Floor: 958 sq/ft height 8'
Garage: 444 sq/ft height 8'
Second Floor: 892 sq/ft height 8'
Bonus: 180 sq/ft height 8'
First Floor: 958 sq/ft height 8'
Garage: 444 sq/ft height 8'
Second Floor: 892 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle/Siding
Framing : 2"x4"
Framing : 2"x4"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Play Flex Room
Storage Area
Loft
Main Floor Laundry
Play Flex Room
Storage Area
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Balcony
Code Compliance
Irc 2006
Rooms
Balcony:
41 sq/ft width 5' x depth 8' 3"
Bedroom 2:
128 sq/ft width 10' 4" x depth 12' 5"
Bedroom 2 Closet:
15 sq/ft width 2' 1" x depth 7' 7"
Bedroom 3:
138 sq/ft width 10' 4" x depth 13' 5"
Bedroom 3 Closet:
13 sq/ft width 6' 7" x depth 2' 1"
Bonus Room - Finished:
180 sq/ft width 16' 5" x depth 11'
Breakfast Room:
174 sq/ft width 13' 4" x depth 13' 1"
Coat Closet:
8 sq/ft width 2' 1" x depth 4' 1"
Foyer:
28 sq/ft width 8' x depth 3' 6"
Garage:
460 sq/ft width 21' 1" x depth 21' 10"
Gathering Room:
328 sq/ft width 13' x depth 25' 3"
Hall Bathroom:
59 sq/ft width 8' 1" x depth 7' 5"
Kitchen:
136 sq/ft width 8' 10" x depth 15' 5"
Kitchen Island:
13 sq/ft width 3' x depth 4' 6"
Laundry Room:
52 sq/ft width 6' 6" x depth 8'
Linen Closet:
4 sq/ft width 1' 4" x depth 3' 9"
Master Bathroom:
96 sq/ft width 8' 4" x depth 11' 7"
Master Bedroom:
205 sq/ft width 13' 8" x depth 15'
Master Closet:
54 sq/ft width 7' 3" x depth 7' 7"
Pantry:
5 sq/ft width 2' 5" x depth 2' 1"
Powder Room:
26 sq/ft width 3' 1" x depth 8' 8"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

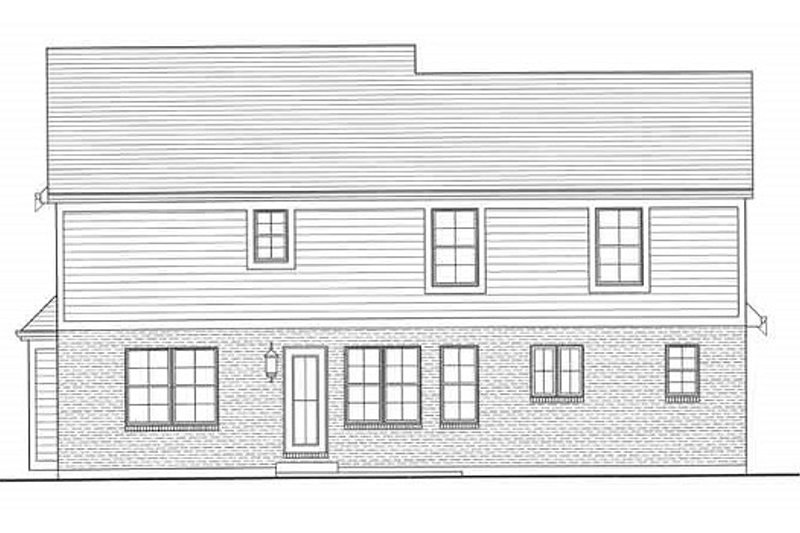

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

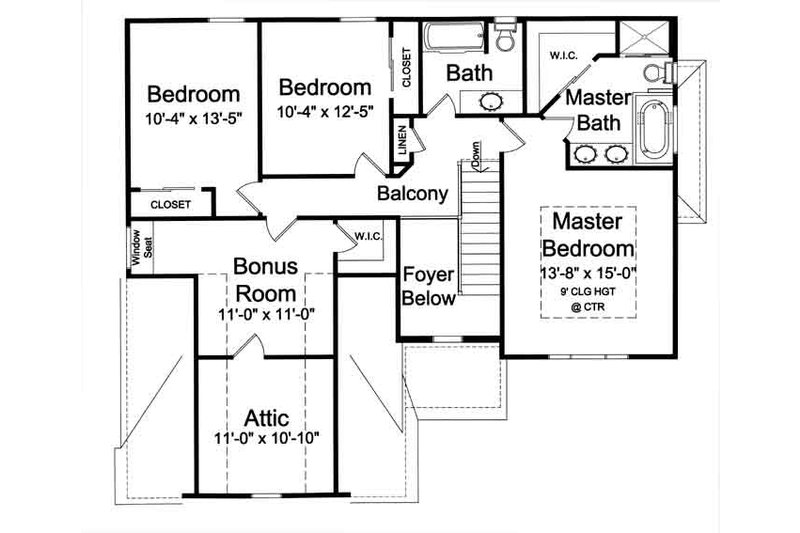

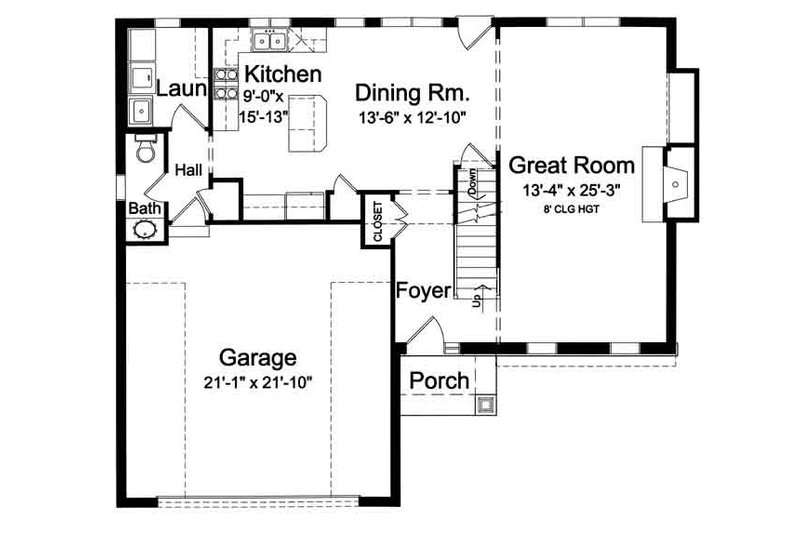

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $895.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $895.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy and PDF Set : $950.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 8 Copy Set : $950.00 |
8 printed plan sets mailed to you. |
| Eight Copy and PDF Set : $995.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $1350.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Additional Options
| Right-Reading Reverse : $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $25.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
