PLAN 513-2165

Key Specs

1860
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Don't be fooled by the vintage street appeal of this home, inside you'll find all the modern features included in many of today's plans. The main level has a first floor master suite and an open layout living area that includes a kitchen with center work island. Upstairs, there are 2 bedrooms, each with walk-in closets that share a second hall bath.

Floor Plans

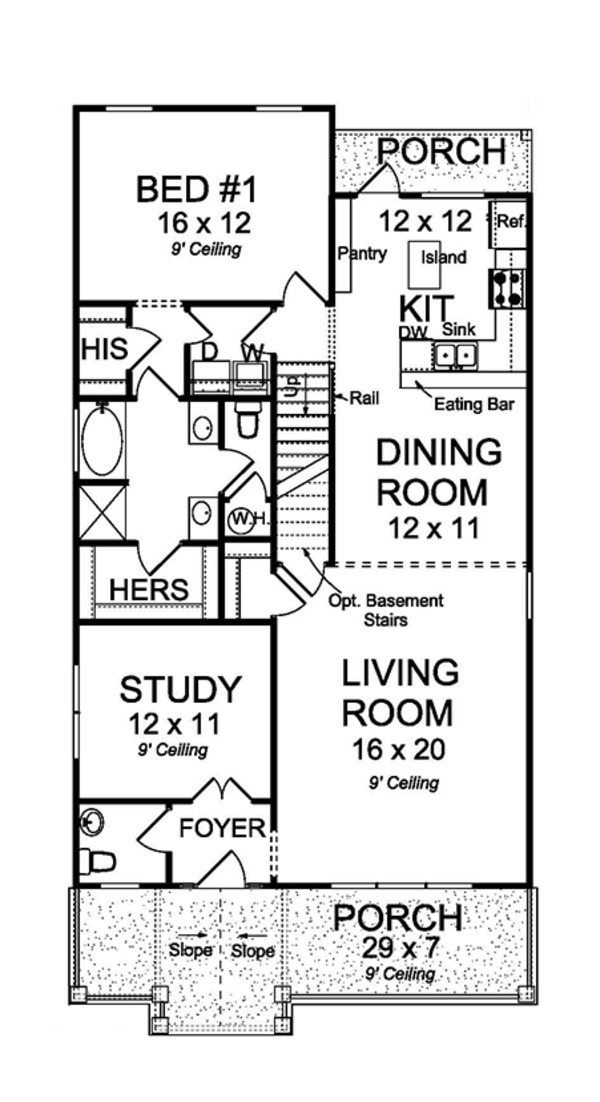

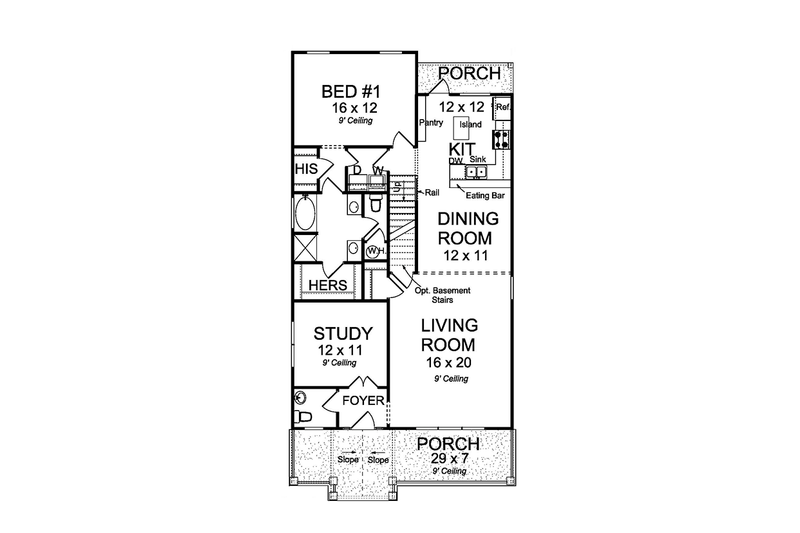

Floor Plan - Main Floor Plan

Reverse

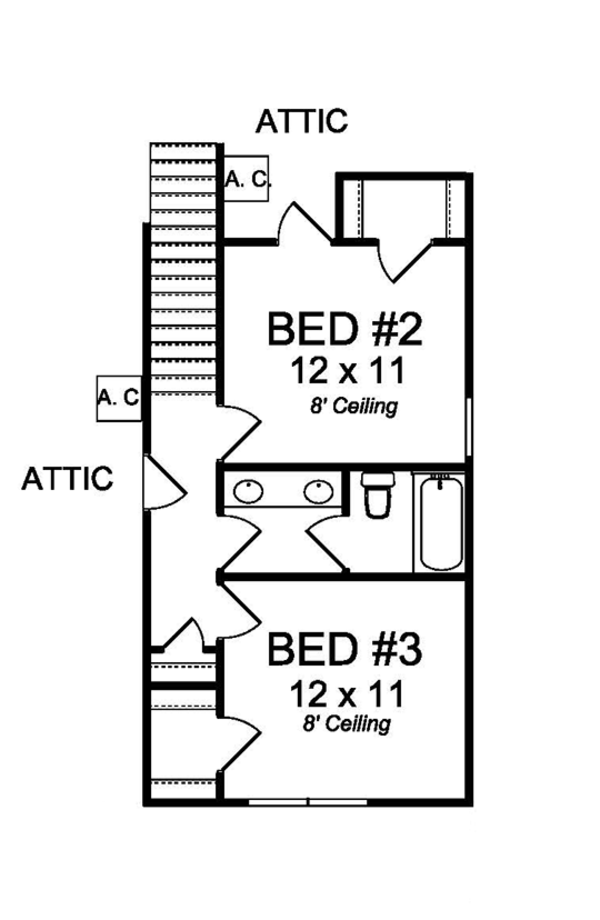

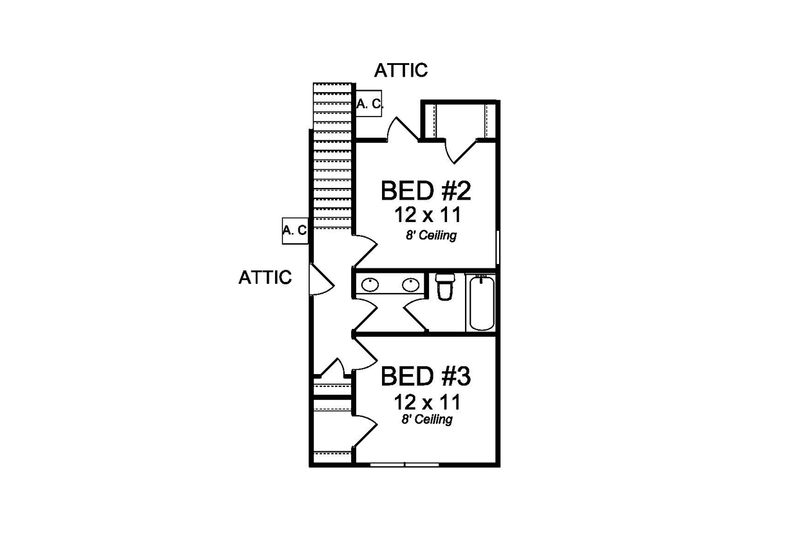

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 58' 6"
Height : 27'
Width : 29'

Area

First Floor: 1367 sq/ft height 9'
Second Floor: 493 sq/ft height 8'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Main Floor Laundry
Open Floor Plan

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

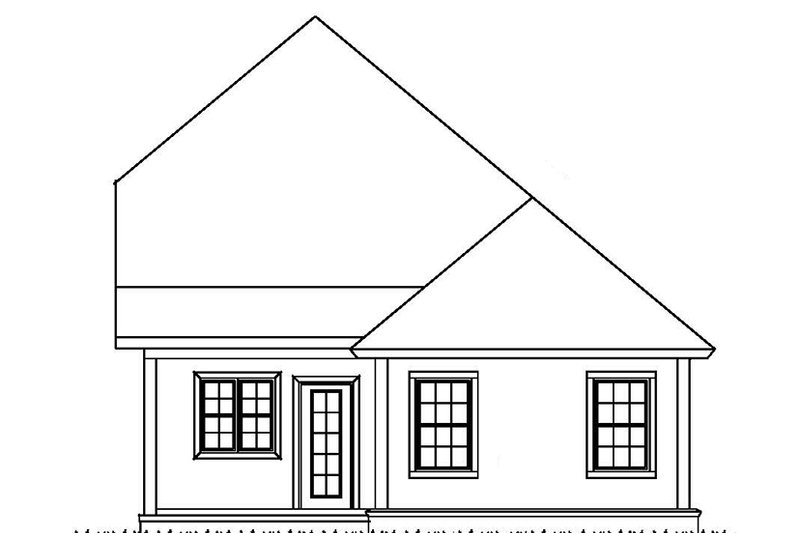

Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

» See important information before purchasing.

Plan Set

PDF Set : $905.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $905.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1155.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $150.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $150.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4: $0.00	Wood 2x4
Wood 2x6: $150.00	Wood 2x6

Additional Options

Right-Reading Reverse : $150.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
