PLAN #36-502

Key Specs


1862
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

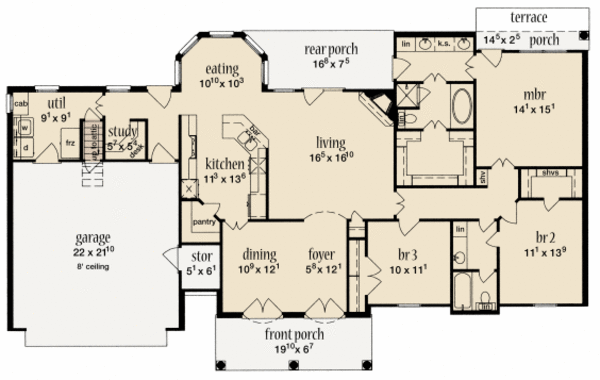

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #36-502

Full Specs & Features


Dimension
Depth : 43' 5"
Height : 23' 1"
Width : 74' 10"
Area
First Floor: 1862 sq/ft height 10'
Garage: 504 sq/ft
Porch: 257 sq/ft
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 8:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


  • Floor plan with dimensions.
  • Electrical layout showing fixtures and switches, but not circuits. This is on the floor plan on older plans.
  • Elevations from all 4 sides and top.
  • Framing details including cornices and at least one section.
  • Foundation with footing details. Plumbing is repeated on slab foundation.
» See important information before purchasing.
Plan Set
5 Copy Set :
$625.00
5 printed plan sets mailed to you.
8 Copy Set :
$725.00
8 printed plan sets mailed to you.
Reproducible Set :
$725.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$510.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
