Full Specs & Features
Depth : 68' 2"
Height : 25' 2"
Width : 67' 10"
Bonus : 397 sq/ft
Garage : 630 sq/ft
Main Floor : 1871 sq/ft
Porch : 510 sq/ft
Ceiling Details : Cathedral ceiling in Great Room; tray ceiling in Master Bedroom and Dining Room
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Asphalt Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding/Shingle
Framing : 2 x 4
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space

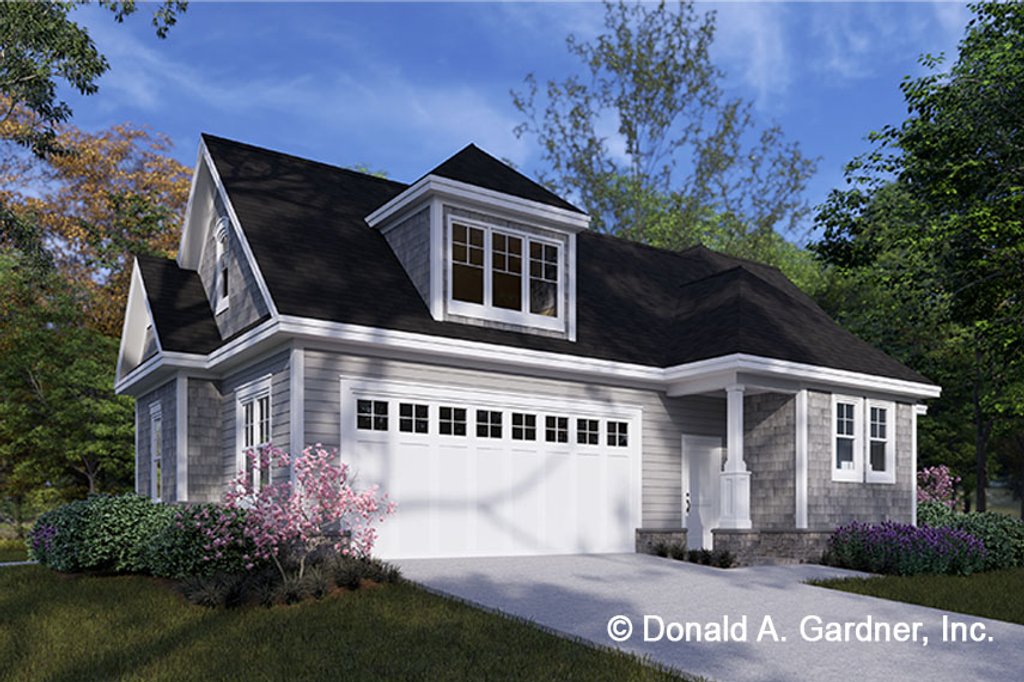

Side Entry Garage
Covered Front Porch

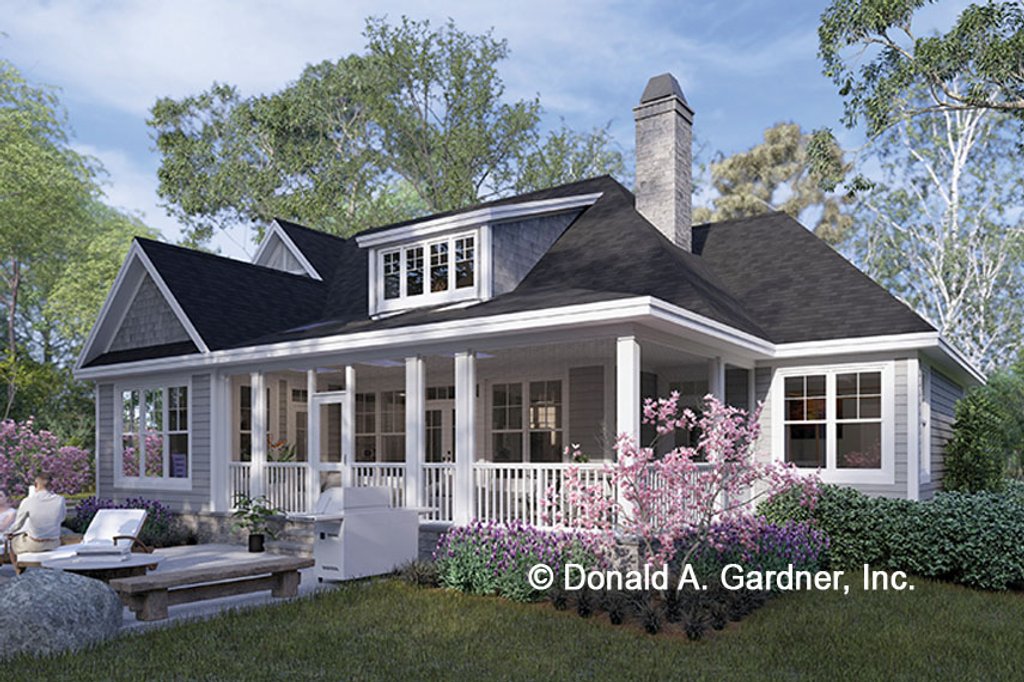

Covered Rear Porch
What's Included In This Plan Set
This designer charges $49.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

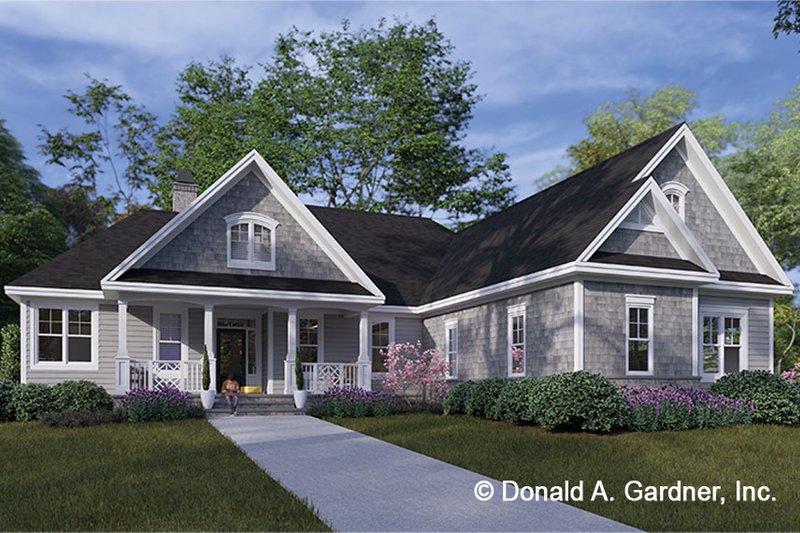

- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
