Key Specs


1872
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Vaulted ceilings throughout this home suggest the innovative touches that add interest in a one-story plan. Sidelight and overhead windows brighten a foyer that opens to the family room and living room. A plant shelf spans the entry into the living room, which is united with the dining room under a high ceiling. A vaulted ceiling also augments the family room. Notice the two-way fireplace and access to a covered patio here. The kitchen is convenient to the dining room and to a bayed breakfast nook. The master bedroom also has a bay window plus a full bath with oversized shower. Two additional bedrooms share a full bath. Plans include two different elevation choices!

Floor Plans

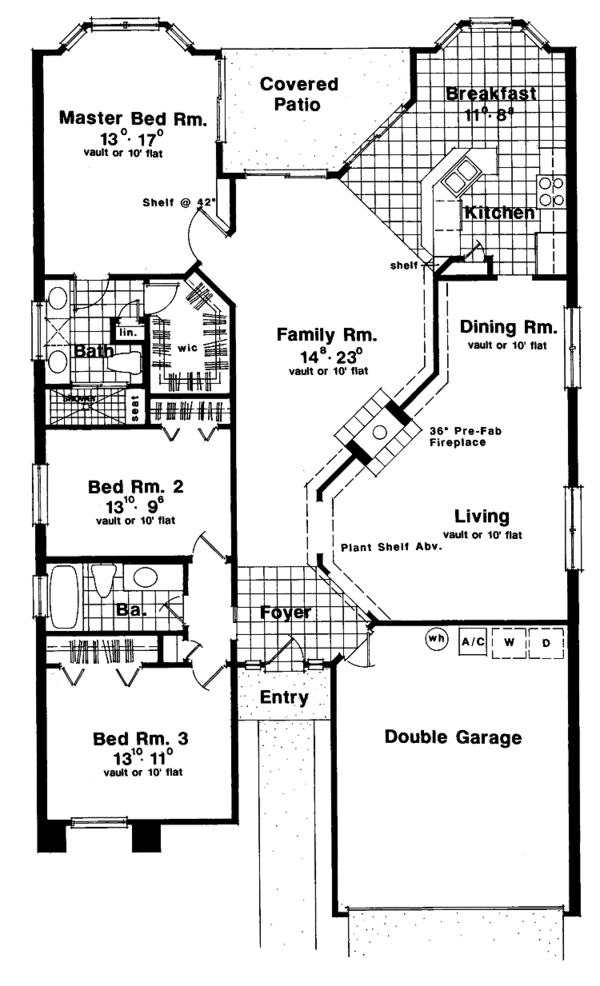

Floor Plan - Main Floor Plan
Prairie Floor Plan - Main Floor Plan Plan #417-463

Full Specs & Features


Dimension
Depth : 66' 8"
Height : 18'
Width : 40'
Area
First Floor: 1872 sq/ft
Garage: 398 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Fireplace
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

Bathroom 2:

50 sq/ft width 10' x depth 5'

Bedroom 2:

131 sq/ft width 13' 10" x depth 9' 6"

Bedroom 3:

152 sq/ft width 13' 10" x depth 11'

Breakfast Room:

99 sq/ft width 11' x depth 9'

Dining Room:

66 sq/ft width 9' 6" x depth 7'

Garage:

376 sq/ft width 17' 8" x depth 21' 4"

Gathering Room:

337 sq/ft width 14' 8" x depth 23'

Kitchen:

95 sq/ft width 9' 10" x depth 9' 8"

Living Room:

333 sq/ft width 18' 2" x depth 18' 4"

Master Bathroom:

78 sq/ft width 7' 4" x depth 10' 9"

Master Bedroom:

221 sq/ft width 13' x depth 17'

Master Closet:

49 sq/ft width 6' x depth 8' 4"
