PLAN 17-2910
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

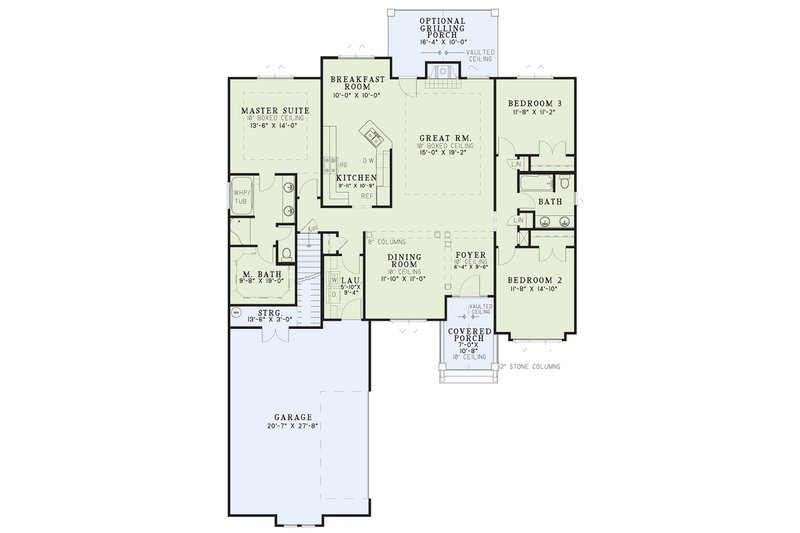

Floor Plan - Main Floor

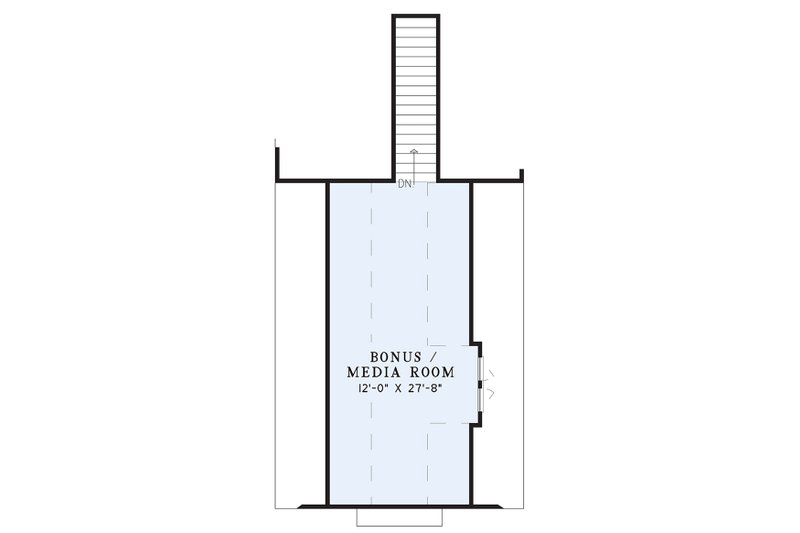

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 77'
Height : 24' 10"
Width : 52'
Area
Bonus: 289 sq/ft height 8'
First Floor: 1874 sq/ft height 9'
Garage: 572 sq/ft
Porch: 234 sq/ft
Roof
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
173 sq/ft width 11' 8" x depth 14' 10"
Bedroom 3:
130 sq/ft width 11' 8" x depth 11' 2"
Bonus Room - Unfinished:
260 sq/ft width 12' x depth 21' 8"
Breakfast Room:
100 sq/ft width 10' x depth 10'
Covered Porch:
74 sq/ft width 7' x depth 10' 8"
Dining Room:
130 sq/ft width 11' 10" x depth 11'
Foyer:
60 sq/ft width 6' 4" x depth 9' 6"
Garage:
514 sq/ft width 20' 7" x depth 25'
Great Room:
287 sq/ft width 15' x depth 19' 2"
Grilling Porch:
163 sq/ft width 16' 4" x depth 10'
Kitchen:
106 sq/ft width 9' 11" x depth 10' 9"
Laundry Room:
54 sq/ft width 5' 10" x depth 9' 4"
Master Bathroom:
183 sq/ft width 9' 8" x depth 19'
Master Suite:
189 sq/ft width 13' 6" x depth 14'
Storage:
40 sq/ft width 13' 6" x depth 3'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- Floor Plan(s): Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Exterior Elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Overhead Roof Plan(s): This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
- Cross Section(s): **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Building Section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): These are included for many interior and exterior conditions that require more specific information for their construction.
Plan Set
$800.00
$900.00
$1150.00
$1500.00
$1600.00
$2300.00
Foundation
$0.00
$0.00
$299.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
