PLAN #40-118

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This 1,875 sq. ft, Country style house includes a wrap-around front porch off the great room and a dining porch off the nook at the rear. The kitchen command center opens to the living and dining areas across an angled peninsula. The master suite is on the ground floor behind the garage; the two other bedrooms are upstairs flanking a Jack-and-Jill bath.

Floor Plans

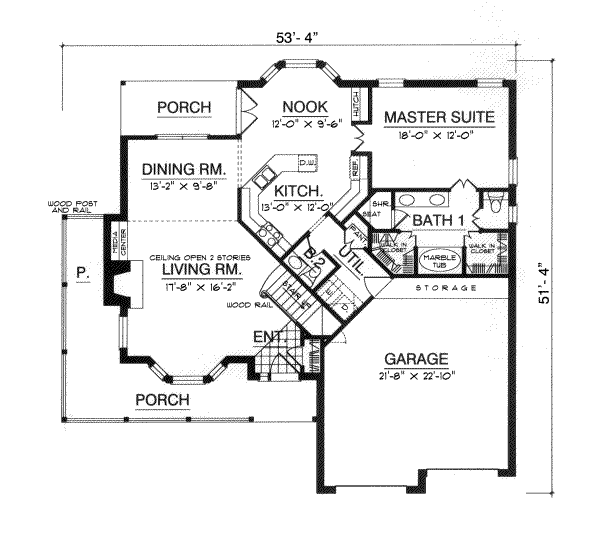

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #40-118

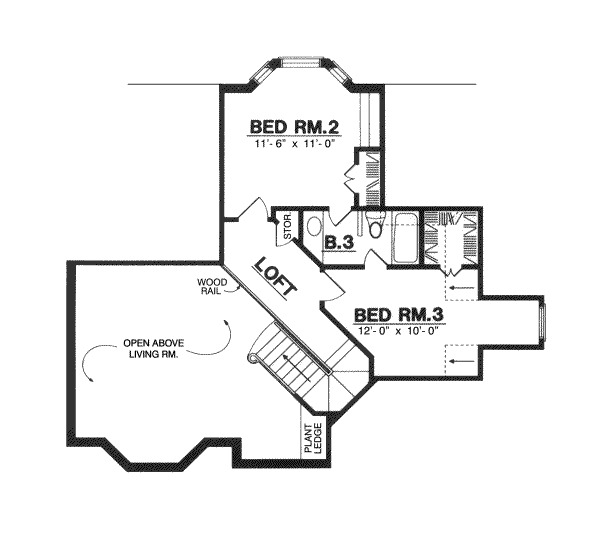

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #40-118
Floor Plan - Other Floor Plan
Country Floor Plan - Other Floor Plan Plan #40-118

Full Specs & Features

Depth : 52' 8"
Height : 26'
Width : 53' 4"
First Floor: 1345 sq/ft
Second Floor: 530 sq/ft
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Storage Area
Outdoor Spaces
Covered Rear Porch
Wrap Around Porch
Jack & Jill Bath

Bathroom 2:

96 sq/ft width 16' x depth 6'

Bedroom 2:

126 sq/ft width 11' 6" x depth 11'

Bedroom 3:

120 sq/ft width 12' x depth 10'

Breakfast Room:

111 sq/ft width 12' x depth 9' 4"

Dining Room:

127 sq/ft width 13' 2" x depth 9' 8"


494 sq/ft width 21' 8" x depth 22' 10"


156 sq/ft width 13' x depth 12'

Living Room:

285 sq/ft width 17' 8" x depth 16' 2"

Master Bathroom:

160 sq/ft width 16' x depth 10'

Master Bedroom:

192 sq/ft width 16' x depth 12'

Powder Room:

20 sq/ft width 4' x depth 5'

Utility Room:

38 sq/ft width 5' x depth 7' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.
