Photographs may show modified designs.
PLAN 929-11
Key Specs
1882
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 929-11
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

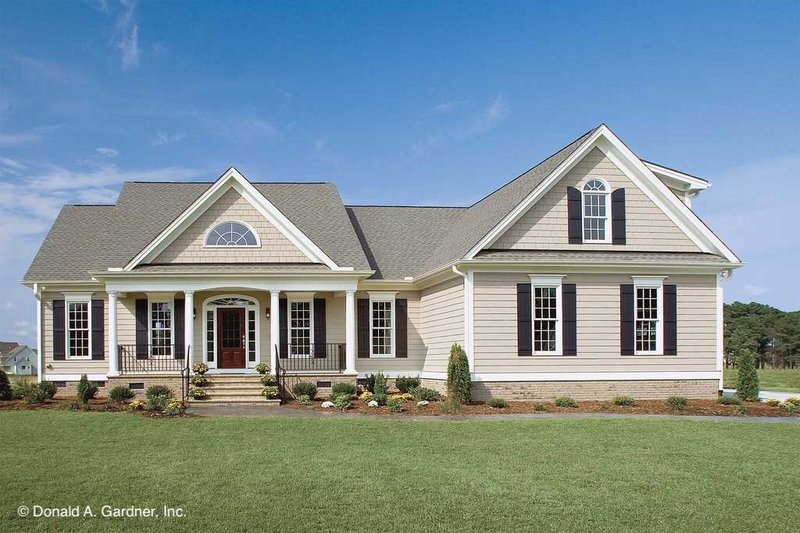

Traditional Colonial details like arched windows, porch columns, fanlight over the front door, and shutters lend charm to the facade of this three-bedroom split plan home. The open common area features a great room with a cathedral ceiling, a formal dining room with a tray ceiling, a peninsular kitchen, and an informal breakfast area. The master suite is has a dramatic vaulted ceiling and includes access to the back porch. A bonus room over the garage is accessible from near the master bedroom and could function as an up stairs study or guest room.
Full Specs & Features
Height : 24'
Width : 61' 4"
First Floor: 1882 sq/ft height 9'
Roof Framing : Stick
Roof Type : Shingle
Framing : 2x4
Walk In Closet
Eating Bar
Play Flex Room
Storage Area
Unfinished Future Space
Covered Rear Porch
3rd BR Closet:
10 sq/ft width 5' 4" x depth 2'
Bathroom 2:
38 sq/ft width 7' 8" x depth 5'
Bedroom 2:
158 sq/ft width 14' x depth 11' 4"
Bedroom 2 Closet:
15 sq/ft width 2' x depth 7' 8"
Bedroom 3:
124 sq/ft width 11' 4" x depth 11'
Bedroom 3 Closet:
15 sq/ft width 2' x depth 7' 8"
Bonus Room - Finished:
294 sq/ft width 14' x depth 21'
Breakfast Room:
101 sq/ft width 11' 4" x depth 9'
Dining Room:
185 sq/ft width 16' 4" x depth 11' 4"
Foyer:
67 sq/ft width 6' x depth 11' 4"
Garage:
441 sq/ft width 21' x depth 21'
Garage Storage:
15 sq/ft width 5' 4" x depth 3'
Gathering Room:
298 sq/ft width 16' x depth 18' 8"
Hall Closet:
4 sq/ft width 2' x depth 2'
Kitchen:
132 sq/ft width 11' 4" x depth 11' 8"
Master Bathroom:
102 sq/ft width 11' x depth 9' 4"
Master Bedroom:
244 sq/ft width 14' 8" x depth 16' 8"
Master Closet:
31 sq/ft width 5' x depth 6' 4"
Porch - Front:
159 sq/ft width 26' 6" x depth 6'
Porch - Rear:
200 sq/ft width 40' x depth 5'
Powder Room:
31 sq/ft width 6' x depth 5' 4"
Utility Room:
54 sq/ft width 6' x depth 9'
Walk-In Closet:
6 sq/ft width 2' x depth 3' 4"
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
| PDF Set
: $1095.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1095.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy Set
: $1195.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1245.00 |
8 printed plan sets mailed to you. |
| CAD Set
: $2190.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set
: $895.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Basement: $285.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Slab: $285.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $285.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $180.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List
: $100.00 |
A list of building supplies needed to construct the infrastructure of your new house. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
