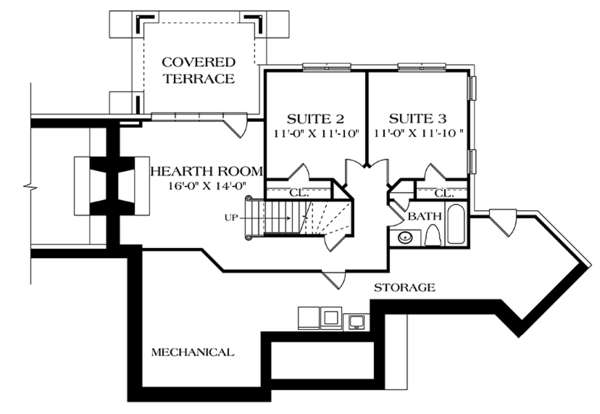

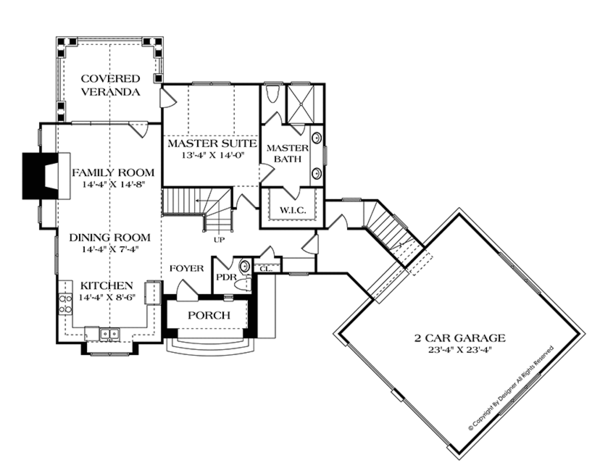

A stone and shake facade with shed dormers, exposed rafters tails, and decorative wood brackets make this cottage design as quaint and picturesque as anyone could imagine. The main level boasts a vaulted ceiling that extends through the entire open living area and is continued on the exposed beamed rear veranda. The first floor master suite includes a high ceiling with clerestory dormer allowing natural light to bathe the room. The finished walkout basement has a hearth room, two additional bedrooms and access to a covered terrace. There is a bonus space over the garage and an open terrace on the lower level with an outdoor fireplace.
Covered Front Porch:
106 sq/ft width 14' 4" x depth 7' 4"
210 sq/ft width 14' 4" x depth 14' 8"
719 sq/ft width 23' 4" x depth 23' 4"
224 sq/ft width 16' x depth 14'
122 sq/ft width 14' 4" x depth 8' 6"
Lower Level Mechanical:
Lower Level Storage:
187 sq/ft width 13' 4" x depth 14'
47 sq/ft width 8' 8" x depth 5' 5"

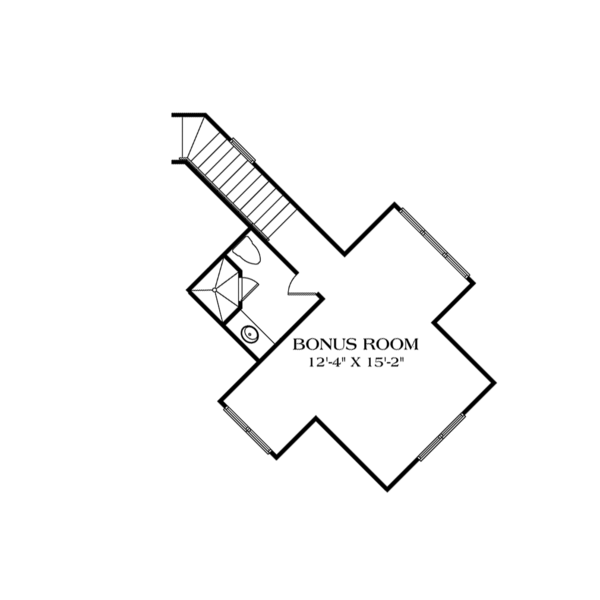

Optional Bonus Room:
374 sq/ft width 12' 4" x depth 15' 2"
27 sq/ft width 5' 4" x depth 5'
130 sq/ft width 11' x depth 11' 10"
121 sq/ft width 11' x depth 11'
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for sloping lot, lower level of home partially underground.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
