PLAN #92-201

Key Specs


1888
sq ft

2
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

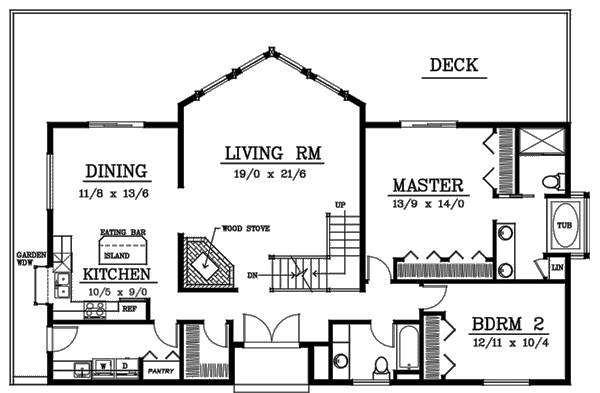

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #92-201

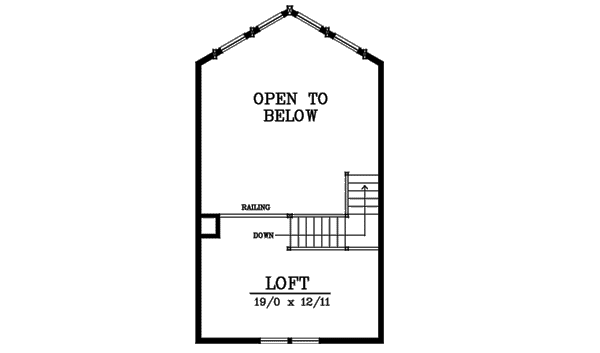

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #92-201

Full Specs & Features


Dimension
Depth : 36'
Height : 24'
Width : 56'
Area
First Floor: 1648 sq/ft height 8'
Second Floor: 240 sq/ft
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Secondary Pitch : 5:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Kitchen Island
Additional Room Features
Loft
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
More
Suited For Vacation Home

What's Included In This Plan Set


  • Elevations drawn at 1/4" = 1'-0" scale, and includes:
    Material labels
    Floor-to-floor heights
    Roof slope indicators
    Attic ventilation notes
  • Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    Room labels and interior room sizes
    Electrical layouts
    Code-related notes
    Building section markers
    Floor joist type, spacing and direction
  • Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    All foundation wall and footing sizes
    Code-related notes
    Building section markers
    Floor and deck joist type, spacing and direction
    Mechanical equipment location
    Electrical layouts
  • Roof Plan drawn at 1/4" = 1'-0", and includes:
    All beam and header locations
    Building section markers
    Code-related notes
    All necessary notes pertaining to the structural system
  • Building Sections drawn at 1/4" = 1'-0" scale, and includes:
    Beam connections and locations
    Floor joist type and spacing
    Floor-to-floor heights
    Non-typical plate heights indicated
  • Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
    All labels indicating wall construction
    Foundation wall thickness and minimum reinforcing
    Insulation type and rating
  • Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
» See important information before purchasing.

Plan Set

PDF Set :
$675.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$765.00
5 printed plan sets mailed to you.
Reproducible Set :
$787.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
8 Copy Set :
$810.00
8 printed plan sets mailed to you.
CAD Set :
$1260.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Basement:
$135.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$135.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$135.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
135.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
