PLAN 437-14
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 55' 6"
Height : 19'
Width : 65'
Area
First Floor: 1889 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Trusses
Roof Type : Concrete Tile
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
116 sq/ft width 9' 8" x depth 12'
Dining Room:
152 sq/ft width 10' 8" x depth 14' 4"
Exercise Room:
width 10' x depth 0"
Family Room:
266 sq/ft width 14' x depth 19'
Garage:
660 sq/ft width 30' x depth 22'
Master Bathroom:
168 sq/ft width 13' 8" x depth 12' 4"
Master Bedroom:
232 sq/ft width 13' 8" x depth 17'
Nook:
102 sq/ft width 11' x depth 9' 4"
What's Included In This Plan Set
Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.
-
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -

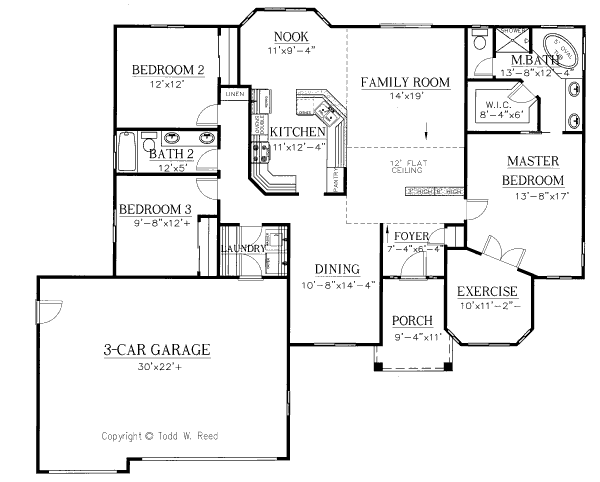

Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Plan Set
$800.00
$960.00
Foundation
$0.00
Additional Options
$160.00
$132.00
$236.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
