Key Specs
1890
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 513-2113
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

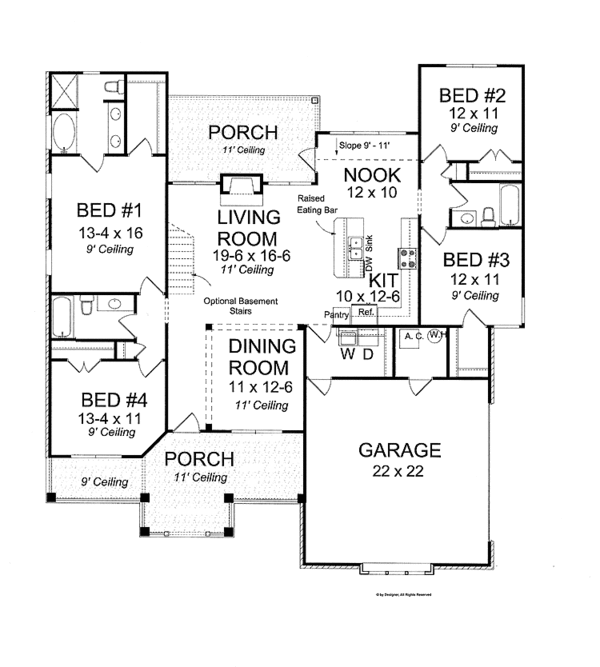

Floor Plans
Full Specs & Features
Dimension
Depth : 59'
Height : 24'
Width : 56'
Area
First Floor: 1890 sq/ft
Garage: 521 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Breakfast Nook
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
40 sq/ft width 8' 2" x depth 5'
Bathroom 3:
48 sq/ft width 9' 8" x depth 5'
Bedroom 2:
132 sq/ft width 12' x depth 11'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Dining Room:
137 sq/ft width 11' x depth 12' 6"
Foyer:
54 sq/ft width 4' 6" x depth 12'
Garage:
484 sq/ft width 22' x depth 22'
Kitchen:
125 sq/ft width 10' x depth 12' 6"
Kitchen Island:
23 sq/ft width 3' 4" x depth 7'
Living Room:
321 sq/ft width 19' 6" x depth 16' 6"
Master Bathroom:
79 sq/ft width 8' 6" x depth 9' 4"
Master Bedroom:
213 sq/ft width 13' 4" x depth 16'
Master Closet:
41 sq/ft width 4' 6" x depth 9' 4"
Nook:
120 sq/ft width 12' x depth 10'
Utility Room:
60 sq/ft width 10' x depth 6'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

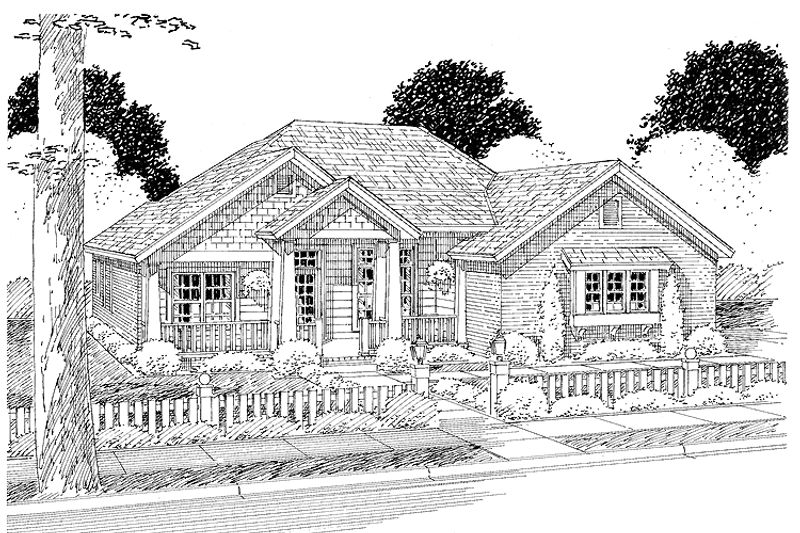

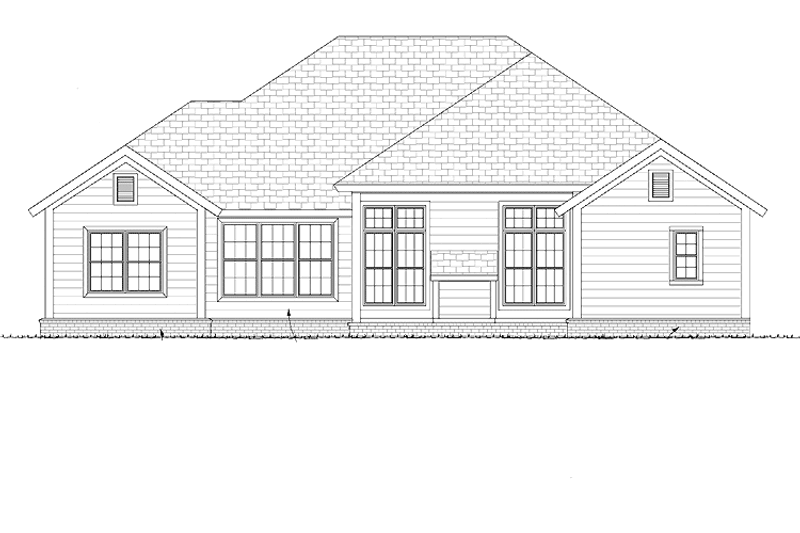

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

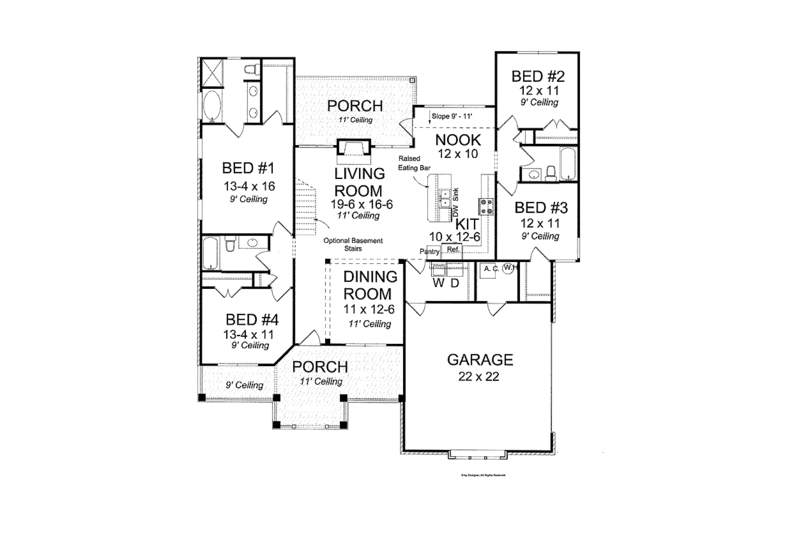

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$804.00
$1040.00
Foundation
$0.00
$156.00
$156.00
Framing
$0.00
$156.00
Additional Options
$156.00
$132.00
$236.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
