PLAN #117-548

Key Specs


1892
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

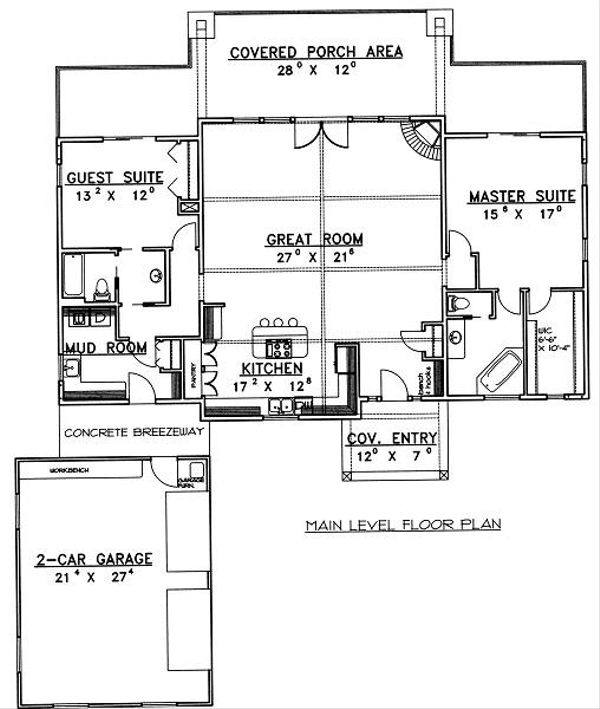

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #117-548

Full Specs & Features


Dimension
Depth : 78'
Height : 20' 2"
Width : 65'
Area
First Floor: 1892 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 7:12
Exterior Wall Framing
Framing : 2"x6"
Rooms

Entry:

84 sq/ft width 12' x depth 7'

Garage:

575 sq/ft width 21' 4" x depth 27'

Great Room:

567 sq/ft width 27' x depth 21'

Guest Bedroom 1:

158 sq/ft width 13' 2" x depth 12'

Master Suite:

263 sq/ft width 15' 6" x depth 17'

Porch - Rear:

336 sq/ft width 28' x depth 12'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
