Key Specs


1902
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Two-story craftsman home plan has front living room, vaulted family room at rear, which is open to the kitchen and dining room. Owners suite has roomy walk-in closet, deluxe bathroom with spa tub, large shower. Good-sized utility room with folding counter, deep sink, links to three-car garage.

Floor Plans

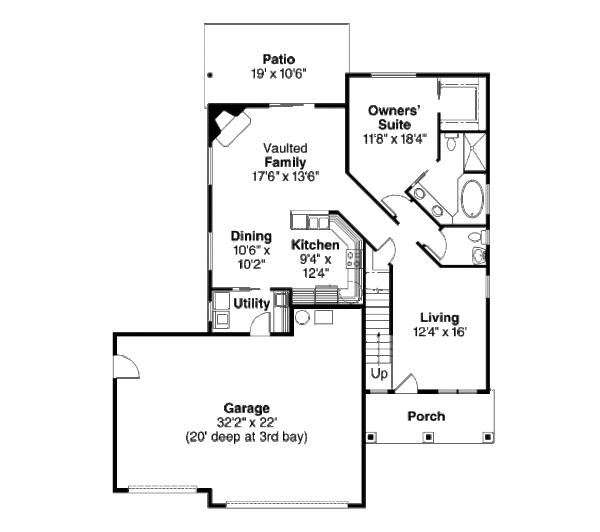

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan Plan #124-683

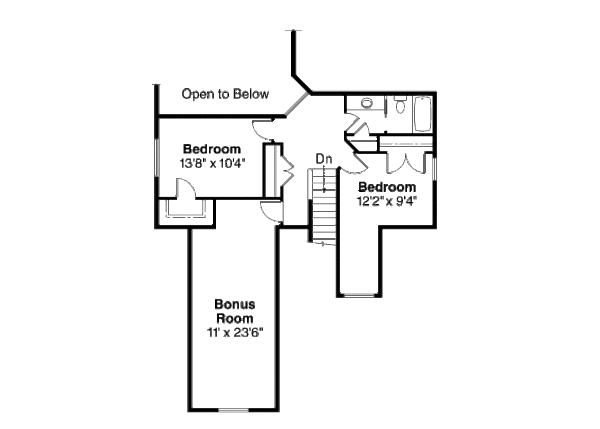

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan Plan #124-683

Full Specs & Features


Dimension
Depth : 57'
Height : 24' 6"
Width : 49' 6"
Area
Bonus: 321 sq/ft height 9'
First Floor: 1298 sq/ft height 9'
Garage: 757 sq/ft height 9'
Second Floor: 604 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Truss
Roof Load : 25 psf
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : stone, siding
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Mud Room
Family Room Keeping Room
Main Floor Laundry
Play Flex Room
Storage Area
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Empty Nester
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Rooms

Bedroom 2:

141 sq/ft width 13' 8" x depth 10' 4"

Bedroom 3:

113 sq/ft width 12' 2" x depth 9' 4"

Bonus Room - Unfinished:

258 sq/ft width 11' x depth 23' 6"

Dining Room:

106 sq/ft width 10' 6" x depth 10' 2"

Family Room:

236 sq/ft width 17' 6" x depth 13' 6"

Garage:

707 sq/ft width 32' 2" x depth 22'

Kitchen:

115 sq/ft width 9' 4" x depth 12' 4"

Master Suite:

213 sq/ft width 11' 8" x depth 18' 4"

Patio:

199 sq/ft width 19' x depth 10' 6"

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
