PLAN #23-252

Photographs may show modified designs.

Country Exterior - Front Elevation Plan #23-252

Select Plan Set Options

What's included?

	Additional Construction Sets $50.00/each
	Material List $150.00 A list of building supplies needed to construct the infrastructure of your new house.
	Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable.

Subtotal

$990.00

Best Price Guaranteed*

Or order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

Need an answer fast? Call us at 1-800-447-0027

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

We do our best to get back within 24 - 48 business hours.

Hours Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #23-252

Key Specs

1917
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

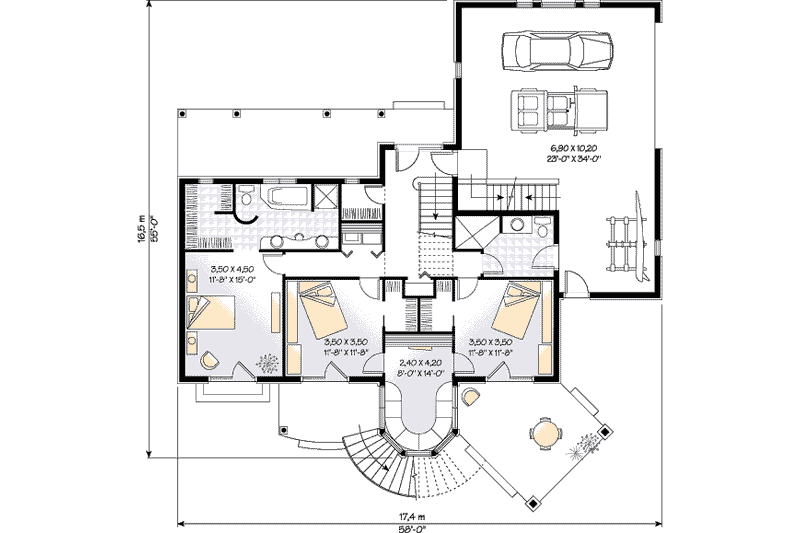

Floor Plan - Main Floor Plan

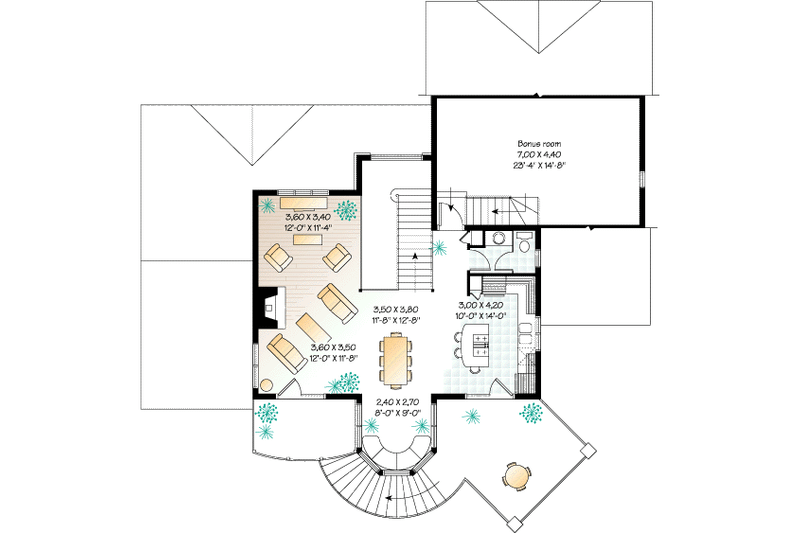

Floor Plan - Upper Floor Plan

Full Specs & Features

Dimension

Depth : 55'
Height : 26'
Width : 58'

Area

Bonus: 372 sq/ft
First Floor: 1219 sq/ft height 9'
Garage: 755 sq/ft
Second Floor: 809 sq/ft

Roof

Primary Pitch : 6:12
Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Loft
Play Flex Room
Unfinished Future Space
Workshop

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

Suited For Vacation Home

Rooms

3rd BR Closet:

24 sq/ft width 3' 10" x depth 6' 4"

Bathroom 2:

81 sq/ft width 11' 8" x depth 7'

Bedroom 2:

136 sq/ft width 11' 8" x depth 11' 8"

Bedroom 2 Closet:

24 sq/ft width 3' 10" x depth 6' 4"

Bedroom 3:

136 sq/ft width 11' 8" x depth 11' 8"

Bedroom 3 Closet:

24 sq/ft width 3' 10" x depth 6' 4"

Bonus Room - Finished:

342 sq/ft width 23' 4" x depth 14' 8"

Dining Room:

147 sq/ft width 11' 8" x depth 12' 8"

Garage:

782 sq/ft width 23' x depth 34'

Kitchen:

140 sq/ft width 10' x depth 14'

Living Room:

276 sq/ft width 12' x depth 23'

Master Bathroom:

93 sq/ft width 12' 2" x depth 7' 8"

Master Bedroom:

175 sq/ft width 11' 8" x depth 15'

Master Closet:

44 sq/ft width 5' 10" x depth 7' 8"

Porch - Front:

264 sq/ft width 33' x depth 8'

What's Included In This Plan Set

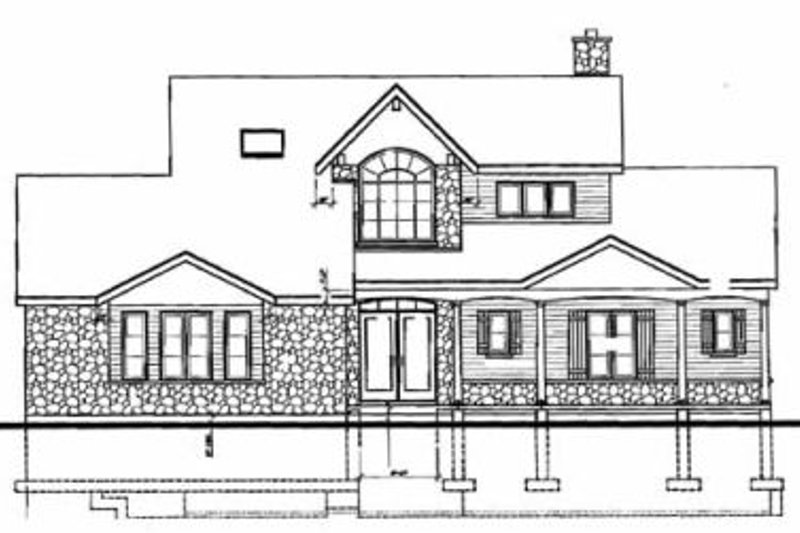

Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings
Height and location of foundation indicated in dashed lines
Type of finishing and textures
Dimension and height of chimney

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions
Location and sizes of doors and windows
Types of interior doors that correspond to a schedule
Indication of the structure above (second floor or roof)
Location of columns, beams and floor joists, including dimensions
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath
Location of ridges and valleys

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include an electrical layout.

» See important information before purchasing.

Plan Set

5 Copy Set : $990.00	5 printed plan sets mailed to you.
8 Copy Set : $1020.00	8 printed plan sets mailed to you.
PDF Set : $1075.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1075.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1720.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $495.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $495.00	Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets : 50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Material List : 150.00	A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse : 150.00	Choose this option to reverse your plans and to have the text and dimensions readable.
