This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Depth : 46' 6"
Height : 21' 1"
Width : 85' 10"
Garage : 679 sq/ft
Main Floor : 1954 sq/ft
Porch : 184 sq/ft
Main Ceiling : 10' 1"
Primary Pitch : 7 IN 12
Roof Framing : TRUSS
Secondary Pitch : 3 IN 12
Exterior Wall Framing
Framing : 2X6
Walk In Closet
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

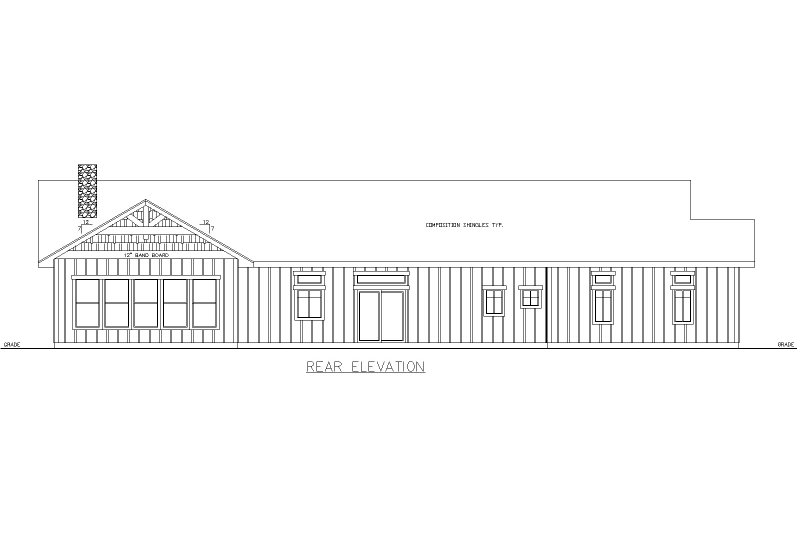

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

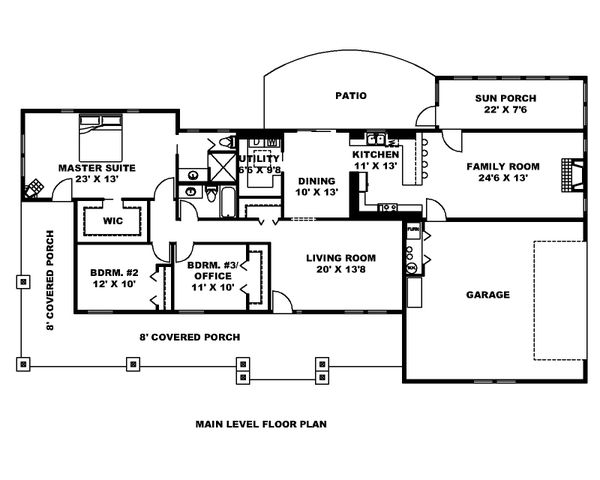

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
