Key Specs

1959
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

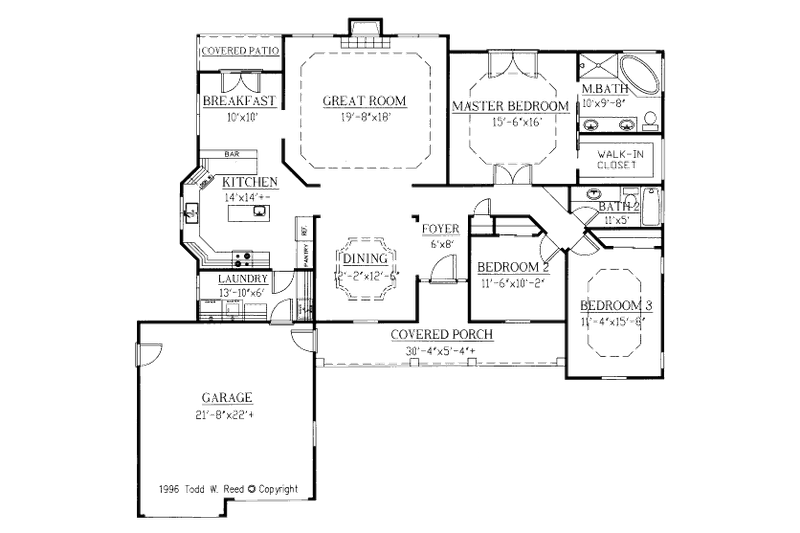

Floor Plan - Main Floor Plan

Full Specs & Features

Dimension

Depth : 57' 2"
Height : 17'
Width : 69' 8"

Area

First Floor: 1959 sq/ft

Roof

Roof Framing : Trusses
Primary Pitch : 6:12
Roof Type : Concrete Tile

Exterior Wall Framing

Exterior Wall Finish : Brick, Siding, Shake
Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Breakfast Nook

Additional Room Features

Great Room Living Room
Storage Area

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

116 sq/ft width 10' x depth 11' 8"

Bedroom 3:

152 sq/ft width 13' 4" x depth 11' 5"

Dining Room:

44 sq/ft width 11' x depth 4'

Garage:

576 sq/ft width 29' 10" x depth 19' 4"

Great Room:

450 sq/ft width 25' x depth 18'

Kitchen:

162 sq/ft width 12' x depth 13' 6"

Master Bathroom:

106 sq/ft width 10' x depth 10' 8"

Master Bedroom:

289 sq/ft width 18' 6" x depth 15' 8"

Porch - Front:

85 sq/ft width 8' 6" x depth 10'

What's Included In This Plan Set

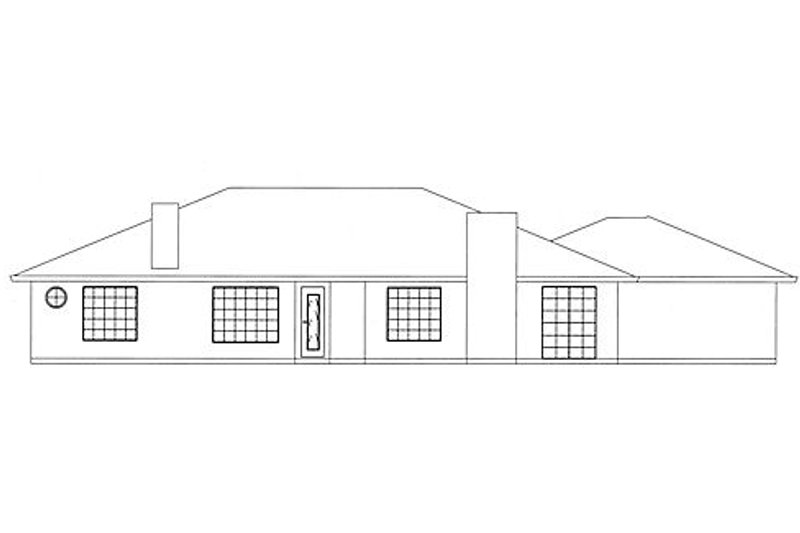

Exterior Elevations

Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

Floor Plan(s)

Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

Foundation Plan and Footings

The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

Roof Plan

Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

Building Sections & Details

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

Notes and Details Page(s)

The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.

» See important information before purchasing.

Plan Set

PDF Set : $800.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1250.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
