Full Specs & Features
Depth : 60'
Height : 30'
Width : 50'
First Floor: 1971 sq/ft height 9'
Garage: 618 sq/ft
Porch: 166 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone/Stucco
Framing : Wood - 2x6 Wood - 2x4
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Covered Front Porch
102 sq/ft width 10' x depth 10' 3"
107 sq/ft width 10' 3" x depth 10' 6"
153 sq/ft width 11' 3" x depth 13' 8"
Den/Office or Bedroom 4:
112 sq/ft width 10' x depth 11' 3"
246 sq/ft width 14' 6" x depth 17'
199 sq/ft width 12' 3" x depth 16' 3"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence

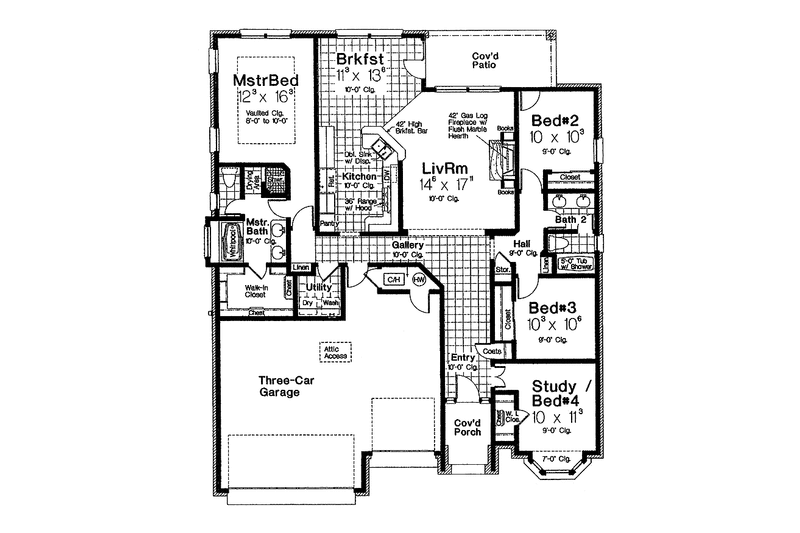

- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

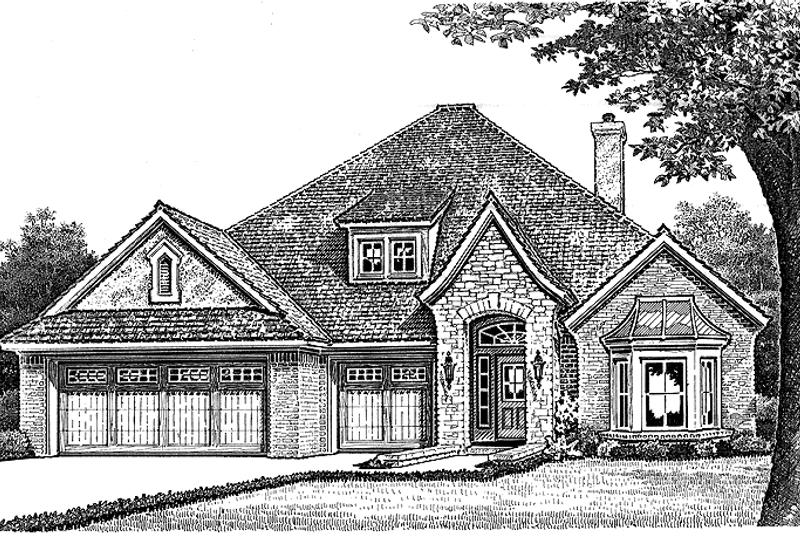

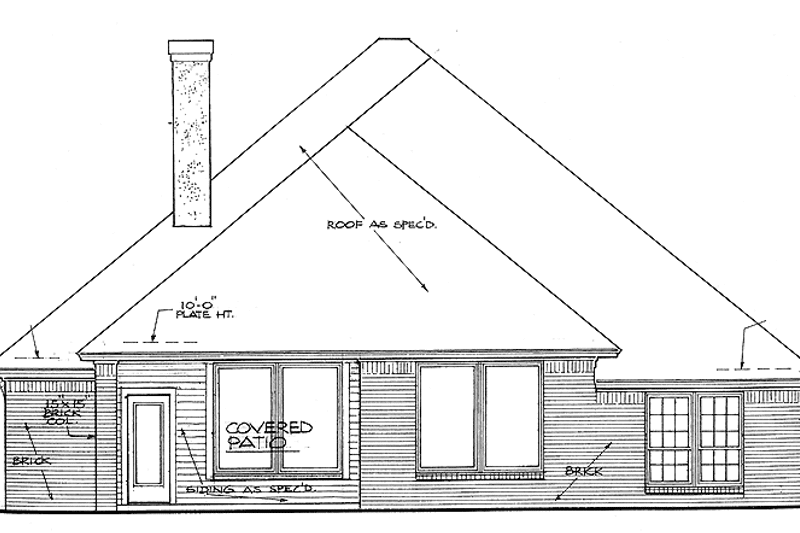

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
