PLAN #23-810

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

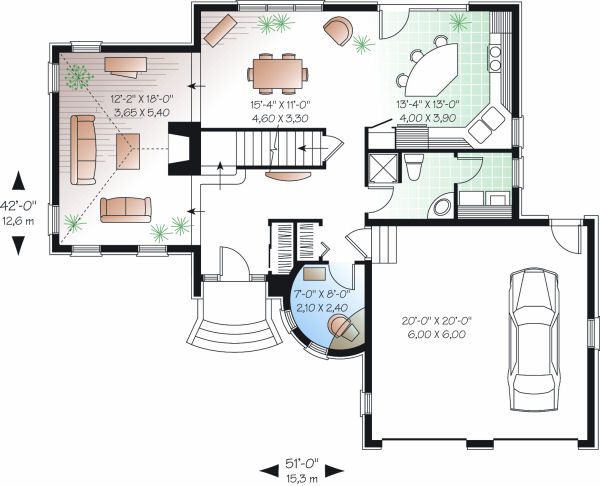

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #23-810

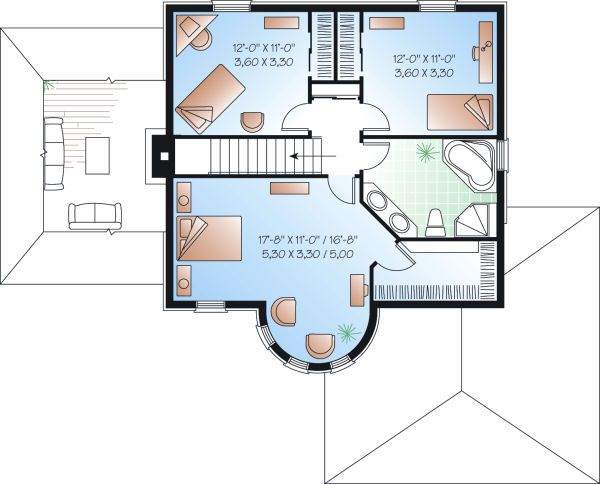

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #23-810

Full Specs & Features

Depth : 42'
Height : 34' 3"
Width : 51'
First Floor: 1062 sq/ft height 9'
Garage: 457 sq/ft
Second Floor: 910 sq/ft
Main Ceiling : 9'
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Master Sitting Area
Storage Area
Unfinished Future Space

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Dining Room:

168 sq/ft width 15' 4" x depth 11'

Family Room:

219 sq/ft width 12' 2" x depth 18'


400 sq/ft width 20' x depth 20'


173 sq/ft width 13' 4" x depth 13'

Master Bedroom:

194 sq/ft width 17' 8" x depth 11'

What's Included In This Plan Set

Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
