Full Specs & Features
Depth : 28'
Height : 28' 2"
Width : 60'

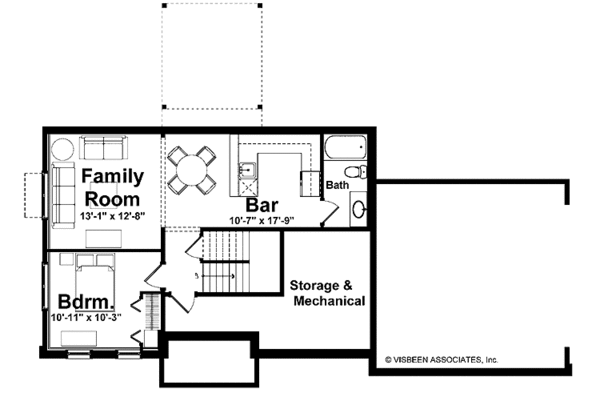

Basement Unfinished: 642 sq/ft height 9'

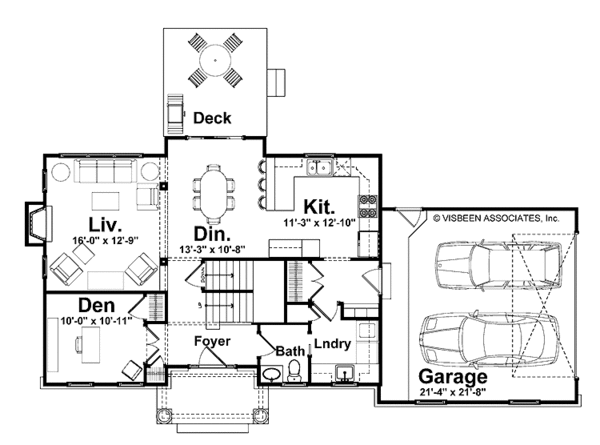

First Floor: 1001 sq/ft height 9'

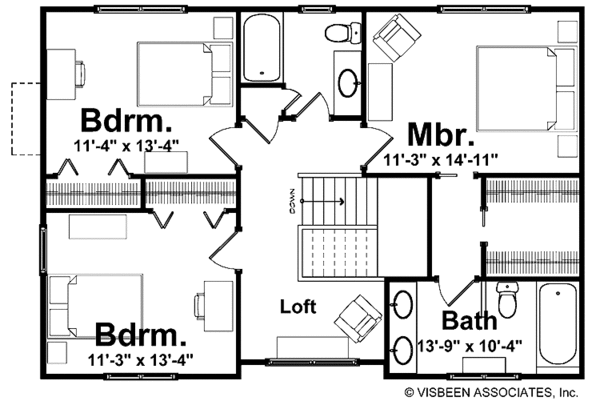

Second Floor: 978 sq/ft height 8'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Formal Living Room / Parlor
Upstairs Master Bedrooms
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Side Entry Garage
111 sq/ft width 10' 11" x depth 10' 3"
149 sq/ft width 11' 3" x depth 13' 4"
109 sq/ft width 10' x depth 10' 11"
141 sq/ft width 13' 3" x depth 10' 8"
462 sq/ft width 21' 4" x depth 21' 8"
144 sq/ft width 11' 3" x depth 12' 10"
204 sq/ft width 16' x depth 12' 9"
142 sq/ft width 13' 9" x depth 10' 4"
167 sq/ft width 11' 3" x depth 14' 11"
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
