PLAN 124-1074

Key Specs


1998
sq ft

2
Beds

2.5
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Perfect for bright and sunny climates or a beach side vacation retreat the Southport is a bright and cheery place to call home! The entry is tucked into the left side of the home to make sure that no views are missed from the living area. Once you step inside the entry opens straight into the great room which makes up the core of this design. A fireplace is all that separates the living area and the dining room and marks the transition to the vaulted great room. Richly windowed the great room is the perfect place to enjoy whatever view you may have be it mountains, lakes or ocean. The Southport offers two bedroom suites, one on the main level with it's own private patio access and the other on the second floor. Each suite has its own private bathroom and large walk-in closet.

Floor Plans

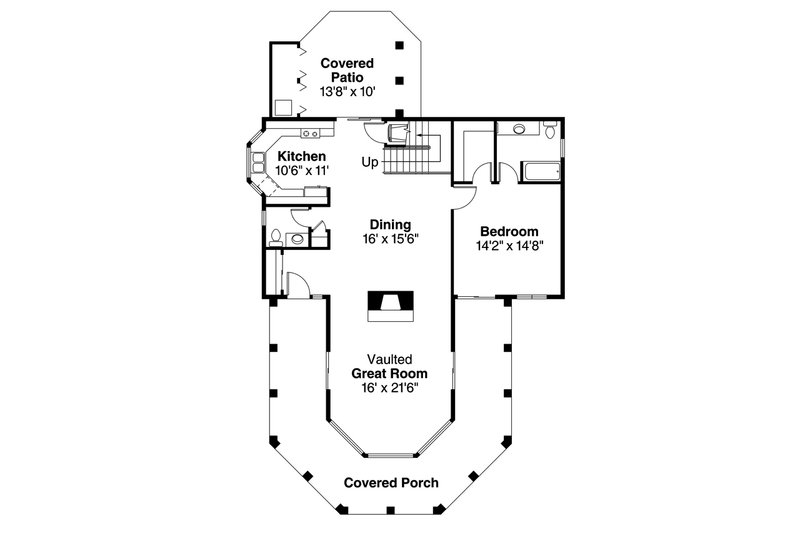

Floor Plan - Main Floor Plan
Reverse
Mediterranean Floor Plan - Main Floor Plan Plan #124-1074
Floor Plan - Upper Floor Plan
Reverse
Mediterranean Floor Plan - Upper Floor Plan Plan #124-1074

Full Specs & Features


Dimension
Depth : 62' 3"
Height : 23' 5"
Width : 42'
Area
Main Floor : 1306 sq/ft
Upper Floor : 692 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 5/12
Roof Framing : Truss/Stick
Roof Load : 30
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Main Floor Laundry
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
More
Suited For Vacation Home

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

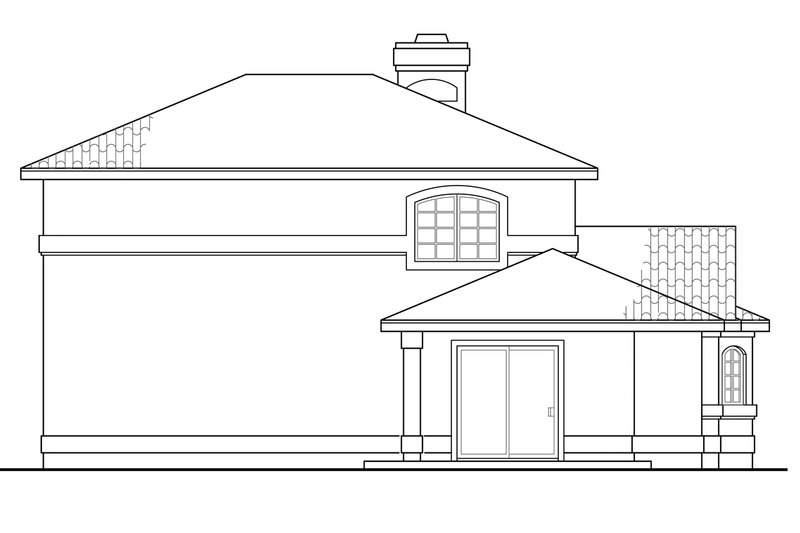

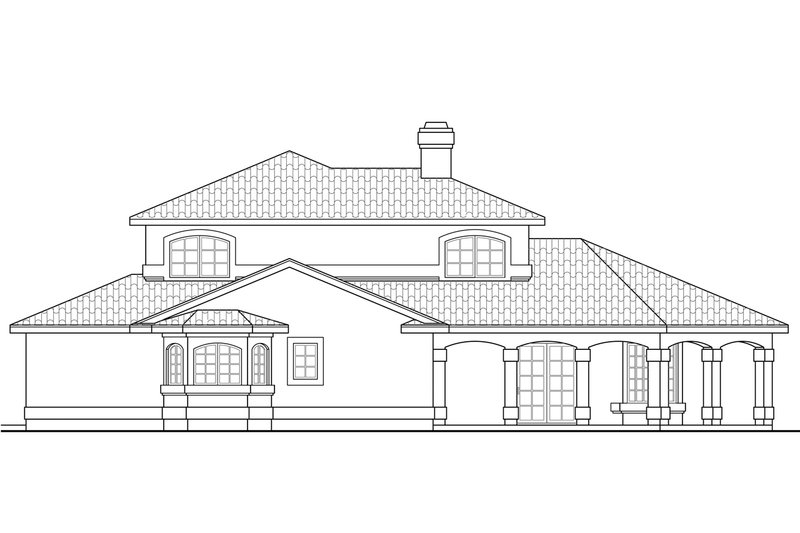

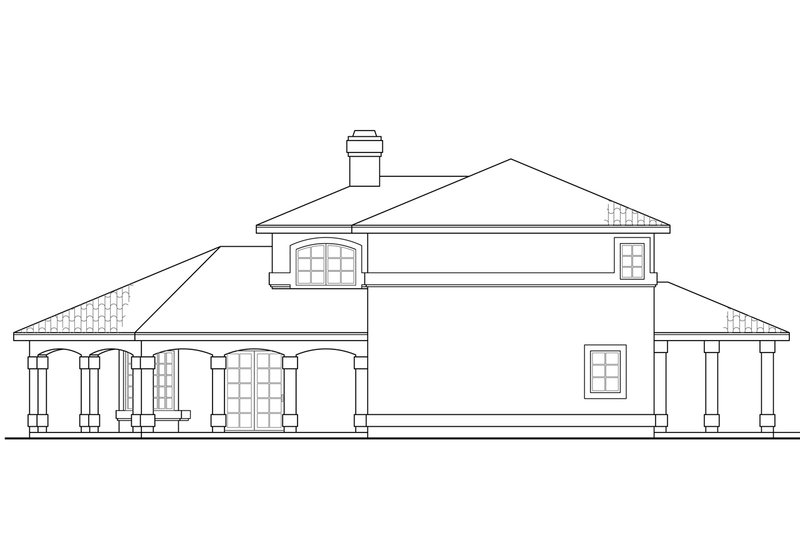

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
