PLAN #437-42

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

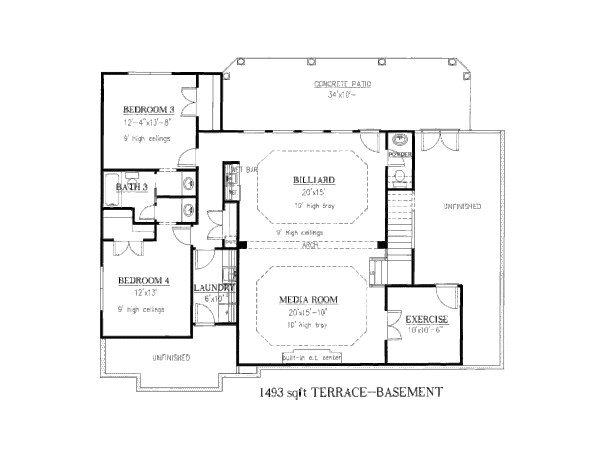

Floor Plan - Lower Floor Plan
Country Floor Plan - Lower Floor Plan Plan #437-42

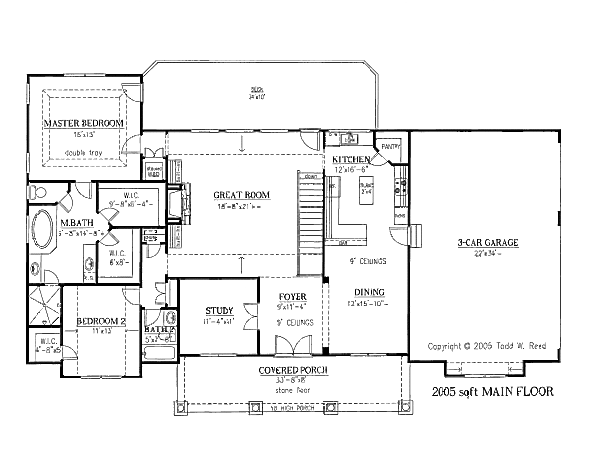

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #437-42

Full Specs & Features

Depth : 49'
Height : 25'
Width : 77'
Basement Living: 1493 sq/ft
Basement Unfinished: 507 sq/ft
First Floor: 2005 sq/ft
Garage: 760 sq/ft
Porch: 269 sq/ft
Roof Framing : Conventional Frame
Primary Pitch : 10:12
Roof Type : Asphalt Shingle
Exterior Wall Framing
Exterior Wall Finish : stone, siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Jack Jill Bath
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Media Room
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck

What's Included In This Plan Set

  • Exterior Elevations

    Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

  • Floor Plan(s)

    Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

  • Foundation Plan and Footings

    The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

  • Roof Plan

    Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

  • Building Sections & Details

    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

  • Notes and Details Page(s)

    The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
