PLAN #46-839

Key Specs


2007
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This one-level home offers split bedrooms, an optional formal dining room or library, a great room with a fireplace, and an open kitchen with an island. A nine-foot ceiling height is standard throughout, while the great room vaults to ten feet. A covered front porch and a touch of classic brick decorate the exterior elevation. The rear covered porch provides pleasant outdoor living space. Split bedrooms give privacy to the master suite, which is complete with a big walk-in closet, a generous shower, and two sinks. Don't miss the other walk-in closet, conveniently located on the way in from the garage. A full basement allows for future expansion if desired.

Floor Plans

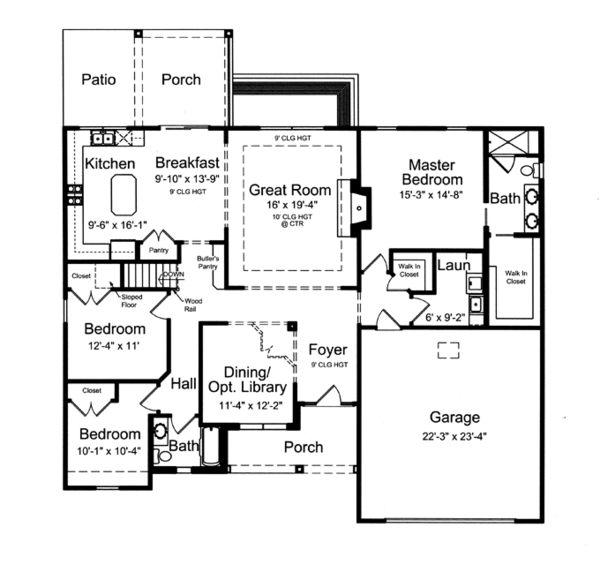

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Other Floor Plan
Floor Plan - Other Floor Plan

Full Specs & Features


Area Garage : 524 sq/ft
Main Floor : 2007 sq/ft
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features Kitchen Island
Additional Room Features Great Room Living Room
Main Floor Laundry
Open Floor Plan
Garage Features Front Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


Studer Residential Designs, Inc.

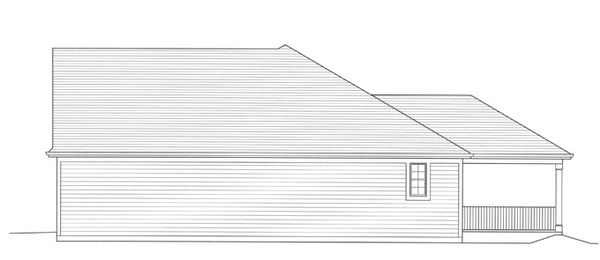

  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section show typical framing detail of house.
