Key Specs
2013
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
with Code CTB2023 (limit 1)
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Get the GuidePhone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 40-254
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

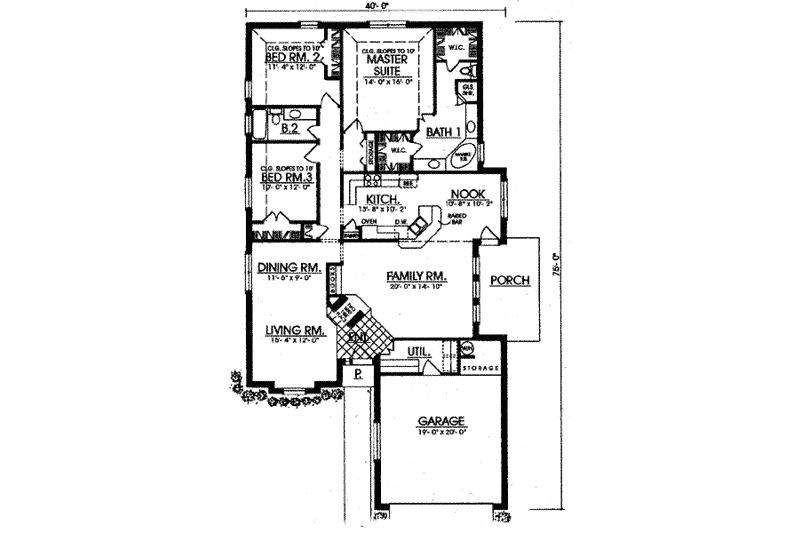

Floor Plans
Full Specs & Features
Dimension
Depth : 75'
Height : 22' 10"
Width : 40'
Area
First Floor: 2013 sq/ft
Garage: 462 sq/ft
Porch: 158 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Family Room Keeping Room
Storage Area
Lot Characteristics
Suited For Narrow Lot
Rooms
Bedroom 2:
135 sq/ft width 11' 3" x depth 12'
Bedroom 3:
120 sq/ft width 10' x depth 12'
Dining Room:
132 sq/ft width 11' 6" x depth 11' 6"
Family Room:
295 sq/ft width 20' x depth 14' 9"
Garage:
367 sq/ft width 18' 8" x depth 19' 8"
Kitchen:
138 sq/ft width 13' 8" x depth 10' 2"
Living Room:
130 sq/ft width 13' 1" x depth 10'
Master Suite:
221 sq/ft width 14' x depth 15' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$725.00
$815.00
$900.00
$1475.00
$625.00
Foundation
$0.00
Additional Options
$100.00
$50.00
$100.00
$39.00
$100.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
