PLAN #489-8

Key Specs


2013
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Compact efficiency aptly describes this classic Cape Cod plan. You will be thrilled to learn that each bedroom has it;s own private bath and that there is a first floor half bath for guests. Upstairs, a great bonus room awaits your creativity for use as extra living space, home office, or recreation room. You can even plan to grow into this home by leaving the upstairs unfinished for now and finishing the attic space as you needs change. Don't forget the huge storage attic over the garage for holiday decorations and other rarely used items.

Floor Plans

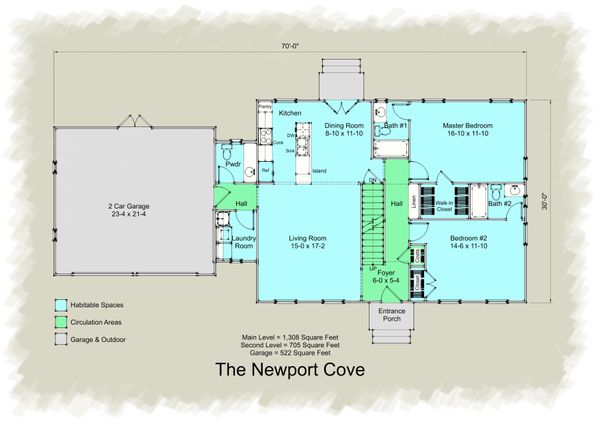

Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #489-8

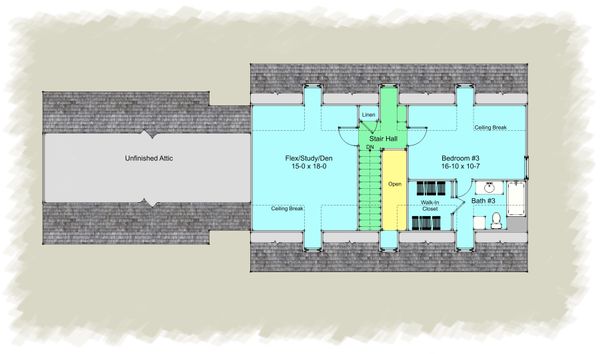

Floor Plan - Upper Floor Plan
Colonial Floor Plan - Upper Floor Plan Plan #489-8

Full Specs & Features


Dimension
Depth : 30'
Height : 24'
Width : 70'
Area
Bonus : 303 sq/ft
Garage : 522 sq/ft
Main Floor : 1308 sq/ft
Upper Floor : 705 sq/ft
Ceiling
Ceiling Details : Suited for Traditional Crown Moldings
Garage Ceiling : 8' 4"
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Roof Framing : 2x8 Rafters @ 24 Inches On Center
Primary Pitch : 10:12
Roof Type : Sticked Framed Gable
Exterior Wall Framing
Insulation : As Required Locally
Exterior Wall Finish : Wood Shingle or Fiber Board
Framing : 2x4 @ 16 Inches On Center
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Play Flex Room
Unfinished Future Space
Garage Features
Front Entry Garage
More
Economical To Build
Empty Nester

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
