PLAN 928-160

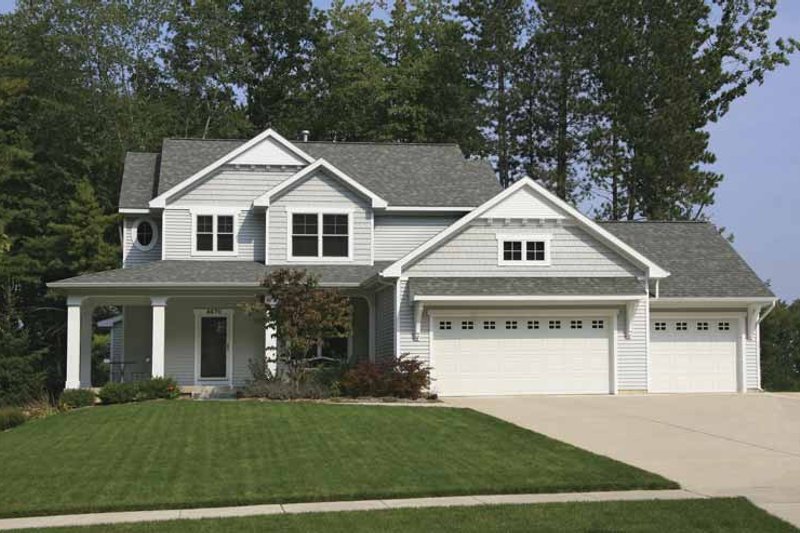

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

2021
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$995.00
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 928-160

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Full Specs & Features


Dimension

Depth : 46'

Height : 29' 6"

Width : 58'

Area

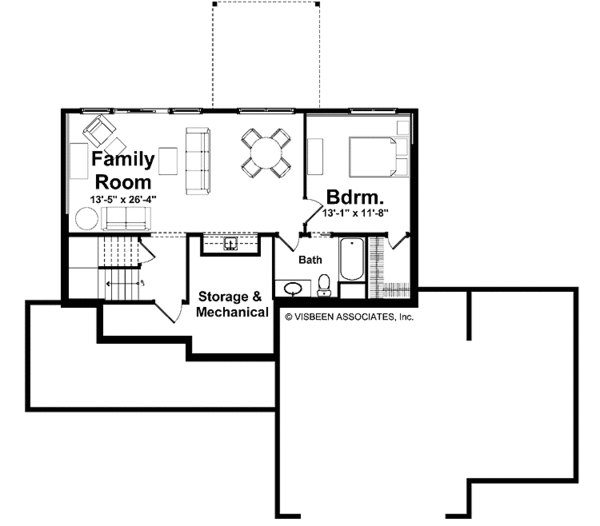

Basement Unfinished: 716 sq/ft height 8'

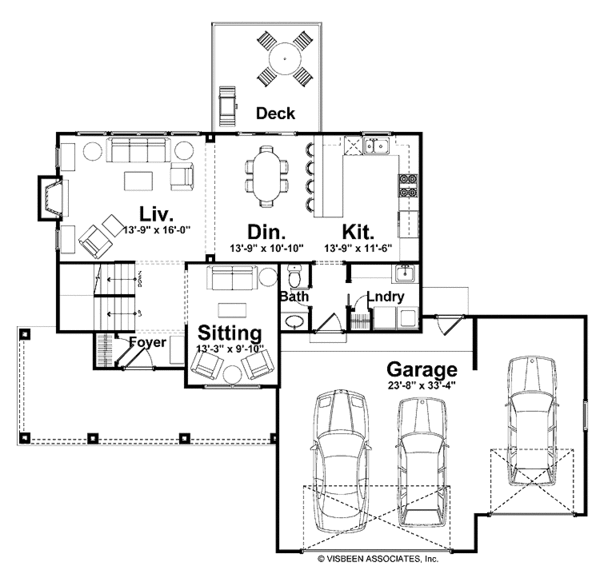

First Floor: 992 sq/ft height 9'

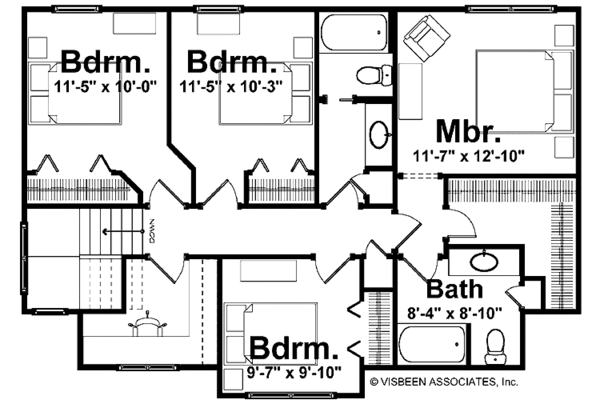

Second Floor: 1029 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Living Room / Parlor

Guest Suite

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Mud Room

Open Floor Plan

Unfinished Future Space

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Deck

Rooms

Bathroom 1:

75 sq/ft width 8' 7" x depth 8' 10"

Bedroom 1:

114 sq/ft width 11' 5" x depth 10'

Bedroom 2:

117 sq/ft width 11' 5" x depth 10' 3"

Bedroom 3:

94 sq/ft width 9' 7" x depth 9' 10"

Dining Room:

148 sq/ft width 13' 9" x depth 10' 10"

Kitchen:

158 sq/ft width 13' 9" x depth 11' 6"

Living Room:

220 sq/ft width 13' 9" x depth 16'

Master Bedroom:

148 sq/ft width 11' 7" x depth 12' 10"

Sitting Area:

130 sq/ft width 13' 3" x depth 9' 10"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse:
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
