Full Specs & Features
Depth : 67'
Height : 27'
Width : 55'
Bonus: 347 sq/ft

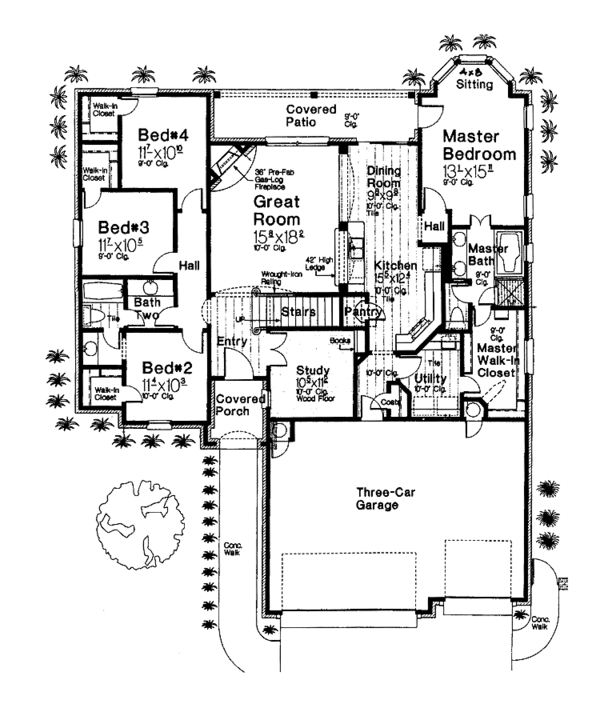

First Floor: 2040 sq/ft
Garage: 748 sq/ft
Porch: 540 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Covered Front Porch
116 sq/ft width 11' 4" x depth 10' 3"
120 sq/ft width 11' 7" x depth 10' 5"
125 sq/ft width 11' 7" x depth 10' 10"

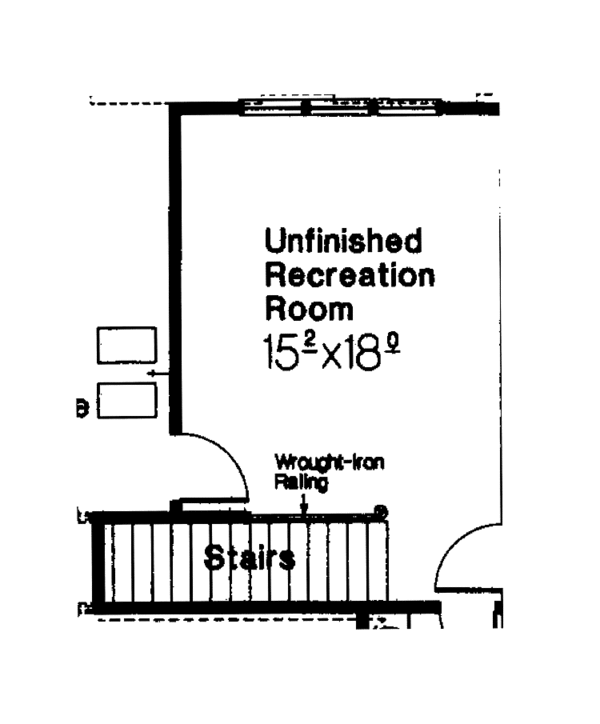

Bonus Room - Unfinished:
273 sq/ft width 15' 2" x depth 18'
93 sq/ft width 9' 8" x depth 9' 8"
284 sq/ft width 15' 8" x depth 18' 2"
190 sq/ft width 15' 5" x depth 12' 4"
208 sq/ft width 13' 1" x depth 15' 11"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
