PLAN 48-114
Key Specs
2044
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 48-114
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 35'
Height : 39'
Width : 38'
Height : 39'
Width : 38'
Area

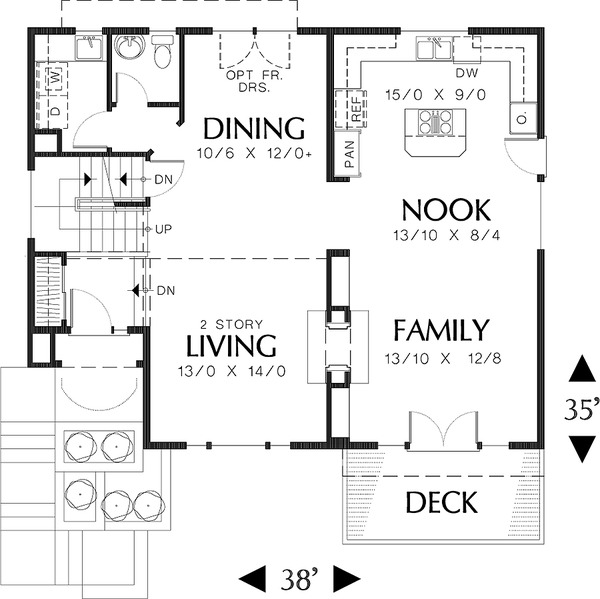

First Floor: 1106 sq/ft height 8'

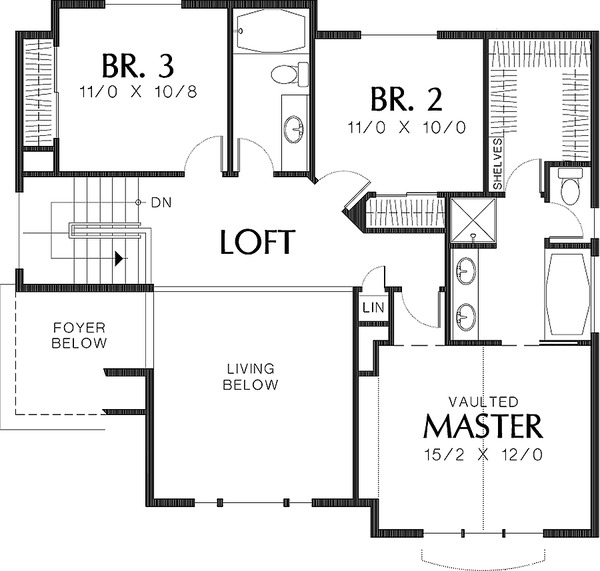

Second Floor: 872 sq/ft
Second Floor: 872 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Great Room Living Room
Loft
Garage Features
Garage Under
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
Rooms
Bedroom 2:
110 sq/ft width 11' x depth 10'
Bedroom 3:
117 sq/ft width 11' x depth 10' 8"
Breakfast Room:
115 sq/ft width 13' 10" x depth 8' 4"
Dining Room:
126 sq/ft width 10' 6" x depth 12'
Garage:

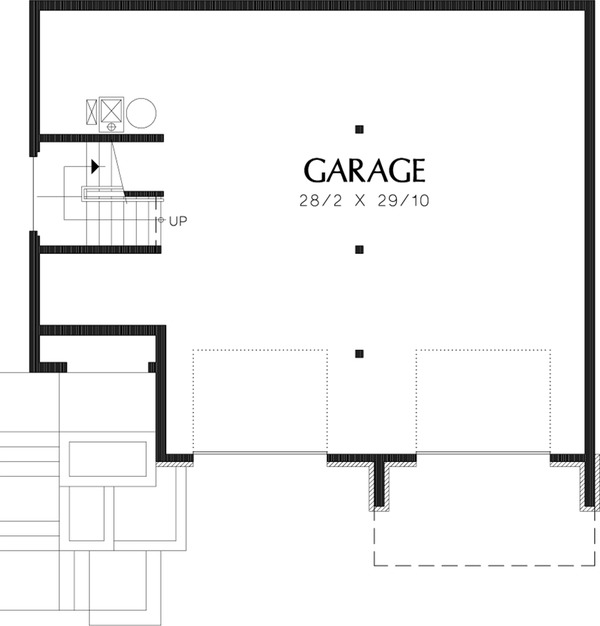

840 sq/ft width 28' 2" x depth 29' 10"
Gathering Room:
285 sq/ft width 13' 10" x depth 20' 8"
Kitchen:
135 sq/ft width 15' x depth 9'
Living Room:
182 sq/ft width 13' x depth 14'
Master Bedroom:
182 sq/ft width 15' 2" x depth 12'
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
