PLAN 45-586
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Designed as the ultimate owner’s suite, the MBR boast cathedral ceilings and plenty of space for a sitting area. The owner’s suite bath features include his and hers vanities, king sized walk-in closet, spa tub and a separate shower. The two secondary bedrooms have gracious amounts of closet space and share a jack and Jill bath with twin vanities. A half bath is tucked into a private part of the home and ideal for guest accommodations. The living area, dining and kitchen have 12’ volume ceilings with grand paladin style windows. The kitchen is gourmet sized and features a large pantry plus all of the usual appointments. A spacious utility room is positioned to serve as a stop and drop area and it features abundant storage cubicles and storage closets. A rear porch has a glass ceiling for allowing solar gain into the living room and a large adjacent patio is ideal for outdoor entertaining. The man of the house will be pleased with the oversized garage which includes storage cabinets and a storage room.
Floor Plans

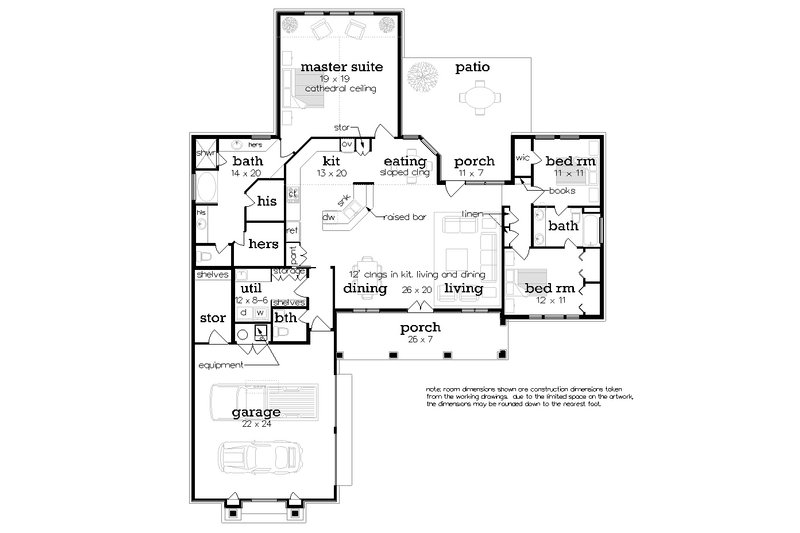

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 78'
Height : 29'
Width : 63'
Area
Garage : 541 sq/ft
Main Floor : 2050 sq/ft
Porch : 264 sq/ft
Storage : 69 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 12' IN LIVING, DINING AND KITCHEN
Garage Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 12:12
Roof Framing : STICK
Secondary Pitch : 6:12
Exterior Wall Framing
Framing : 2X6
Insulation : R38
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Additional Half Bath
Jack & Jill Bath
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
- Information Cover Sheet
- Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
- Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
- Exterior Views
- Building Sections & Interior Elevations
- Complete Construction Details
- Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1200.00
$1200.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1280.00
$1280.00
5 printed plan sets mailed to you.
8 Copy Set:
$1340.00
$1340.00
8 printed plan sets mailed to you.
5 Copy and PDF Set:
$1355.00
$1355.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2100.00
$2100.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Monolithic Slab:
$0.00
$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$45.00
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$75.00
$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
