Photographs may show modified designs.
PLAN 1073-23
Key Specs
2051
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 1073-23
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

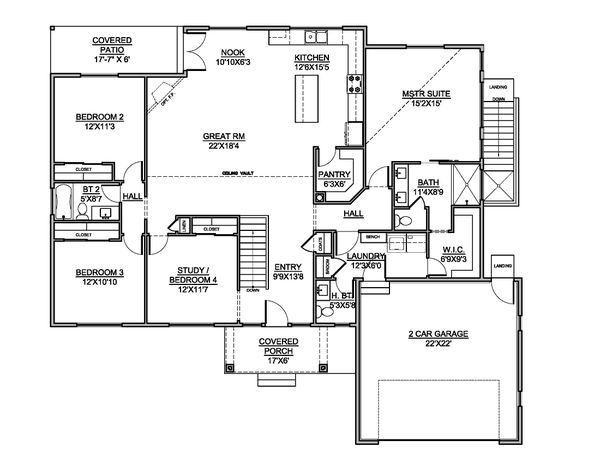

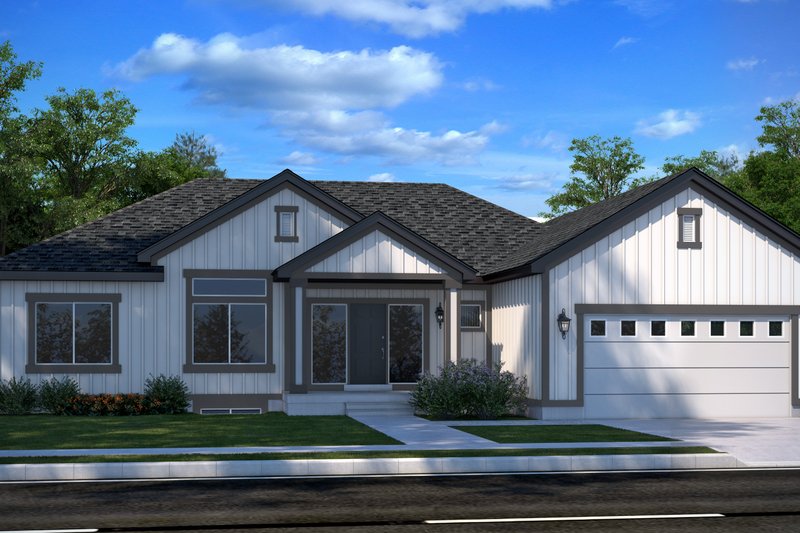

Country Home with a ultra modern Kitchen and oversized Great Room featuring 3 bedrooms plus an optional 4th bedroom or Study. Ceilings in Entry, nook, Kitchen and Great Room are all vaulted along with the Master Bedroom. This home features an unfinished basement pre-designed for an additional 3 bedroom apartment with walk out exterior stair well.
Full Specs & Features
Dimension
Depth : 55' 4"
Height : 21' 10"
Width : 62' 5"
Height : 21' 10"
Width : 62' 5"
Area
Basement : 2037 sq/ft
Garage : 473 sq/ft
Lower Floor : 19 sq/ft
Main Floor : 2032 sq/ft
Patios : 109 sq/ft
Porch : 107 sq/ft
Garage : 473 sq/ft
Lower Floor : 19 sq/ft
Main Floor : 2032 sq/ft
Patios : 109 sq/ft
Porch : 107 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 7' 8"
Main Ceiling : 8' 1"
Main Ceiling : 8' 1"
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Load : 30LL / 15DL
Roof Type : Truss
Secondary Pitch : 6:12
Roof Framing : Conventional
Roof Load : 30LL / 15DL
Roof Type : Truss
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
Insulation : R21
Framing : 2 x 6
Insulation : R21
Bedroom Features
Split Bedrooms
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Unfinished Future Space
Great Room Living Room
Mud Room
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Additional Half Bath
Economical To Build
Economical To Build
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set
: $995.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set
: $1175.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Eight Copy and PDF Set
: $1275.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Single Build
: $1595.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set
: $995.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $250.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Daylight Basement: $250.00 |
Ideal for sloping lot, lower level of home partially underground. |
| Slab: $250.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Walk Out Basement: $250.00 |
Ideal for a sloping lot, lower level with outdoor access. |
| Partial Basement: $500.00 |
Ideal for builds where a full basement is not necessary or site conditions don’t allow for excavation. Typically combined with a slab or crawlspace. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
| Wood 2x4: $250.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse
: $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $100.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License
: $500.00 |
Additional Use License. |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
