PLAN #410-3594

Key Specs


2056
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

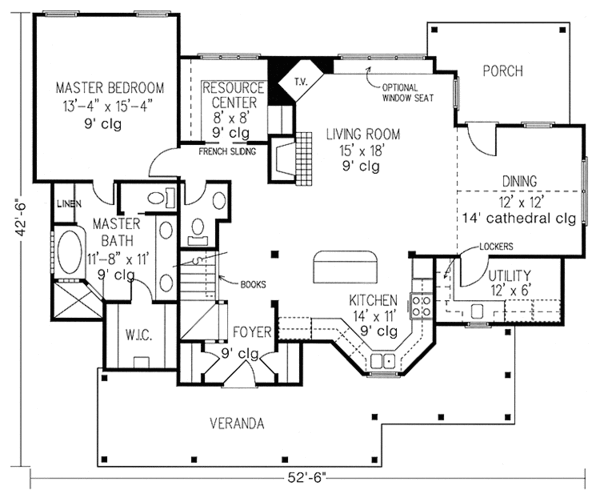

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #410-3594

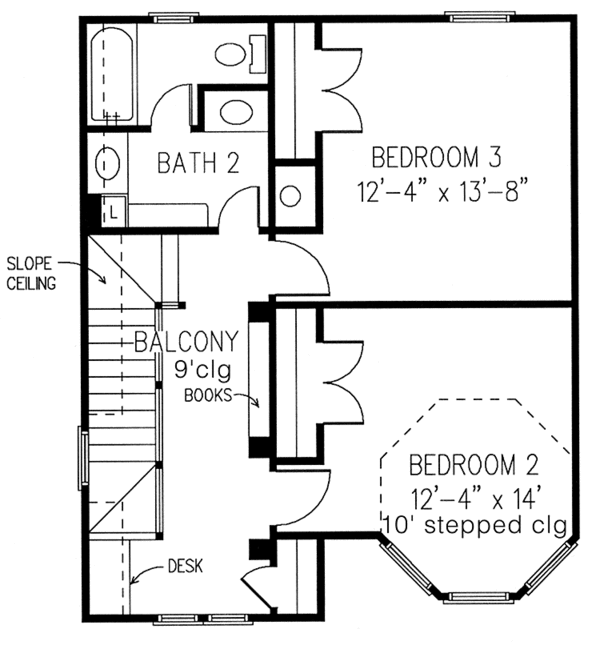

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #410-3594

Full Specs & Features


Dimension
Depth : 43'
Height : 30'
Width : 53'
Area
First Floor: 1410 sq/ft height 9'
Second Floor: 646 sq/ft height 8'
Bedroom Features
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Garage Features
Detached Garage
Outdoor Spaces
Covered Front Porch
Loft Balcony
Rooms

Bedroom 2:

172 sq/ft width 12' 4" x depth 14'

Bedroom 3:

168 sq/ft width 12' 4" x depth 13' 8"

Computer Room:

64 sq/ft width 8' x depth 8'

Dining Room:

144 sq/ft width 12' x depth 12'

Kitchen:

154 sq/ft width 14' x depth 11'

Living Room:

270 sq/ft width 15' x depth 18'

Master Bathroom:

128 sq/ft width 11' 8" x depth 11'

Master Bedroom:

204 sq/ft width 13' 4" x depth 15' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$774.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$864.00
5 printed plan sets mailed to you.
8 Copy Set :
$954.00
8 printed plan sets mailed to you.
Reproducible Set :
$954.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$684.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
