PLAN #513-2104

Select Plan Set Options
What's included?
Additional Construction Sets
NOW $832.50
You save $92.50
(10% savings)
Sale ends 3/28/18
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions? Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #513-2104

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

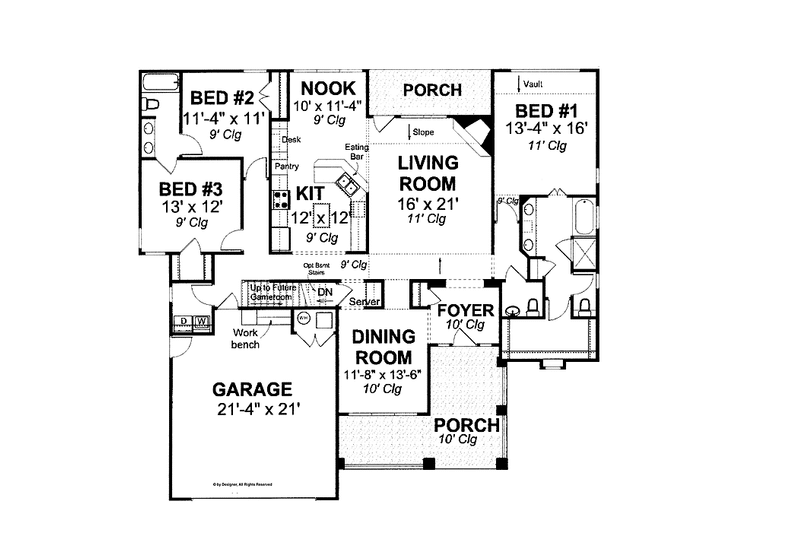

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #513-2104

Full Specs & Features

Depth : 56'
Height : 28'
Width : 60'
First Floor: 2056 sq/ft
Garage: 531 sq/ft
Bedroom Features
Split Bedrooms
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 1:

213 sq/ft width 13' 4" x depth 16'

Bedroom 2:

124 sq/ft width 11' 4" x depth 11'

Bedroom 3:

156 sq/ft width 13' x depth 12'

Dining Room:

157 sq/ft width 11' 8" x depth 13' 6"


447 sq/ft width 21' 4" x depth 21'


144 sq/ft width 12' x depth 12'

Kitchen Island:

6 sq/ft width 2' x depth 3'

Living Room:

336 sq/ft width 16' x depth 21'

Master Bathroom:

149 sq/ft width 9' 8" x depth 15' 6"

Master Closet:

58 sq/ft width 11' 4" x depth 5' 2"


113 sq/ft width 10' x depth 11' 4"

Utility Room:

32 sq/ft width 5' 2" x depth 6' 4"

What's Included In This Plan Set

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

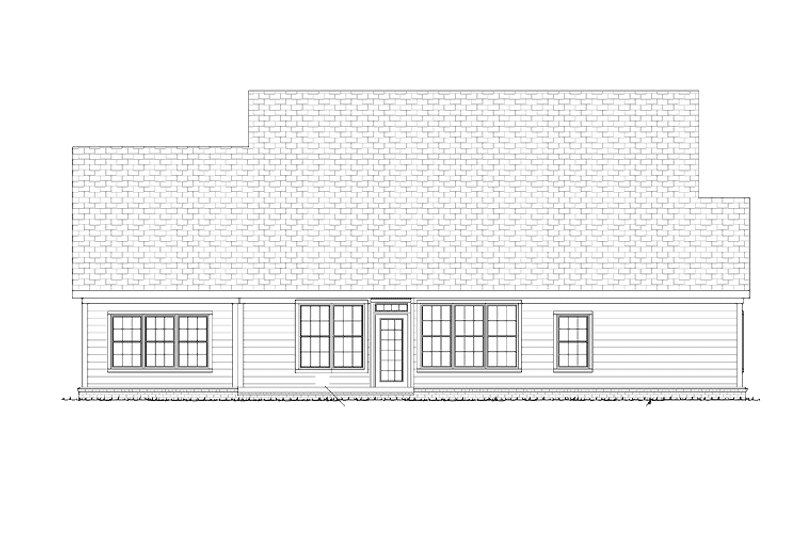

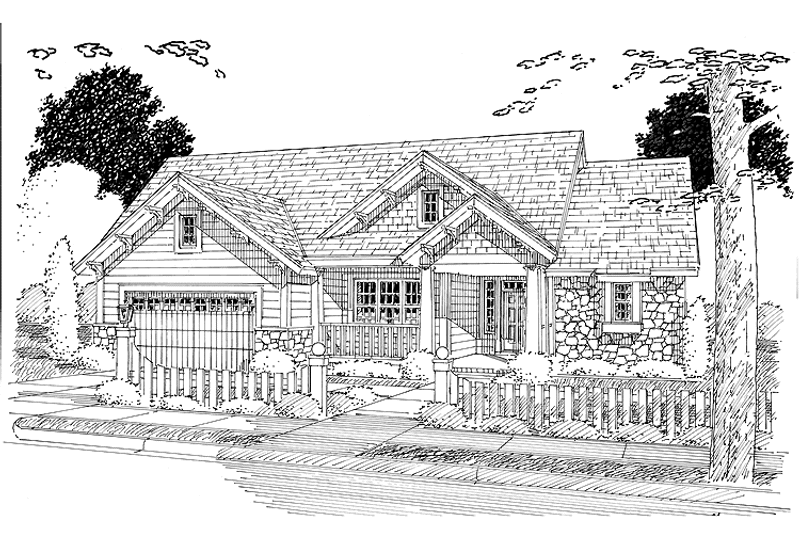

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Wood 2x4:
Wood 2x4
Wood 2x6:
Wood 2x6
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
