PLAN 124-1130
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Vacation homes are all about the views. This one is prepared to take advantage of a scenic site, with a spacious deck, covered porch, and wall of windows. The vaulted great room encourages mingling around the kitchen’s island or near the cozy fireplace. Two bedrooms sit on this level, while the best view are reserved for the primary suite upstairs.
Floor Plans
Floor Plan - Other Floor
Floor Plan - Other Floor

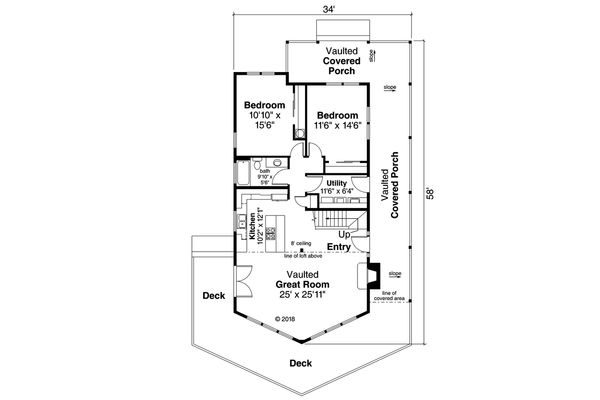

Floor Plan - Main Floor

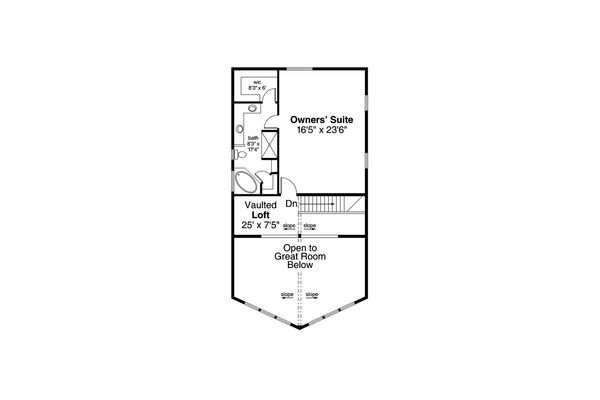

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 58'
Height : 24'
Width : 34'
Area
Main Floor : 1253 sq/ft
Upper Floor : 807 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10/12
Roof Framing : Truss/Stick
Roof Load : 95
Exterior Wall Framing
Exterior Wall Finish : Lap
Framing : 2x6
Bedroom Features
Fireplace
Main Floor Bedrooms
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
Wrap Around Porch
Rooms
Bedroom 1:
width 10' 10" x depth 15' 6"
Bedroom 1 Bath:
width 9' 10" x depth 5' 6"
Bedroom 2:
width 11' 6" x depth 14' 6"
Great Room:
width 25' x depth 25' 11"
Kitchen:
width 10' 2" x depth 12' 1"
Loft:
width 25' x depth 7' 5"
Owners Suite W.I.C:
width 8' 3" x depth 6'
Owners' Suite:
width 16' 5" x depth 23' 6"
Owners' Suite Bath:
width 8' 3" x depth 17' 4"
Utility:
width 11' 6" x depth 6' 4"
What's Included In This Plan Set
Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set.
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
» See important
information before purchasing.
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
