PLAN 137-358
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 86' 5"
Height : 27'
Width : 33' 2"
Area
Basement Unfinished: 1473 sq/ft
Bonus: 450 sq/ft
First Floor: 1473 sq/ft height 9'
Garage: 595 sq/ft
Second Floor: 592 sq/ft height 9'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Additional Room Features
Great Room Living Room
Sunroom
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
Bedroom 2:
161 sq/ft width 13' x depth 12' 5"
Bedroom 3:
161 sq/ft width 13' x depth 12' 5"
Dining Room:
206 sq/ft width 14' 3" x depth 14' 6"
Garage:
526 sq/ft width 21' 6" x depth 24' 6"
Great Room:
359 sq/ft width 20' 11" x depth 17' 2"
Kitchen:
161 sq/ft width 12' 5" x depth 13'
Master Bedroom:
211 sq/ft width 15' 1" x depth 14'
Porch - Front:
281 sq/ft width 31' 2" x depth 9'
Porch - Screened:
147 sq/ft width 8' 7" x depth 17'
Recreation Room:
369 sq/ft width 17' 2" x depth 21' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

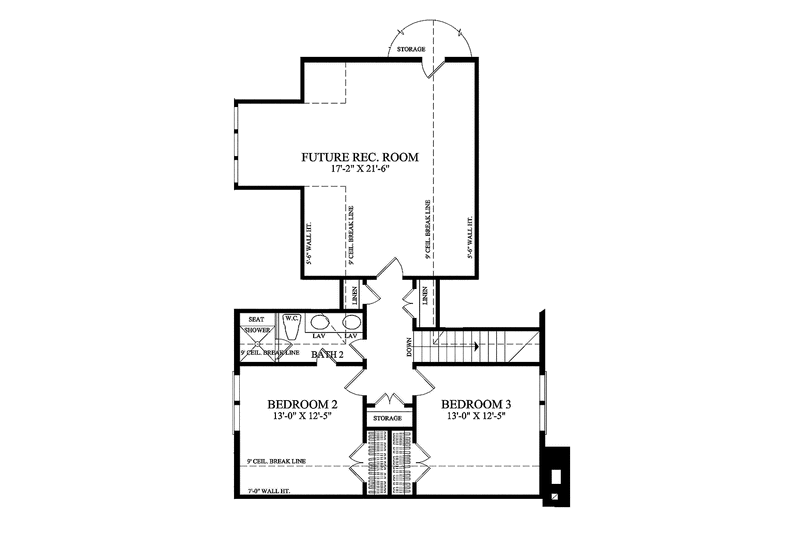

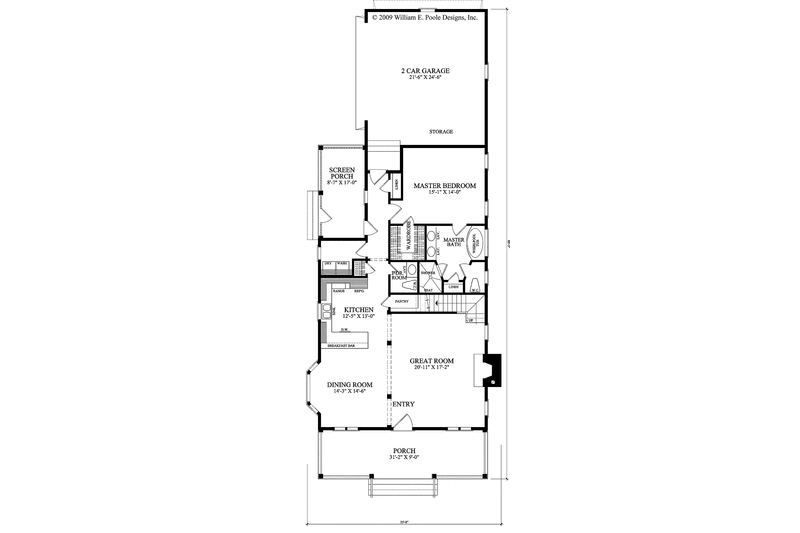

- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

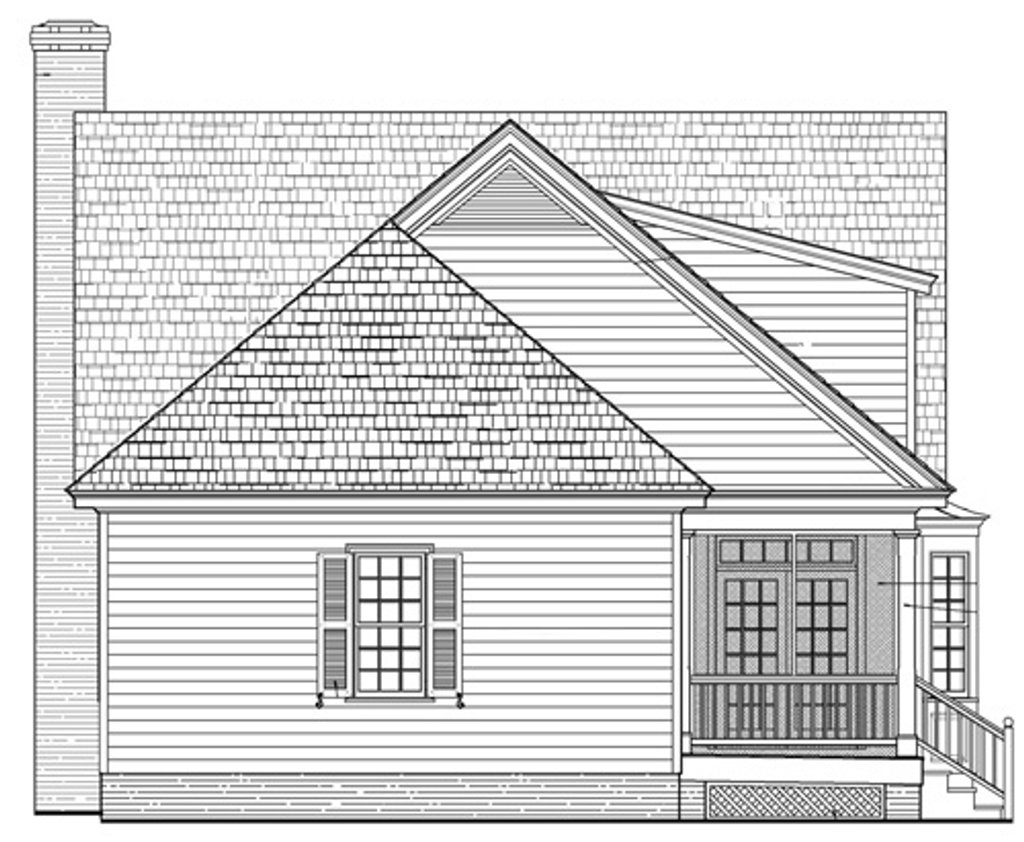

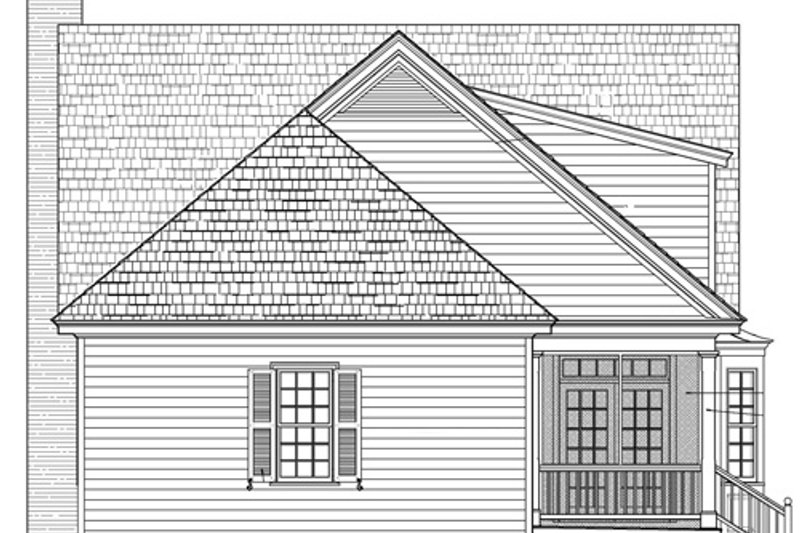

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Rendering(s): Designer’s rendering of front elevation
Plan Set
$680.00
$743.75
$935.00
$935.00
$595.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$46.75
$140.25
$250.75
$33.15
$140.25
$42.50
