PLAN 17-2417
Key Specs
2094
sq ft
4
Beds
2
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 17-2417
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 64' 4"
Height : 29' 6"
Width : 58' 8"
Height : 29' 6"
Width : 58' 8"
Area
Bonus: 302 sq/ft
First Floor: 2094 sq/ft height 9'
Garage: 458 sq/ft
Porch: 504 sq/ft
First Floor: 2094 sq/ft height 9'
Garage: 458 sq/ft
Porch: 504 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 0:0
Roof Framing : stick
Roof Load : 45
Roof Type : shingle
Roof Framing : stick
Roof Load : 45
Roof Type : shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x4"
Insulation : R13
Framing : 2"x4"
Insulation : R13
Bedroom Features
Split Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Eating Bar
Additional Room Features
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space
Play Flex Room
Storage Area
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Covered Rear Porch
Grill Deck Sundeck
Rooms
Bathroom 2:
66 sq/ft width 13' 4" x depth 5'
Bedroom 2:
127 sq/ft width 12' 2" x depth 10' 6"
Bedroom 3:
130 sq/ft width 11' x depth 11' 10"
Bedroom 4:
200 sq/ft width 14' 6" x depth 13' 10"

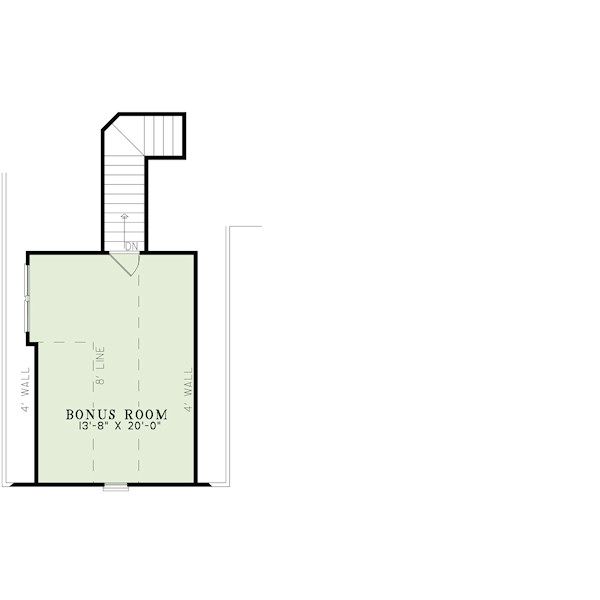

Bonus Room - Unfinished:
273 sq/ft width 13' 8" x depth 20'
Breakfast Room:
92 sq/ft width 9' 8" x depth 9' 7"
Dining Room:
154 sq/ft width 12' 6" x depth 12' 4"
Garage:
436 sq/ft width 20' x depth 21' 10"
Great Room:
309 sq/ft width 16' x depth 19' 4"
Grilling Porch:
324 sq/ft width 27' x depth 12'
Kitchen:
146 sq/ft width 9' 11" x depth 14' 9"
Laundry Room:
53 sq/ft width 6' 8" x depth 8'
Master Bathroom:
256 sq/ft width 14' 3" x depth 18'
Master Suite:
213 sq/ft width 14' 3" x depth 15'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

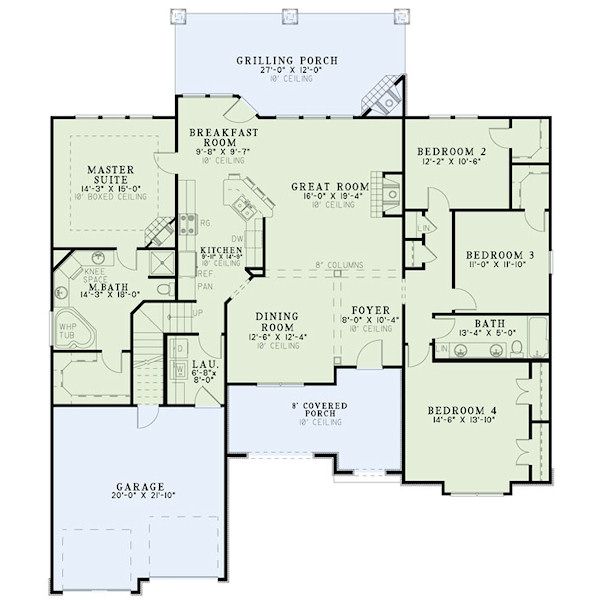

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

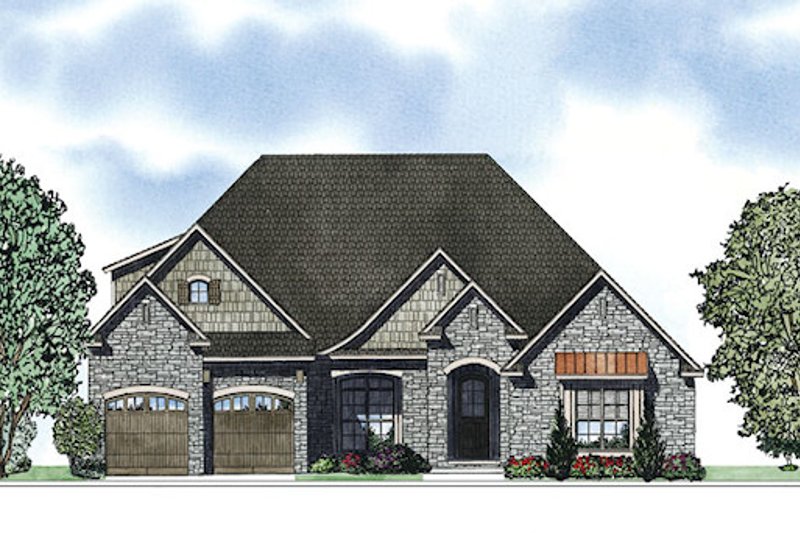

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
