PLAN 117-883
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

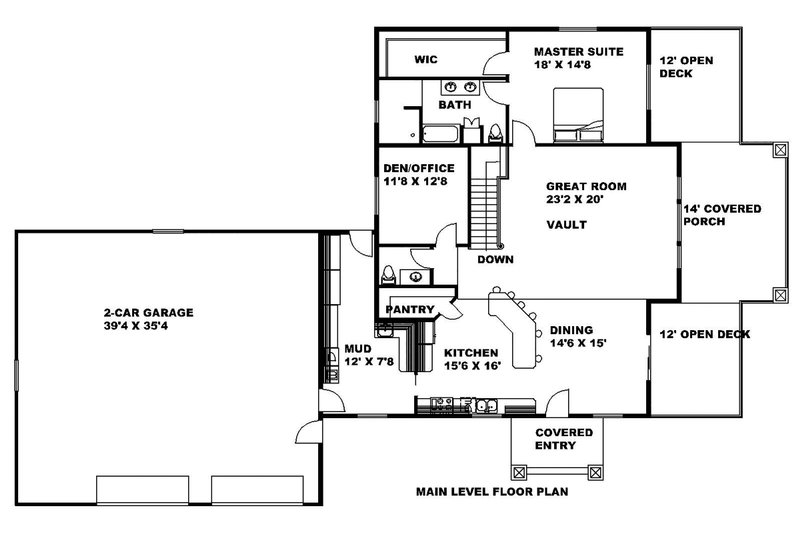

Floor Plan - Main Floor

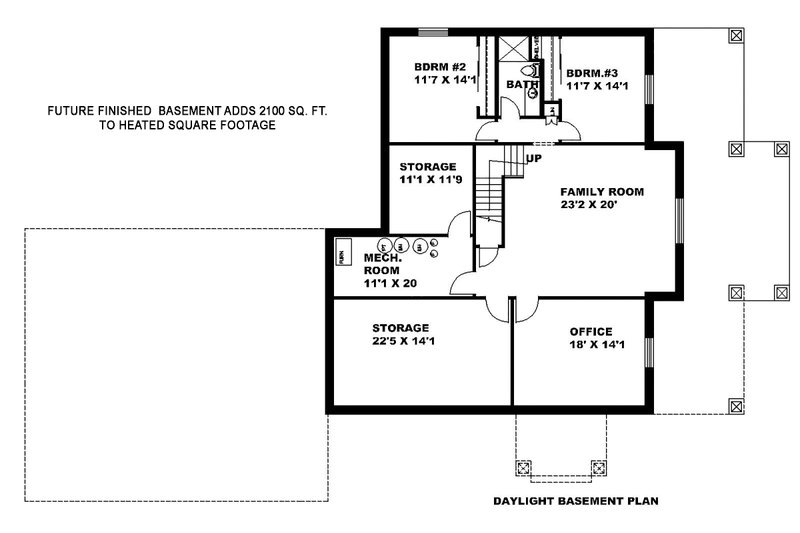

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 62' 6"
Height : 30' 2"
Width : 87'
Area
Garage : 1428 sq/ft
Lower Floor : 2100 sq/ft
Main Floor : 2100 sq/ft
Porch : 382 sq/ft
Ceiling
Lower Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 6/12
Roof Framing : Truss/Stick
Roof Type : Composition/Shake
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding/Shingle
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
width 11' 7" x depth 14' 1"
Bedroom 3:
width 11' 7" x depth 14' 1"
Den/Office:
width 11' 8" x depth 12' 8"
Family Room:
width 23' 2" x depth 20'
Garage:
width 39' 4" x depth 35' 4"
Great Room:
width 23' 2" x depth 20'
Kitchen:
width 15' 6" x depth 16'
Master Suite:
width 18' x depth 14' 8"
Mech Room:
width 11' 1" x depth 20'
Mudroom:
width 12' x depth 7' 8"
Office:
width 18' x depth 14' 1"
Storage:
width 11' 1" x depth 11' 9"
What's Included In This Plan Set
- Foundation Plan(s): Footing locations, foundation details, etc.
- Floor Plan(s): Layout of floor plan, window/door schedule, interior and exterior dimensions
- Exterior Elevations: Exterior on all four sides, siding notes, roof pitches, garage door heights, etc.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Cut-through view of home. Shows foundation, insulation, wall construction, ceiling heights, etc.
- Electrical Plan(s): Lighting, switches, electrical outlet placement throughout home.
- Detail Sheet(s): Additional structural details included in most log and ICF plans. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Construction Notes / Detail(s): Referencing the entirety of the project.
- Framing Detail(s): Location of supporting walls and beams. Location/spacing of floor joists, floor framing details. Layout of roof, roof framing details, truss/rafter locations, connection details etc. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Plan Set
$1100.75
$1100.75
$1695.75
Foundation
$0.00
Framing
$0.00
Additional Options
$165.75
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
