PLAN 48-401
Key Specs
2100
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 48-401
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 45'
Height : 29'
Width : 34'
Height : 29'
Width : 34'
Area

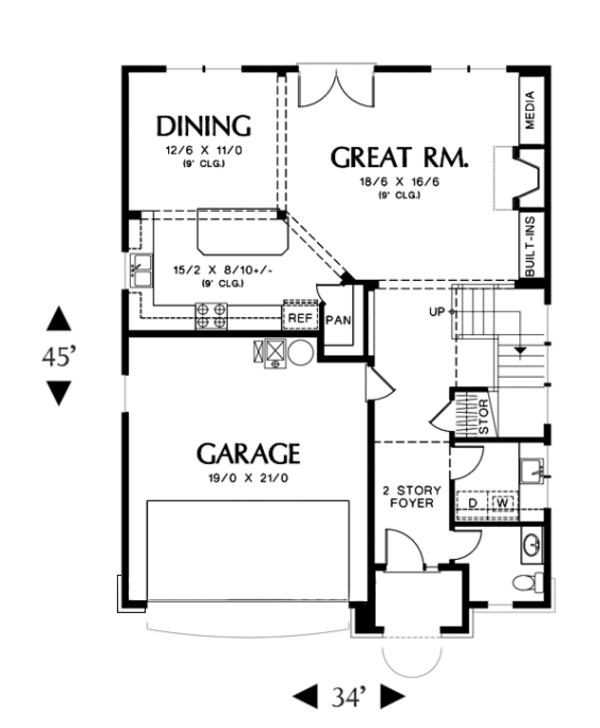

First Floor: 1028 sq/ft

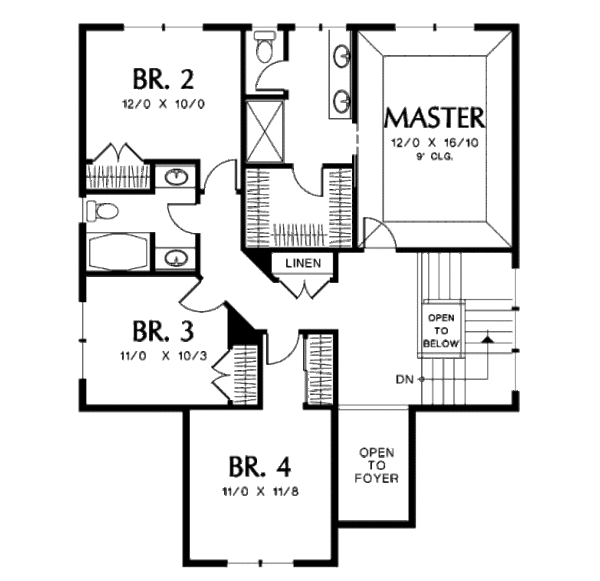

Second Floor: 1072 sq/ft
Second Floor: 1072 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Truss
Roof Type : Shingle
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Storage Area
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
120 sq/ft width 12' x depth 10'
Bedroom 3:
112 sq/ft width 11' x depth 10' 3"
Bedroom 4:
128 sq/ft width 11' x depth 11' 8"
Dining Room:
137 sq/ft width 12' 6" x depth 11'
Garage:
399 sq/ft width 19' x depth 21'
Great Room:
305 sq/ft width 18' 6" x depth 16' 6"
Kitchen:
133 sq/ft width 15' 2" x depth 8' 10"
Master Bedroom:
201 sq/ft width 12' x depth 16' 10"
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $1321.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $1496.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $1546.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $2642.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set : $971.00 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $156.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $328.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $175.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
