Full Specs & Features
Depth : 67'
Height : 21'
Width : 57' 8"
First Floor: 2109 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Covered Front Porch
Covered Rear Porch
width 17' x depth 6' 5"
52 sq/ft width 5' x depth 10' 6"
42 sq/ft width 7' x depth 6'
width 7' 4" x depth 7'
206 sq/ft width 15' x depth 13' 9"
199 sq/ft width 13' 4" x depth 15'
222 sq/ft width 13' 4" x depth 16' 8"
54 sq/ft width 9' x depth 6'
55 sq/ft width 8' 6" x depth 6' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

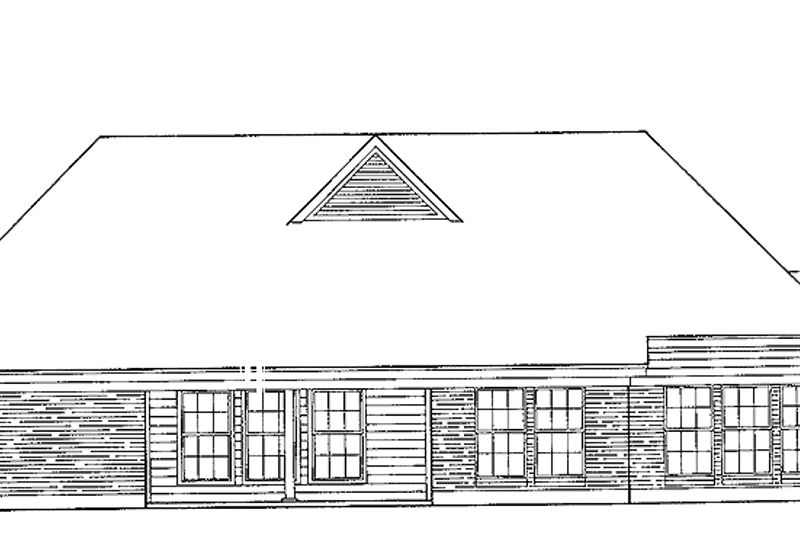

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

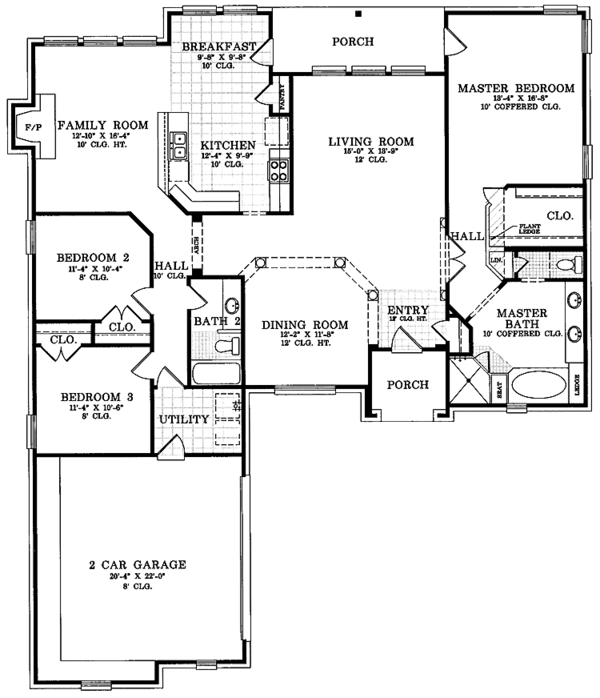

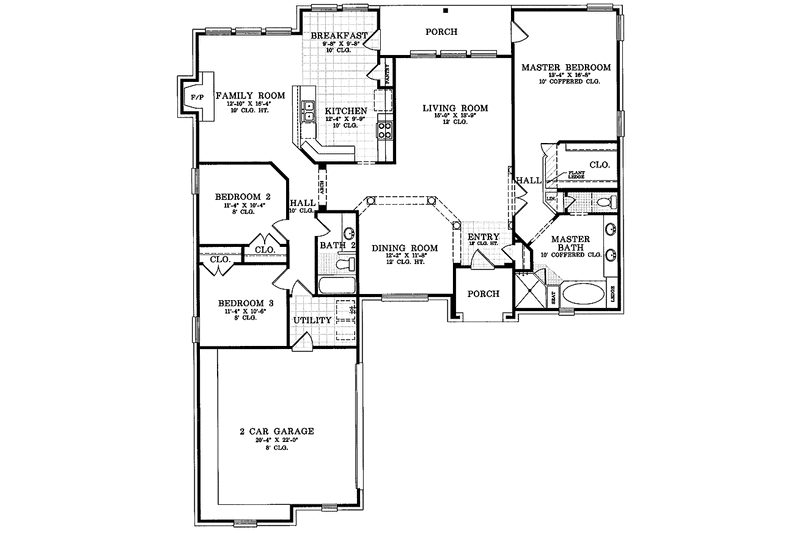

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
