PLAN 17-2421
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
This plan allows you three options for the front; your choice of siding, brick or stone…with siding on the other three sides. You also have a “luxury” master bathroom option depending on your budget. The patio space can be transformed into a sunroom, screened or basic covered porch. Your choice!
Full Specs & Features
Dimension
Depth : 91'
Height : 23' 10"
Width : 34' 8"
Height : 23' 10"
Width : 34' 8"
Area
First Floor: 2119 sq/ft
Garage: 447 sq/ft
Porch: 444 sq/ft
Garage: 447 sq/ft
Porch: 444 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : stick
Roof Load : 45
Roof Type : shingle
Roof Framing : stick
Roof Load : 45
Roof Type : shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding/Stone
Framing : 2"x4"
Insulation : R13
Framing : 2"x4"
Insulation : R13
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Eating Bar
Additional Room Features
Great Room Living Room
Sunroom
Sunroom
Garage Features
Rear Entry Garage
Rear Garage
Rear Garage
Outdoor Spaces
Covered Front Porch
Screened Porch
Screened Porch

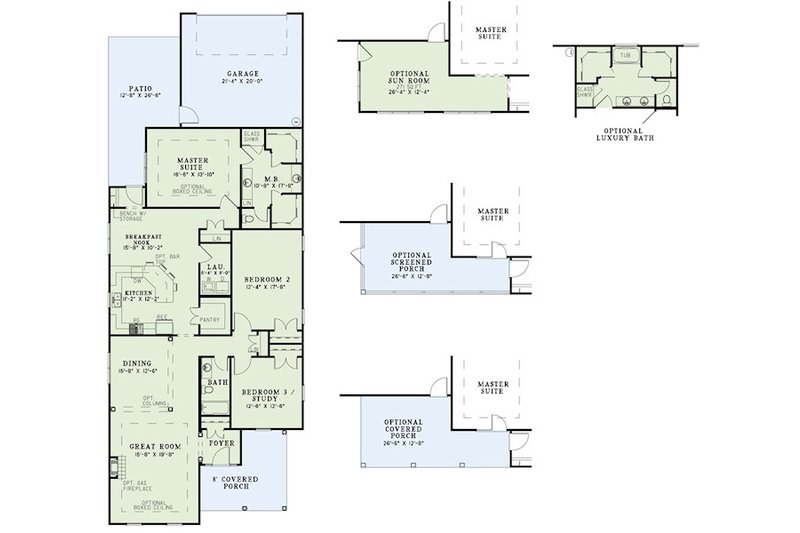

Rooms
Bedroom 2:
217 sq/ft width 12' 4" x depth 17' 8"
Bedroom 3:
156 sq/ft width 12' 6" x depth 12' 6"
Breakfast Nook:
159 sq/ft width 15' 8" x depth 10' 2"
Dining Room:
195 sq/ft width 15' 8" x depth 12' 6"
Garage:
426 sq/ft width 21' 4" x depth 20'
Great Room:
308 sq/ft width 15' 8" x depth 19' 8"
Kitchen:
195 sq/ft width 15' 8" x depth 12' 6"
Laundry Room:
47 sq/ft width 5' 4" x depth 9'
Master Bathroom:
188 sq/ft width 10' 8" x depth 17' 8"
Master Suite:
228 sq/ft width 16' 6" x depth 13' 10"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
