PLAN #17-2490

Key Specs


2131
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

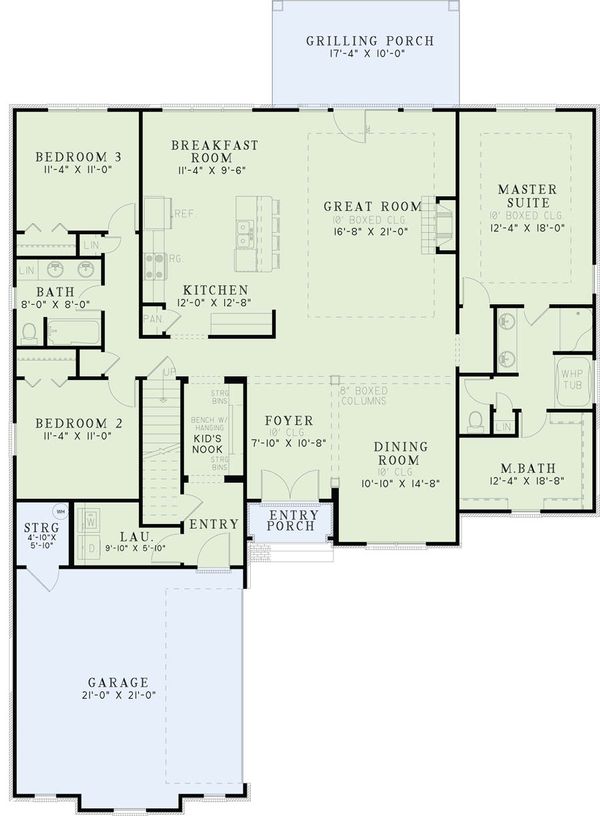

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #17-2490

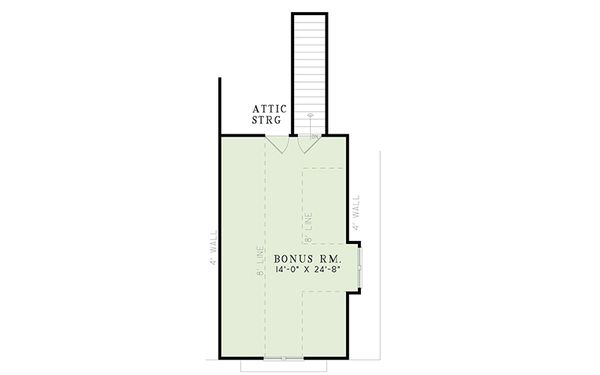

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #17-2490

Full Specs & Features


Dimension
Depth : 75' 2"
Height : 32' 4"
Width : 54'
Area
Bonus: 379 sq/ft
First Floor: 2131 sq/ft height 9'
Garage: 501 sq/ft height 9'
Ceiling
Ceiling Details :
Main Ceiling : 9'
Roof
Roof Framing : Stick
Roof Load : 45
Primary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Insulation : R-13
Exterior Wall Finish : Stone Veneer
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Additional Room Features
Mud Room
Great Room Living Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Rooms

Bath 2:

width 87' x depth 8'

Bedroom 2:

width 11' 4" x depth 11'

Bedroom 3:

width 11' 4" x depth 11'

Bonus:

379 sq/ft width 14' x depth 24' 8"

Breakfast:

width 11' 4" x depth 9' 6"

Dining:

width 10' 10" x depth 14' 8"

Foyer:

width 7' 10" x depth 10' 8"

Garage:

501 sq/ft width 21' x depth 21'

Great Room:

width 16' 8" x depth 21'

Kitchen:

width 12' x depth 12' 8"

Laundry:

width 9' 10" x depth 5' 10"

Master Bath:

width 12' 4" x depth 18' 8"

Master Bedroom:

width 12' 4" x depth 18'

Porch Front:

22 sq/ft

Porch Rear:

174 sq/ft width 17' 4" x depth 10'

Storage:

width 4' 10" x depth 5' 10"

What's Included In This Plan Set


  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.

Plan Set

5 Copy Set :
$990.00
5 printed plan sets mailed to you.
8 Copy Set :
$1080.00
8 printed plan sets mailed to you.
PDF Set :
$1665.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1665.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2560.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$810.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$225.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$225.00
Ideal for sloping lot, lower level of home partially underground.
